Transponder Key Amplifier: Components: Illustration

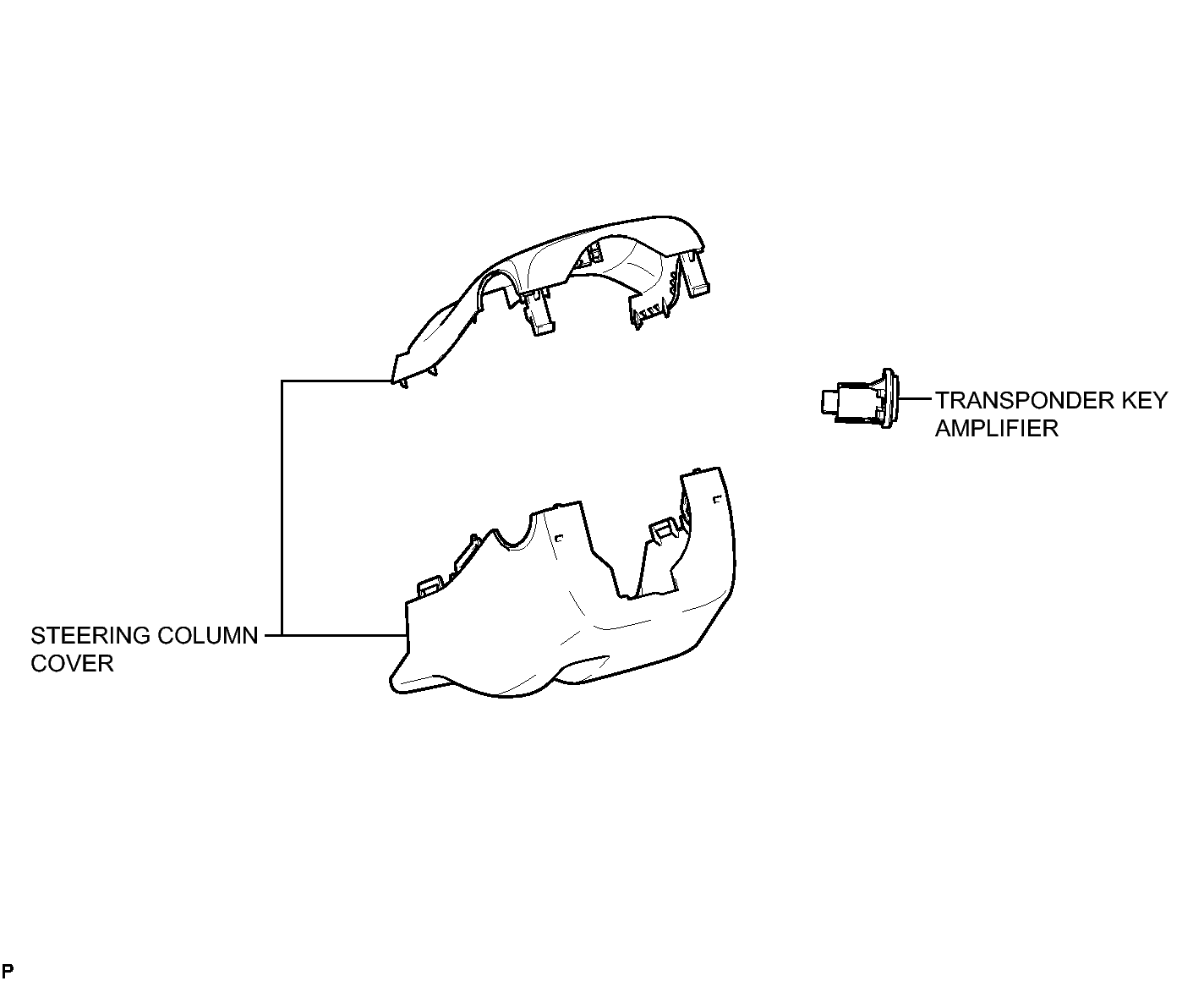

Fig 1: Identifying Transponder Key Amplifier Replacement Components

GTY310842

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
