Accelerator Pedal: Components: Illustration

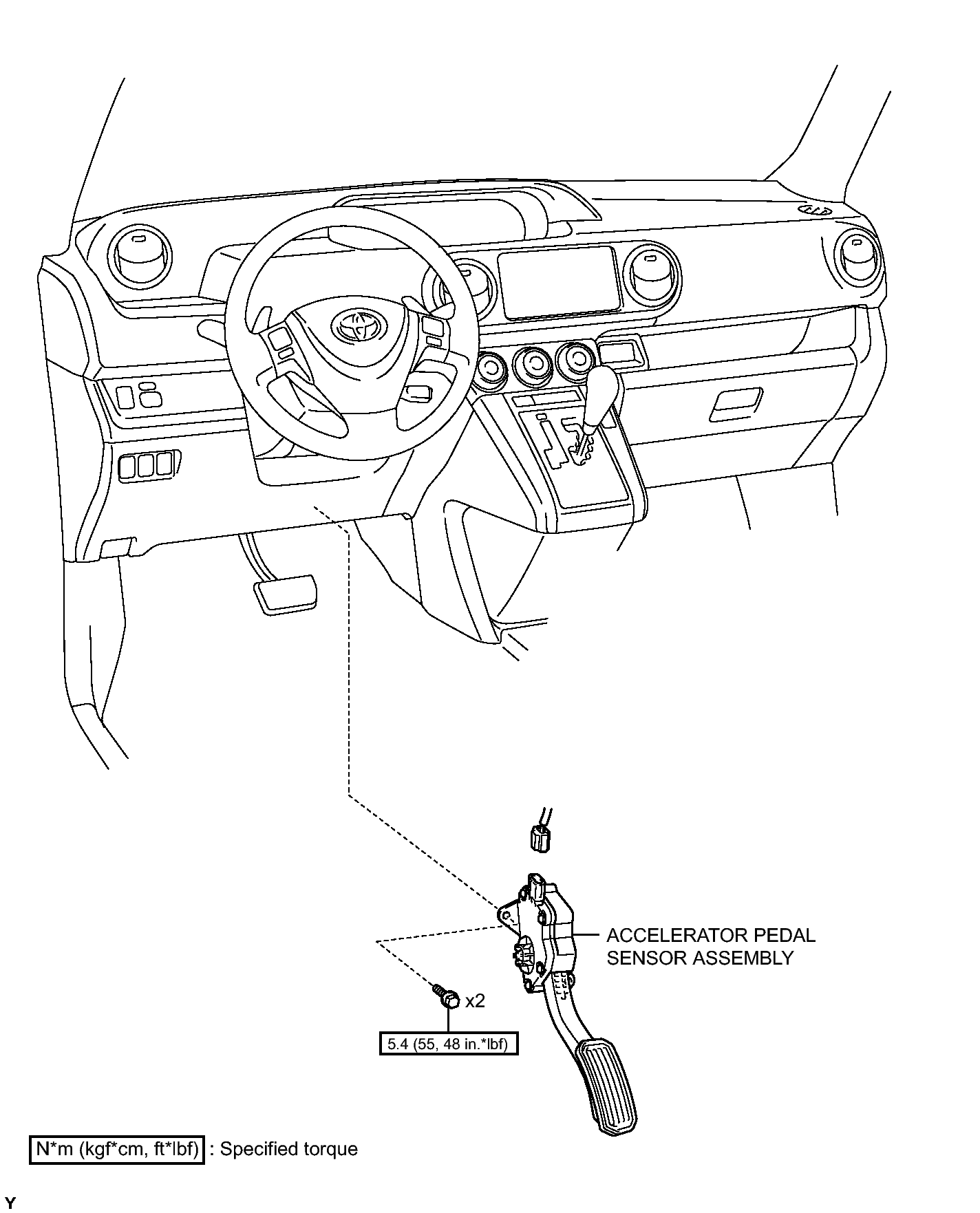

Fig 1: Identifying Accelerator Pedal Sensor Assembly Replacement Components With Torque Specifications

GTY390826

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
