Fuel Sender Gauge Assembly: Installation: Installation

INSTALL FUEL SENDER GAUGE ASSEMBLY
1. Install the fuel sender gauge assembly by sliding it downward.

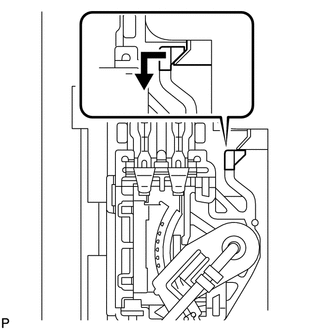

  Fig 1: Installing Fuel Sender Gauge Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 3 harness clamps.
  NOTE:
  Do not damage the wire harness.

  Fig 2: Identifying Fuel Sender Gauge Assembly Connector And Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the harness protector.
4. Connect the fuel sender gauge connector.
INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY
Refer to INSTALLATION .
