Home >> Scion >> 2013 >> xB Automatic Trans >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Rear Wiper and Washer >> Notes

Rear Wiper and Washer: Notes

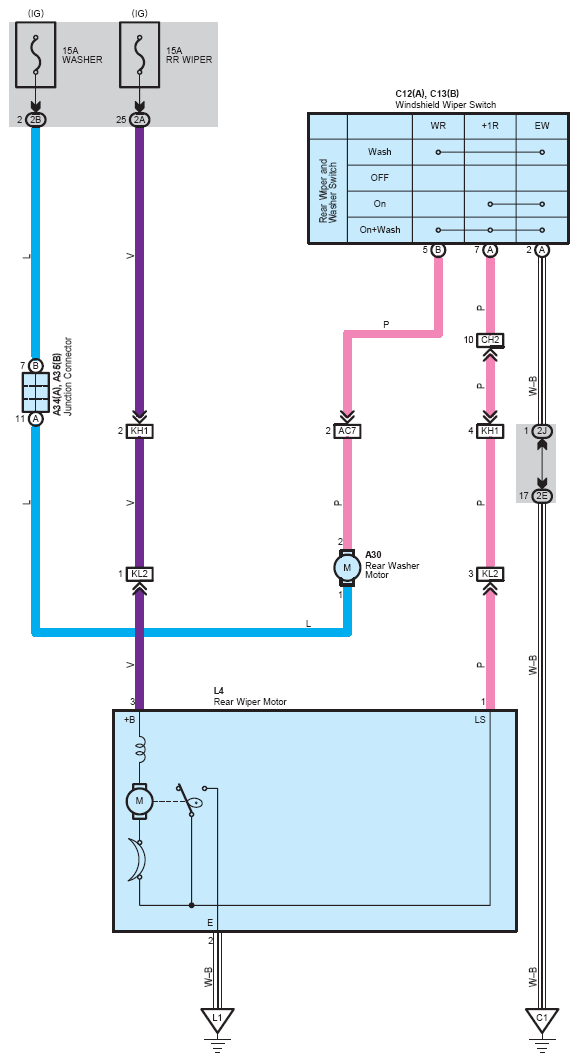

Fig 1: Rear Wiper And Washer - Wiring Diagram
G08776920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
