Front Passenger Side Power Window Switch: Inspection: Inspection
- INSPECT FRONT PASSENGER SIDE POWER WINDOW SWITCH
- Check the resistance.

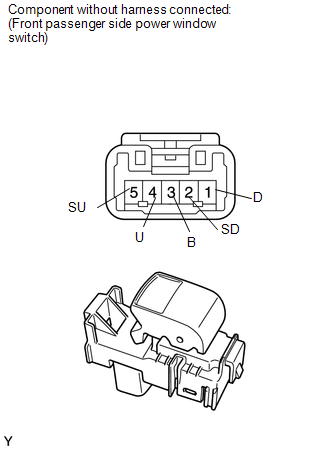

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Switch Connection Specified Condition 1 (D) - 2 (SD)
3 (B) - 4 (U)UP Below 1 Ω 1 (D) - 2 (SD)
4 (U) - 5 (SU)OFF Below 1 Ω 1 (D) - 3 (B)
4 (U) - 5 (SU)DOWN Below 1 Ω If the result is not as specified, replace the power window switch.
- Measure the resistance according to the value(s) in the table below.
- Check the resistance.
