Front Speed Sensor: Installation: Installation

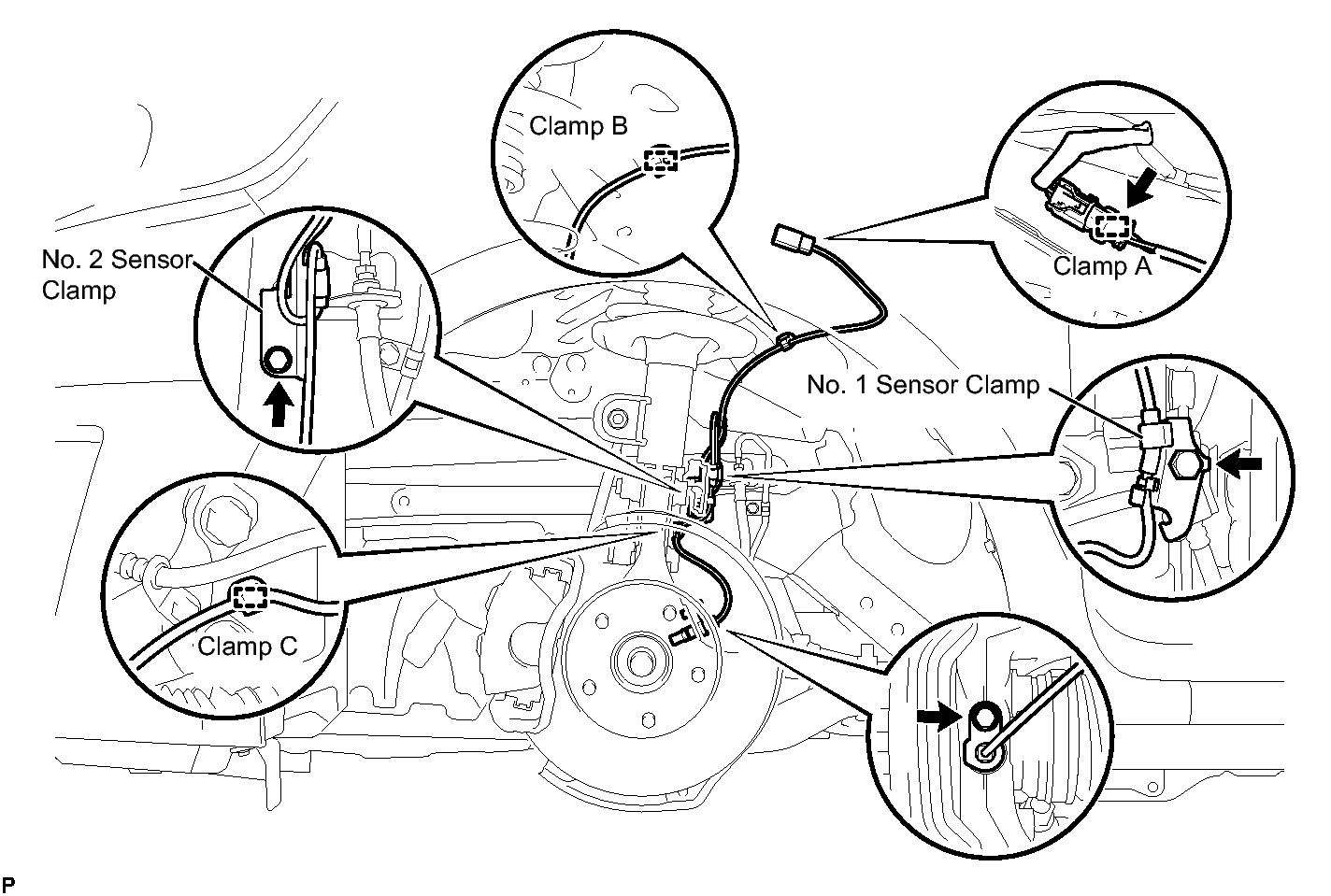

Fig 1: Identifying Front Speed Sensor Clamps And Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the speed sensor onto the steering knuckle with the bolt.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   • Check that the speed sensor tip and installation portion are free of foreign matter.
   • Install the speed sensor without turning it from its original installation angle.
2. Engage clamp C onto the shock absorber.
3. Install the No. 1 sensor clamp onto the shock absorber with the bolt.

   Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

   NOTE:

   The bolt tightens the flexible hose and front speed sensor together. Make sure that the flexible hose is positioned over the front speed sensor.

4. Install the No. 2 sensor clamp onto the body with the bolt.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

5. Engage clamp B onto the body.
6. Connect the speed sensor connector.
7. Engage clamp A onto the body.

Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

Refer to TEST MODE PROCEDURE
