Steering Column Assembly: Removal: Removal

WARNING:

Some of these service operations affect the SRS. Read the precautionary notices concerning the SRS before servicing the steering column. Refer to PRECAUTION .
Be sure to read Precaution thoroughly before servicing. Refer to PRECAUTION .

PLACE FRONT WHEELS FACING STRAIGHT AHEAD
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REMOVE STEERING WHEEL ASSEMBLY
Refer to REMOVAL
REMOVE STEERING COLUMN COVER
NOTE: Removing the steering column cover incorrectly will cause the steering column cover to break.

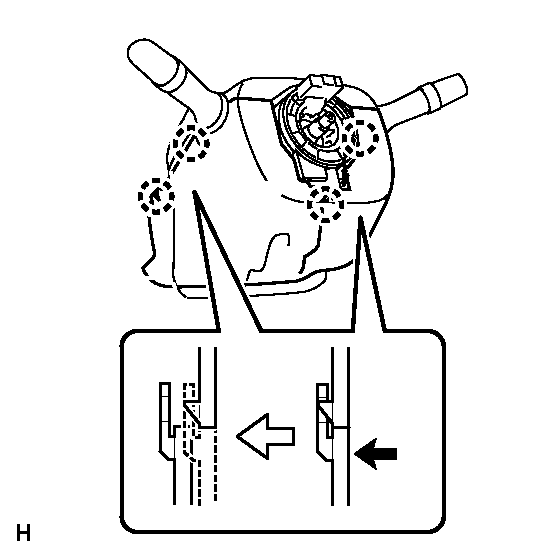

1. Push the right and left sides of the lower cover and detach the 4 claws.

  Fig 1: Identifying Steering Column Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Insert your fingers into the opening of the tilt lever of the lower cover to detach the claw.

  Fig 2: Spreading Claws For Steering Column Lower Cover For Removal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Spread the claw to detach it.

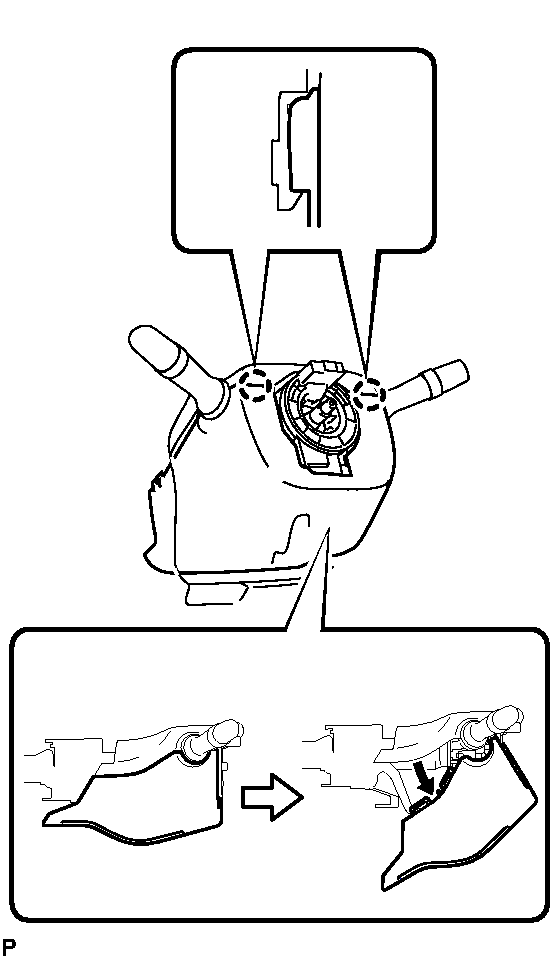

3. Turn the lower cover to detach the 2 claws and remove the lower cover as shown.

  Fig 3: Identifying Steering Column Lower Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

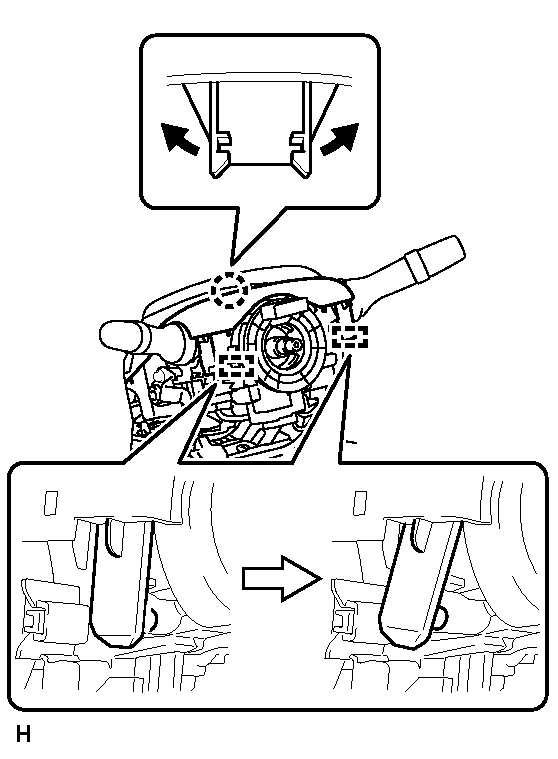

4. Detach the claw and 2 pins and remove the upper cover.

  Fig 4: Identifying Steering Column Upper Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE COMBINATION SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY

Disconnect the connectors from the combination switch assembly with spiral cable sub-assembly.

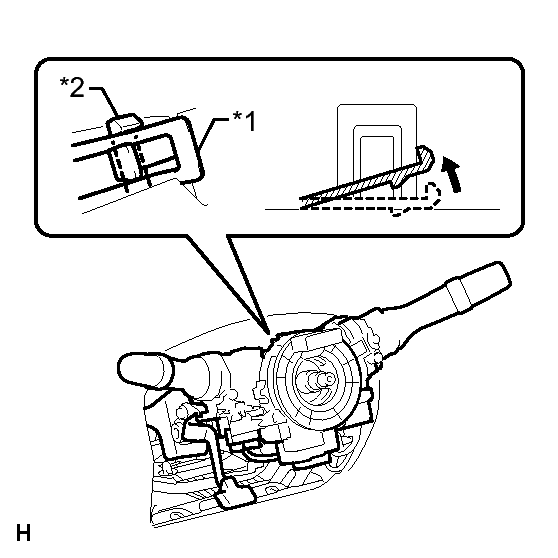

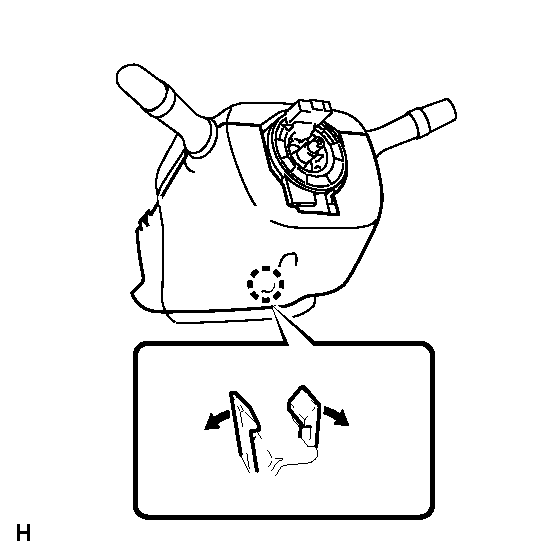

Use pliers to hold the clamp and raise the claw with a screwdriver. Remove the combination switch assembly with spiral cable sub-assembly from the steering column assembly.

Fig 5: Identifying Combination Switch Assembly With Spiral Cable Sub-Assembly

TEXT IN ILLUSTRATION

*1	Clamp
*2	Claw

REMOVE COLUMN HOLE COVER SILENCER SHEET
1. Fold back the floor carpet, and then remove the 2 clips and column hole cover silencer sheet.

  Fig 6: Identifying Column Hole Cover Silencer Sheet Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

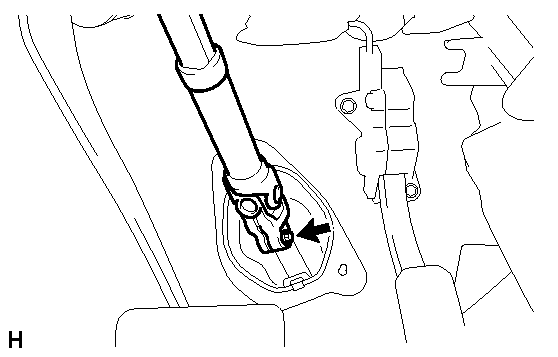

1. Remove the bolt.

  Fig 7: Identifying No. 2 Steering Intermediate Shaft Assembly Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Do not disconnect the No. 2 steering intermediate shaft assembly from the steering intermediate shaft.

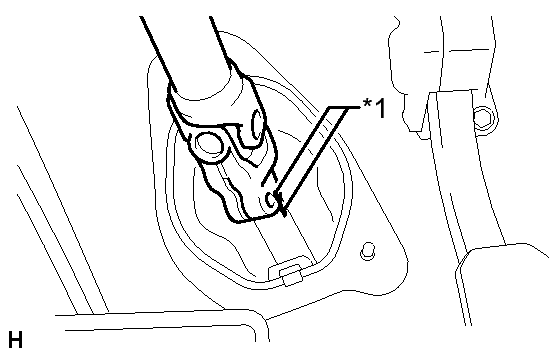

2. Put matchmarks on the No. 2 steering intermediate shaft assembly and steering intermediate shaft.

  Fig 8: Identifying Matchmarks On No. 2 Steering Intermediate Shaft Assembly And Steering Intermediate Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Matchmark
3. Disconnect the No. 2 steering intermediate shaft assembly from the steering intermediate shaft.
REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY
Refer to REMOVAL
REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY . Refer to REMOVAL - Step 3
REMOVE BRAKE PEDAL RETURN SPRING
1. Remove the return spring.
REMOVE STOP LIGHT SWITCH ASSEMBLY . Refer to REMOVAL - Step 1
REMOVE STEERING COLUMN ASSEMBLY
1. Disconnect the connectors and detach the wire harness clamps from the power steering ECU assembly.
2. Detach the wire harness clamps from the steering column assembly.

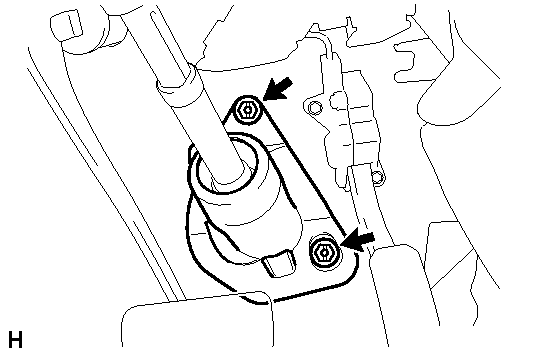

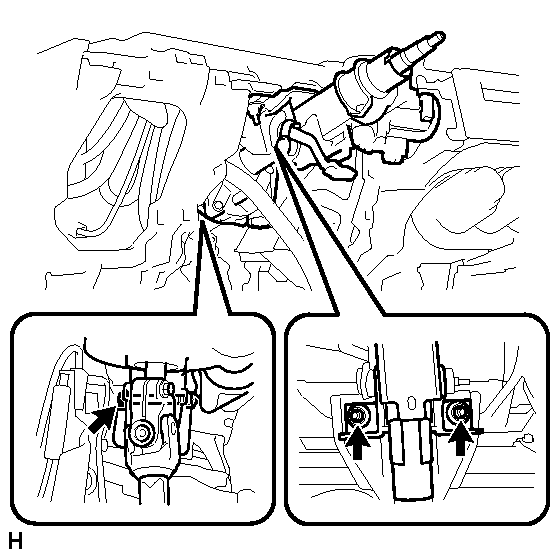

3. Remove the bolt, 2 nuts and steering column assembly.

  Fig 9: Identifying Steering Column Bolts And Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Do not release the tilt lever when the steering column assembly is not installed on the vehicle.
  - Do not drop or strike the steering column assembly. If dropped or struck, replace it with a new one.
REMOVE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

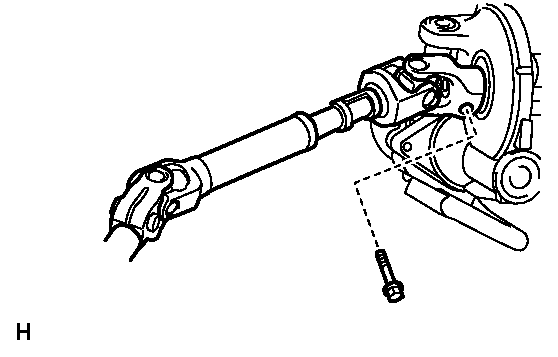

1. Remove the bolt.

  Fig 10: Identifying No. 2 Steering Intermediate Shaft Assembly Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Do not remove the No. 2 steering intermediate shaft assembly from the steering column assembly.

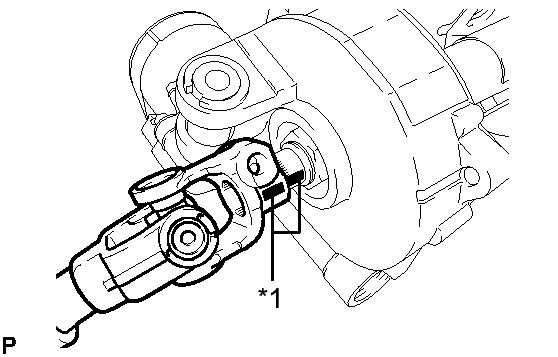

2. Put matchmarks on the No. 2 steering intermediate shaft assembly and steering column assembly.

  Fig 11: Identifying Matchmarks On No. 2 Steering Intermediate Shaft Assembly And Steering Column Assembly.
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Matchmark
3. Remove the No. 2 steering intermediate shaft assembly from the steering column assembly.
