Knock Sensor: Removal: Removal

  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL

  2. REMOVE KNOCK SENSOR
    1. Disconnect the sensor connector.

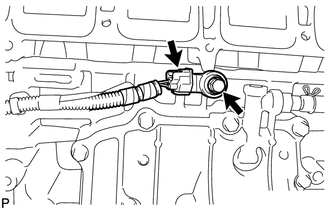

      Fig 1: View Of Knock Sensor And Bolt
      GTY187220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and sensor.
