Headlight (w/o Daytime Running Light): Notes

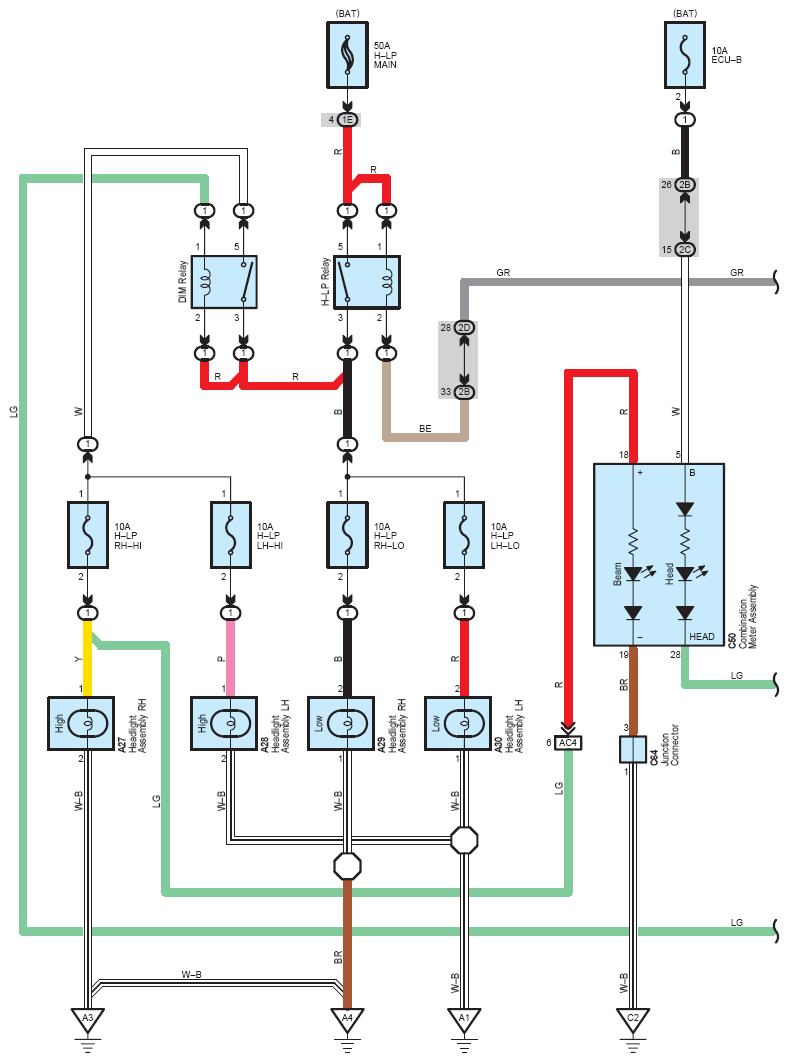

Fig 1: Headlight (W/O Daytime Running Light) - Wiring Diagram (1 Of 2)
G08775098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

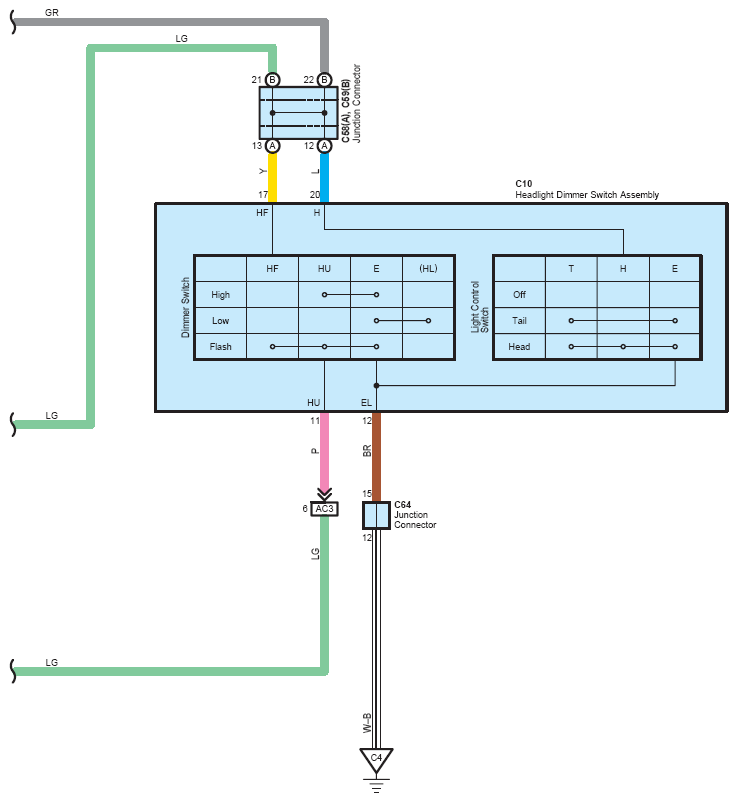

Fig 2: Headlight (W/O Daytime Running Light) - Wiring Diagram (2 Of 2)
G08775099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
