Brake Actuator: Components: Illustration

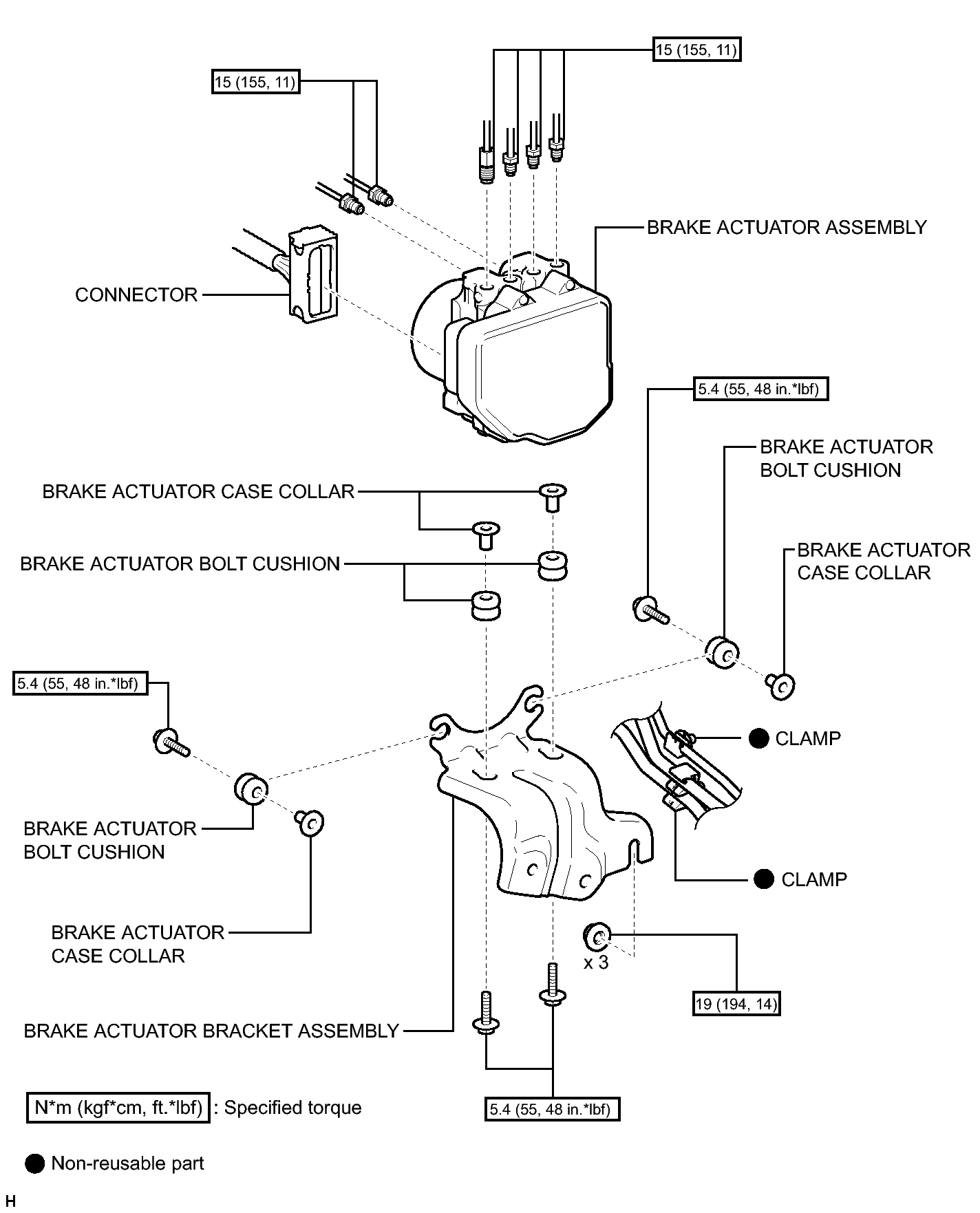

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications

GTY310998

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
