Door Control Switch: Inspection: Inspection

  1. INSPECT DOOR CONTROL SWITCH ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

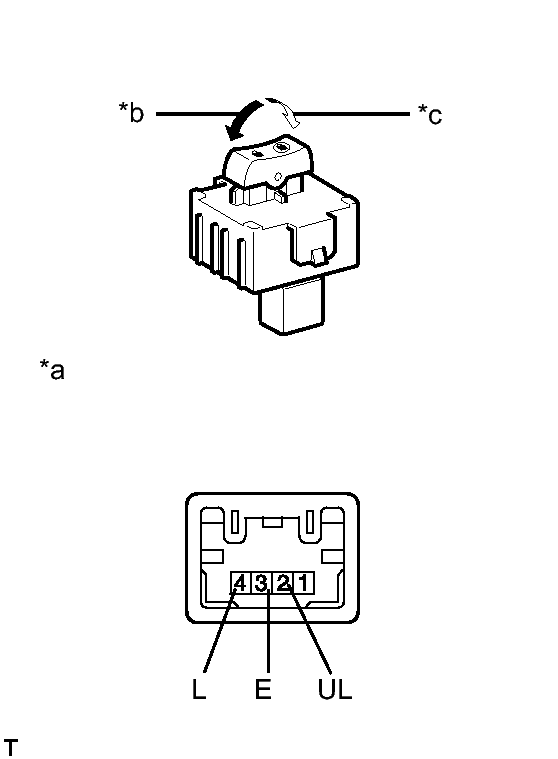

      Fig 1: Identifying Door Control Switch Assembly
      GTY310664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      2 (UL) - 3 (E) Unlock Below 1 Ω
      2 (UL) - 3 (E) Off 10 kΩ or higher
      4 (L) - 3 (E)
      4 (L) - 3 (E) Lock Below 1 Ω
      1. If the result is not as specified, replace the door control switch assembly.
        TEXT IN ILLUSTRATION

        *a Component without harness connected
        (Door Control Switch)
        *b Unlock
        *c Lock
