Back Door Lock: Components: Illustration

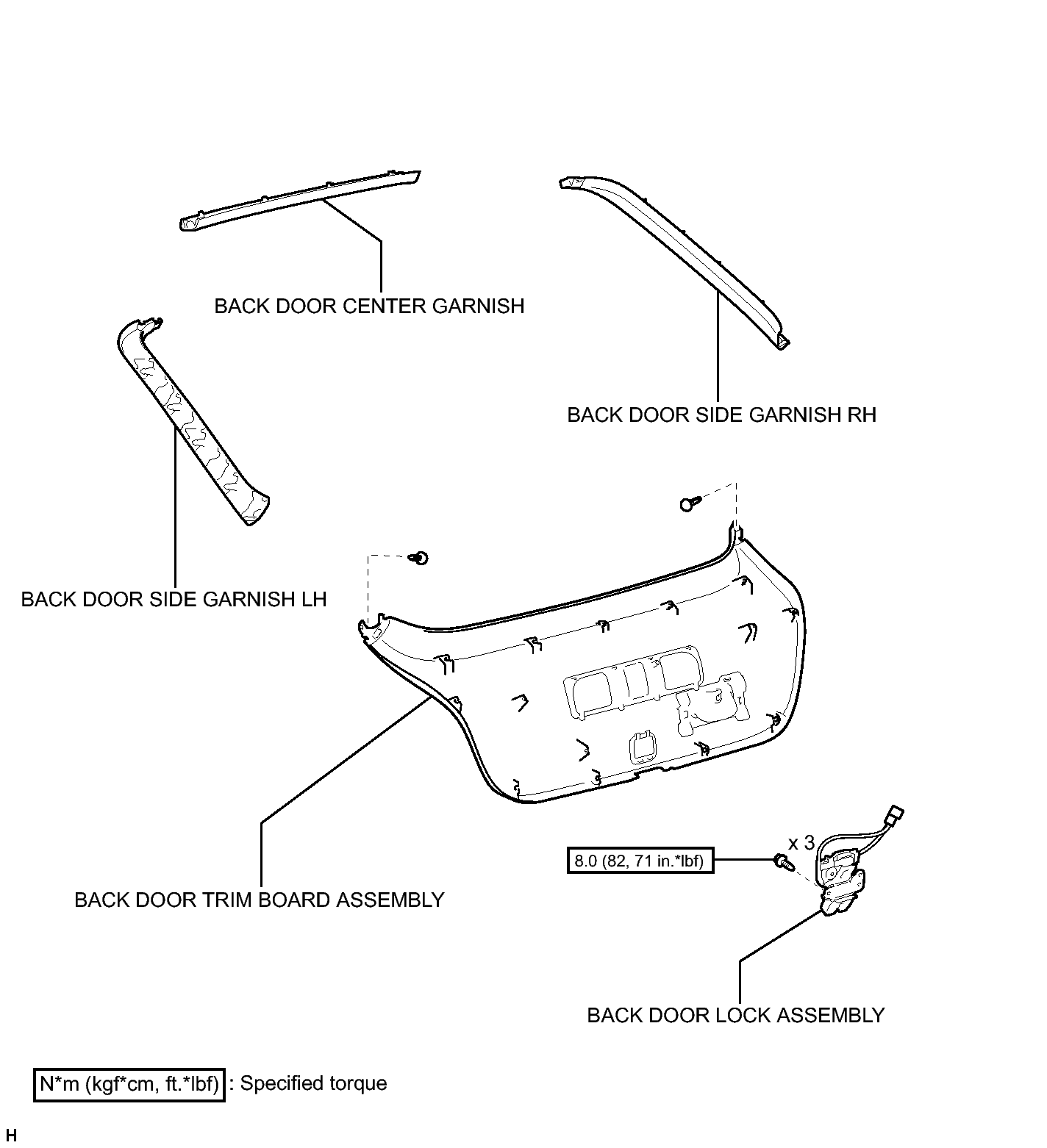

Fig 1: Identifying Back Door Lock Replacement Components With Torque Specifications

GTY311353

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
