Parts Location: Illustration

WARNING: This page is about a different variant/trim than selected.

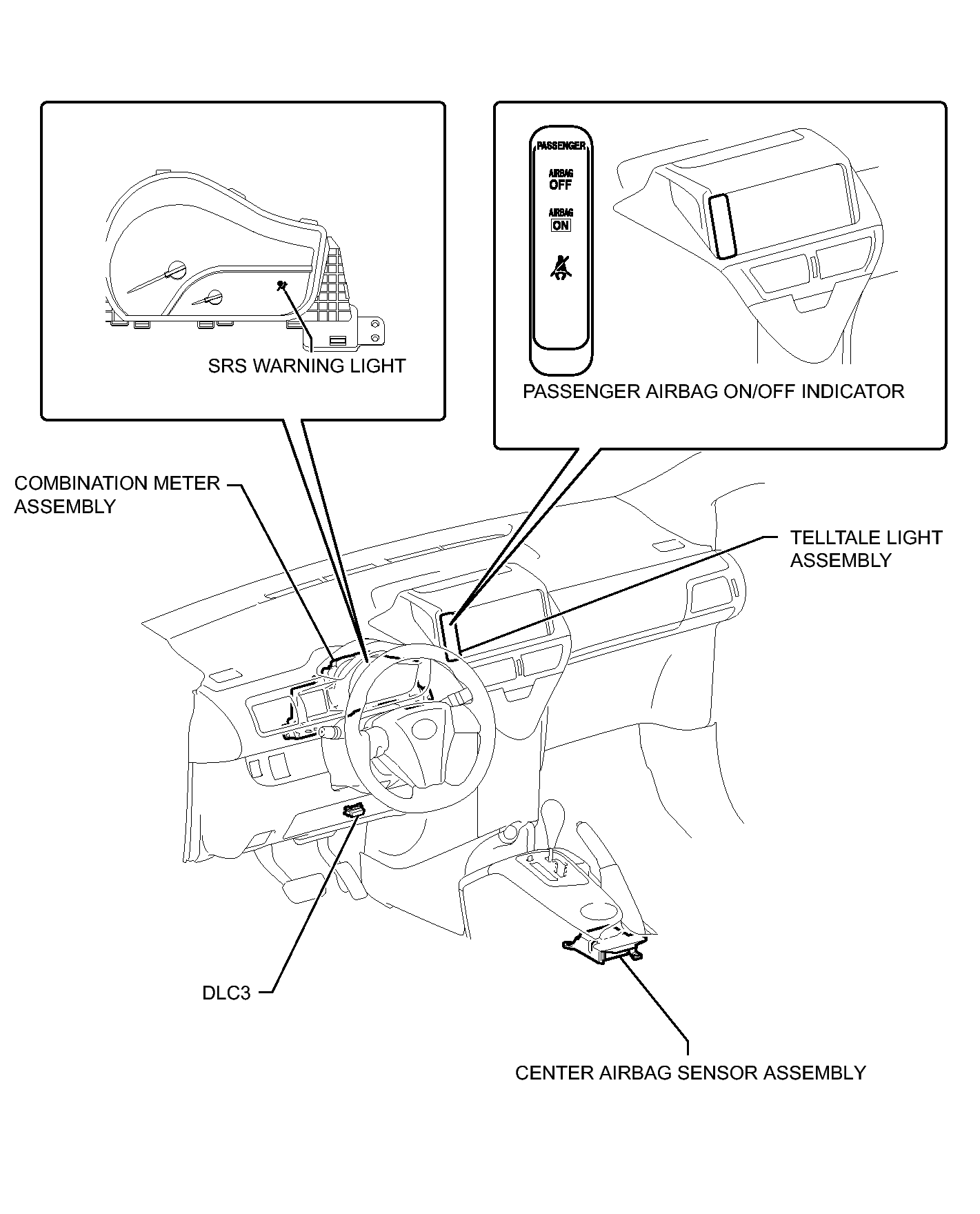

Fig 1: Identifying Occupant Classification System Components Location (1 Of 2)
GTY387337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

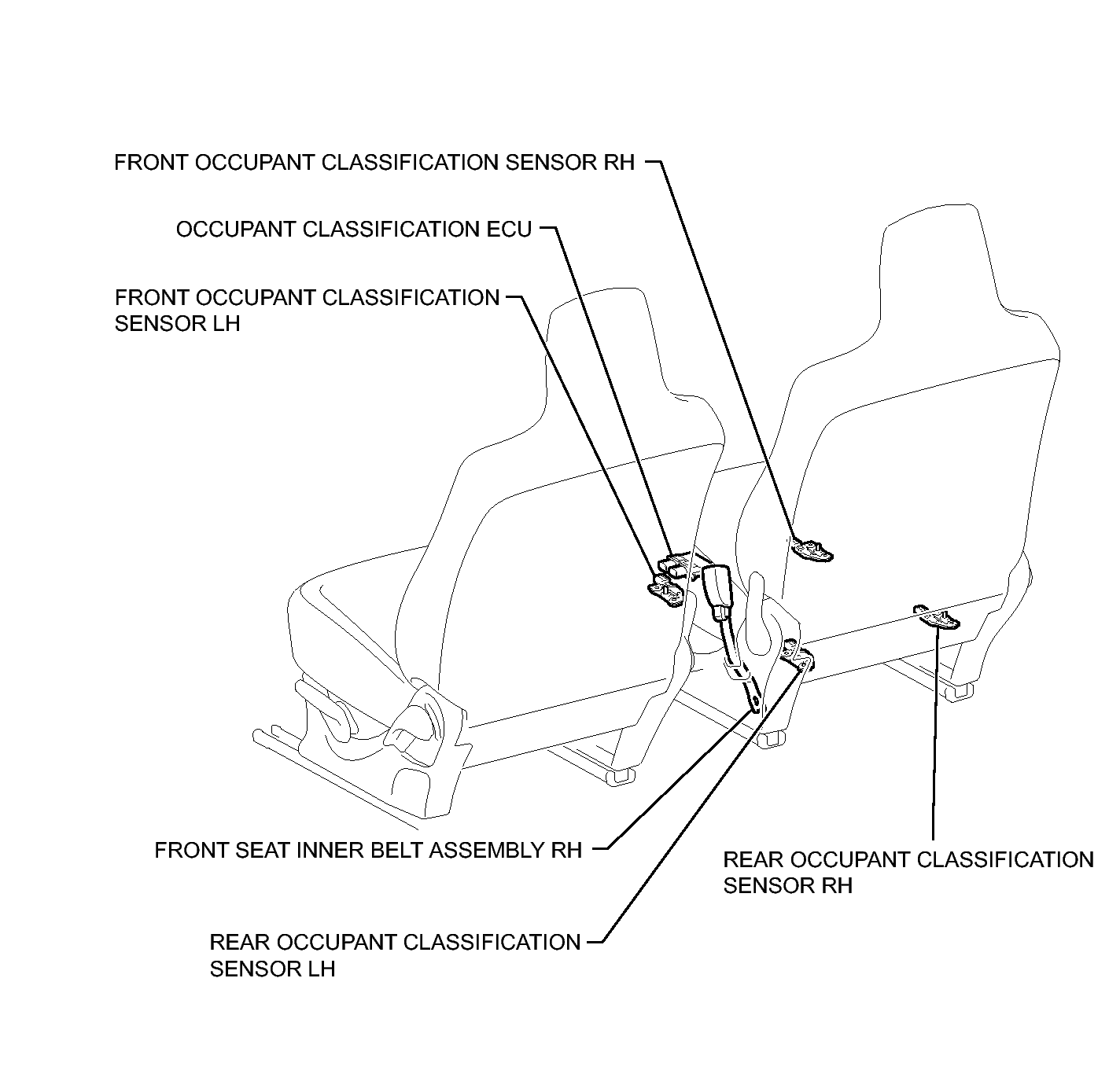

Fig 1: Identifying Occupant Classification System Components Location (2 Of 2)
GTY346648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
