Power Source Mode does not Change to ON (IG): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

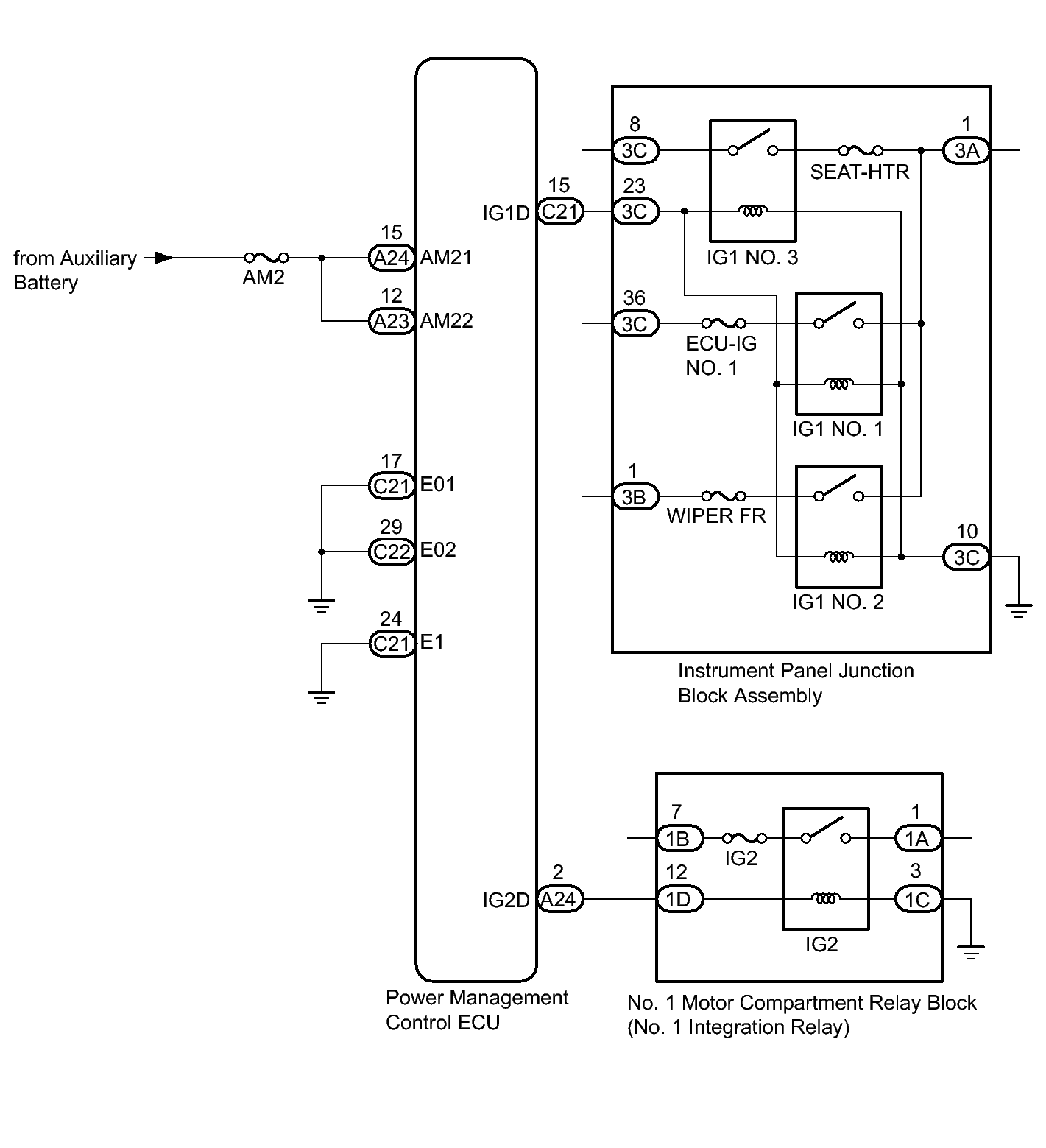

Fig 1: Power Source Wiring Diagram
GTY390918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
