Section 84 (Smart Key System (Start Function) (Diagnostic Codes & Symptom Tests) (Electric))
>>
SMART KEY SYSTEM (for Start Function)
>>
DTC U0293: EV ECU Communication
>>
Wiring Diagram
DTC U0293: EV ECU Communication: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

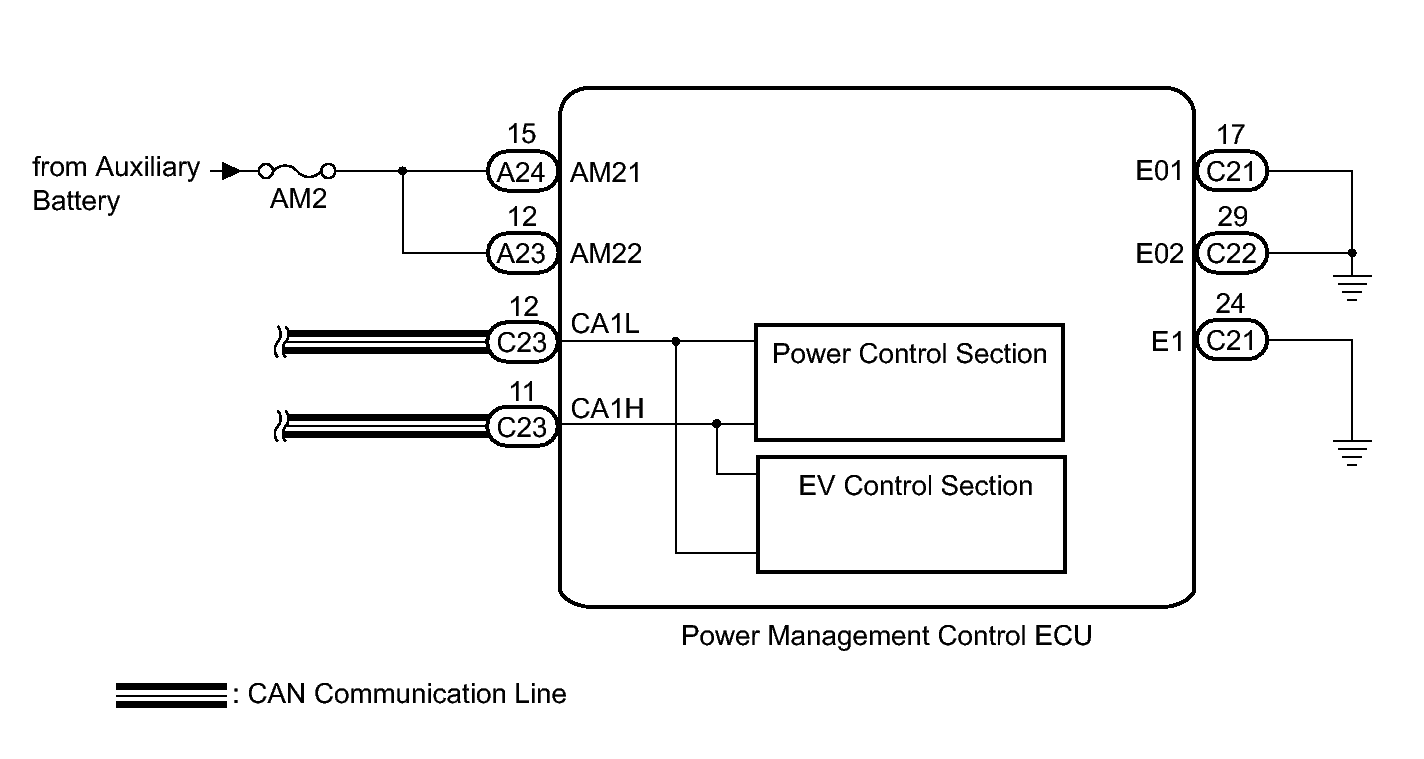

Fig 1: EV ECU Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
