DTC B2285: Steering Lock Position Signal Circuit Malfunction: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

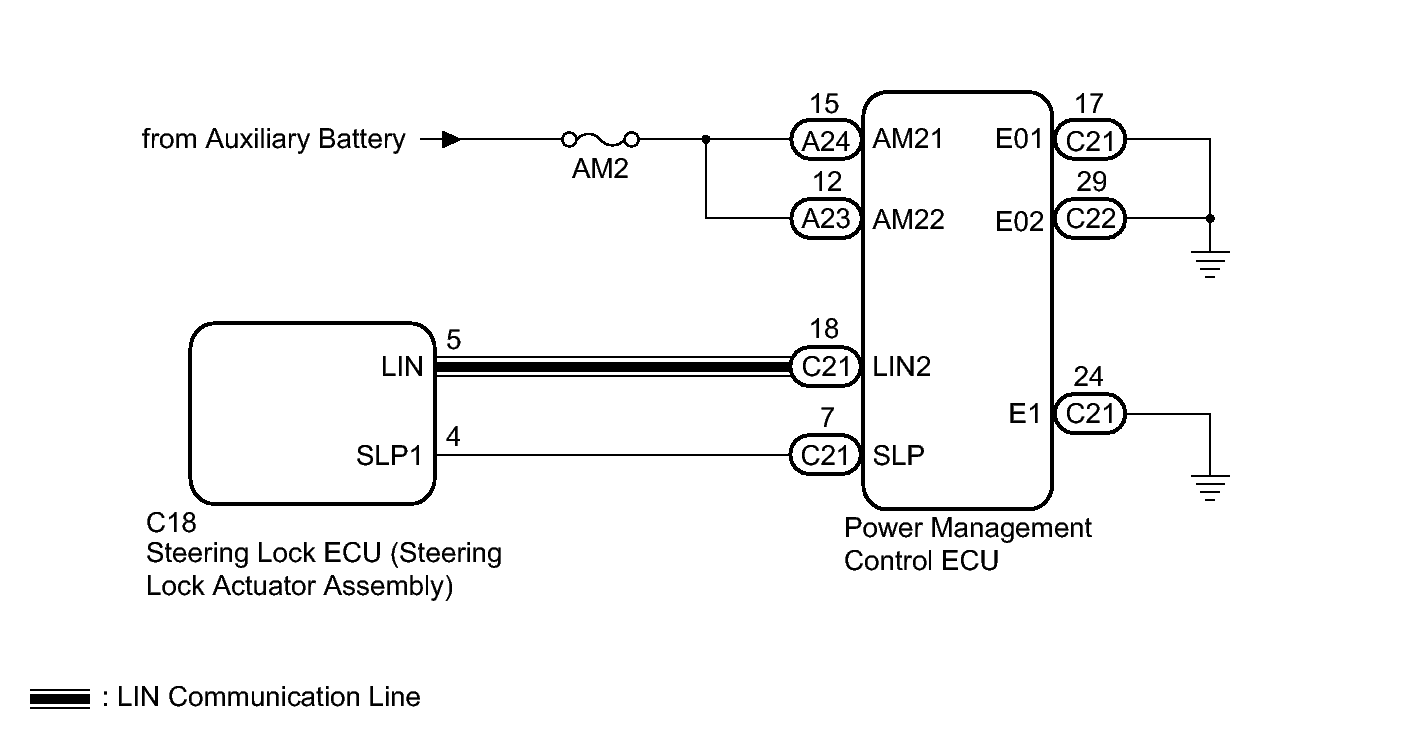

Fig 1: Steering Lock Position Signal Wiring Diagram
GTY385512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
