DTC B2275: STSW Monitor Malfunction: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

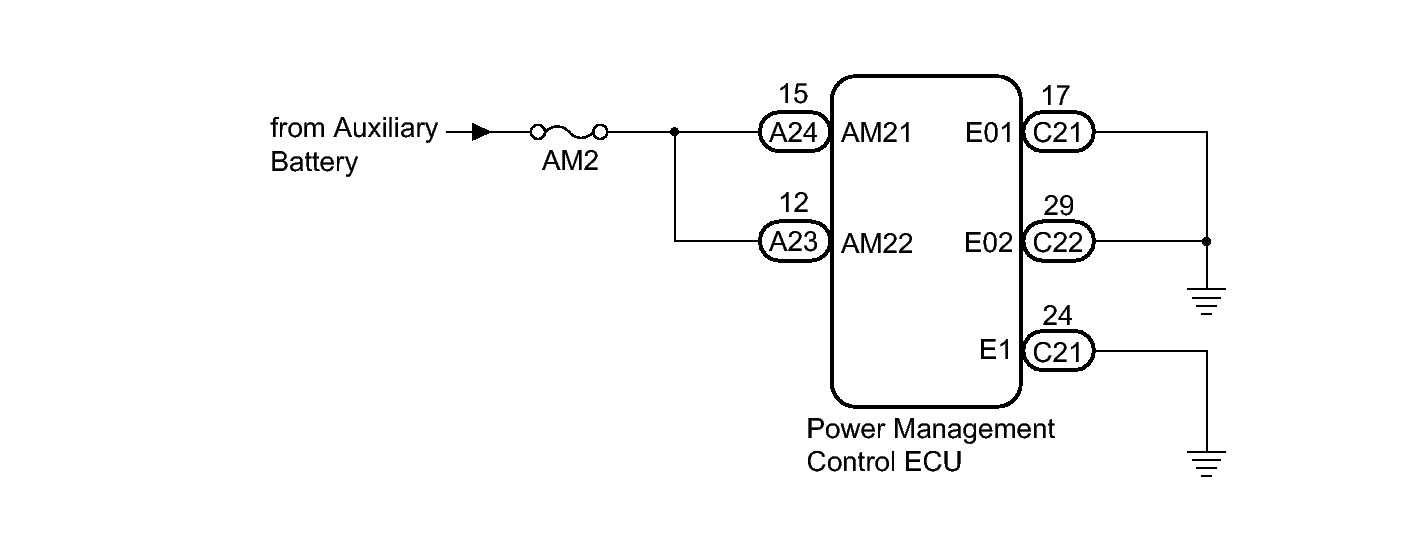

Fig 1: STSW Monitor Wiring Diagram
GTY391816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
