Room Oscillator does not Recognize Key: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

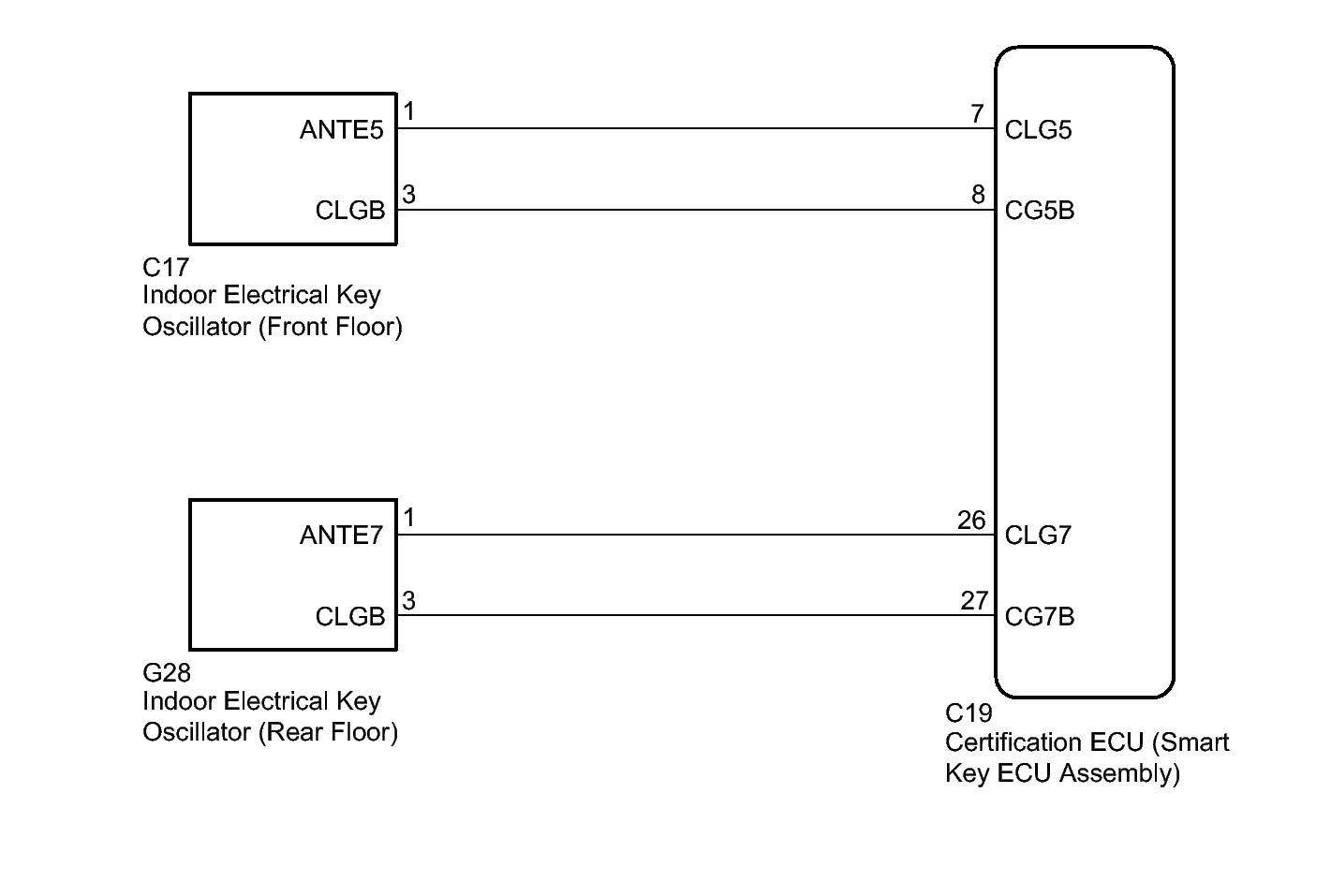

Fig 1: Room Oscillator Wiring Diagram
GTY389512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
