Room Oscillator does not Recognize Key: Procedure

1. Check that the entry lock and unlock functions operate for each door. Refer to OPERATION CHECK .

   OK

   Entry lock and unlock functions operate normally.

NG → See step   15

OK: Go to next step

1. Remove the transmitter battery of the electrical key transmitter sub-assembly. Refer to REMOVAL .
2. With the brake pedal depressed, hold the electrical key transmitter sub-assembly touch the power switch while facing the logo side of the electrical key transmitter sub-assembly to the power switch.
   Fig 1: Identifying Logo Side Of The Electrical Key Transmitter Sub-Assembly Held To Power Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. When operating the power switch, check whether the EV control system starts.

   HINT:

   • When the electrical key transmitter sub-assembly cannot be verified even though it is inside the detection area, the EV control system start check can be performed by removing the transmitter battery from the electrical key transmitter sub-assembly and holding the electrical key transmitter sub-assembly near the power switch.
   • If the EV control system cannot be started when performing this inspection, the certification ECU (smart key ECU assembly), steering lock ECU (steering lock actuator assembly) may be malfunctioning.

   OK

   EV control system starts.

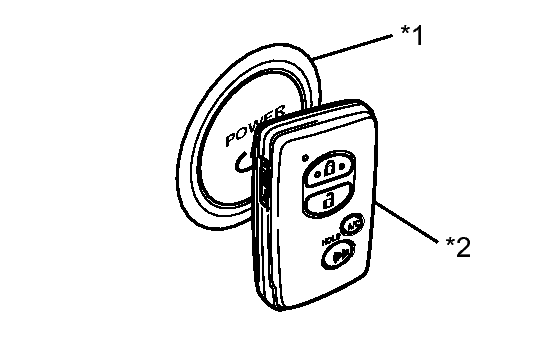

   TEXT IN ILLUSTRATION



   *1	Power Switch
   *2	Electrical Key Transmitter Sub-assembly

NG → See step   14

OK: Go to next step

1. Install the transmitter battery to the electrical key transmitter sub-assembly. Refer to INSTALLATION .
2. Bring the electrical key transmitter sub-assembly near the indoor electrical key oscillator (front floor), and check that the EV control system can be started.
   NOTE:

   If the key is brought within 0.2 m (0.656 ft.) of the indoor electrical key oscillator (front floor), communication is not possible.

3. Bring the electrical key transmitter sub-assembly near the indoor electrical key oscillator (rear floor), and check that the EV control system can be started*.
   • *: If the customize setting for Ignition Available Area is not set to All, the EV control system will not start. Before performing this inspection, check that All has been selected. Refer to CUSTOMIZE PARAMETERS .
   NOTE:

   If the key is brought within 0.2 m (0.656 ft.) of the indoor electrical key oscillator (rear floor), communication is not possible.

   HINT:

   • As the effect of wave interference decreases by moving the electrical key transmitter sub-assembly close to the door control receiver, it may be possible to check whether wave interference is the cause of the problem.
   • If the problem only occurs in specific places or at specific times, wave interference may be the cause of the problem. Also, the vehicle may be have the effects of wave interference with the parts installed by the dealer. As a result, when parts have been installed by the dealer, it may be necessary to remove those parts before inspecting the vehicle.
   • There may be wave interference if the vehicle is near broadcasting antennas, large video displays, wireless garage door opener systems, wireless security cameras, home security systems, etc. In this case, move the vehicle to a different location and check if there is any improvement.
   • If a tool for checking electric waves, such as a signal strength meter, is available, move around the area while observing both the LF band (used by the vehicle antenna to form the detection area) and RF band (used by the electrical key transmitter sub-assembly for transmission) to check for locations where there is wave interference.

   OK

   The EV control system starts.

NG → See step   4

OK → AFFECTED BY WAVE INTERFERENCE

1. Check the following antennas in the key diagnostic mode. Refer to OPERATION CHECK .
   1. Check the indoor electrical key oscillator (front floor).

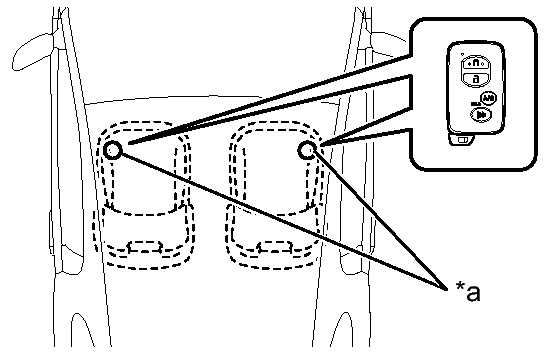

      Fig 2: Identifying Indoor Electrical Key Oscillator (Front Floor) Inspection Points

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *a	Inspection point

      When the electrical key transmitter sub-assembly is at the inspection point, check that the wireless door lock buzzer sounds.

   2. Check the indoor electrical key oscillator (rear floor).

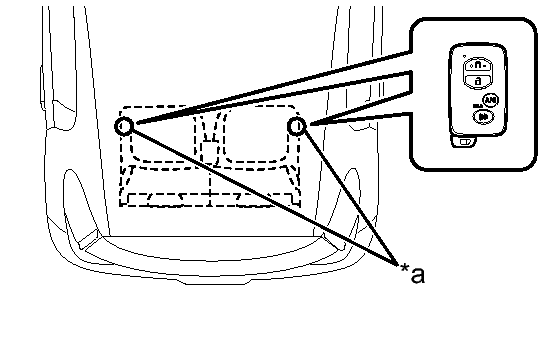

      Fig 3: Identifying Indoor Electrical Key Oscillator (Rear Floor) Inspection Points

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *a	Inspection point

      When the electrical key transmitter sub-assembly is at the inspection point, check that the wireless door lock buzzer sounds.

      HINT:

      • If the buzzer sounds, it can be determined that the vehicle interior transmitters are operating normally.
      • It is possible to check which indoor electrical key oscillator (front floor or rear floor) is operating by the sounding of the buzzer.
      • If the buzzer does not sound for any indoor electrical key oscillators, the certification ECU (smart key ECU assembly) circuit may have a malfunction.
      RESULT



      Result	Proceed to
      Front side operation fails	A
      Rear side operation fails	B
      Front and rear operation checks are normal	C

B → See step   9

C → See step   16

A: Go to next step

1. Disconnect the C19 certification ECU (smart key ECU assembly) connector.
2. Disconnect the C17 indoor electrical key oscillator (front floor) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   C19-7 (CLG5) - C17-1 (ANTE5)	Always	Below 1 Ω
   C19-8 (CG5B) - C17-3 (CLGB)	Always	Below 1 Ω
   C19-7 (CLG5) or C17-1 (ANTE5) - Body ground	Always	10 kΩ or higher
   C19-8 (CG5B) or C17-3 (CLGB) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Connect the C19 certification ECU (smart key ECU assembly) connector.

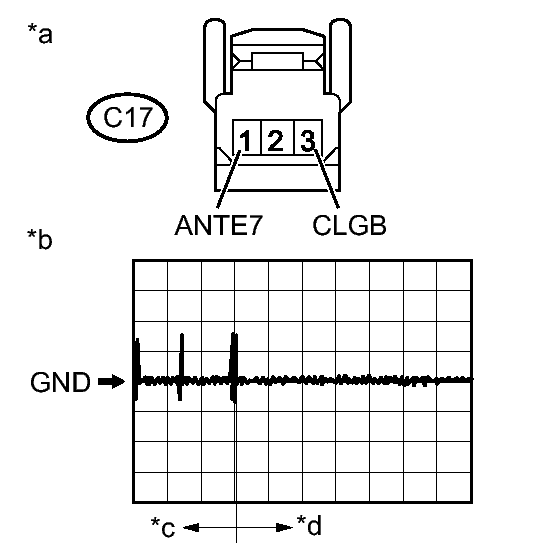

   Fig 4: Identifying No. 1 Electrical Key Antenna (Front Floor) Connector Terminals With Waveform

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using an oscilloscope, check the waveform.

   OK

   Tester Connection	Condition	Tool Setting	Specified Condition
   C17-1 (ANTE5) - C17-2 (CLGB)	Procedure: Power switch off Electrical key transmitter sub-assembly not inside vehicle Door is open Door is closed Within 30 seconds	2 V/DIV., 500 ms/DIV.	Pulse generation (See waveform)

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Indoor Electrical Key Oscillator - Front Floor)
   *b	Waveform
   *c	Door open
   *d	After approximately 30 seconds from when the door is closed

NG → See step   13

OK: Go to next step

1. Temporarily replace the indoor electrical key oscillator (front floor) with a new or normally functioning one. Refer to REMOVAL .

NEXT: Go to next step

1. Check the following antenna in the key diagnostic mode. Refer to OPERATION CHECK .
   1. Check the indoor electrical key oscillator (front floor).
      Fig 5: Identifying Indoor Electrical Key Oscillator (Front Floor) Inspection Points

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *a	Inspection point

      When the electrical key transmitter sub-assembly is at the inspection point, check that the wireless door lock buzzer sounds.

      OK

      Wireless door lock buzzer sounds.

NG → See step   17

OK → END (INDOOR ELECTRICAL KEY OSCILLATOR (FRONT FLOOR) WAS DEFECTIVE)

1. Disconnect the C19 certification ECU (smart key ECU assembly) connector.
2. Disconnect the G28 indoor electrical key oscillator (rear floor) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   C19-26 (CLG7) - G28-1 (ANTE7)	Always	Below 1 Ω
   C19-27 (CG7B) - G28-3 (CLGB)	Always	Below 1 Ω
   C19-26 (CLG7) or G28-1 (ANTE7) - Body ground	Always	10 kΩ or higher
   C19-27 (CG7B) or G28-3 (CLGB) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Connect the C19 certification ECU (smart key ECU assembly) connector.

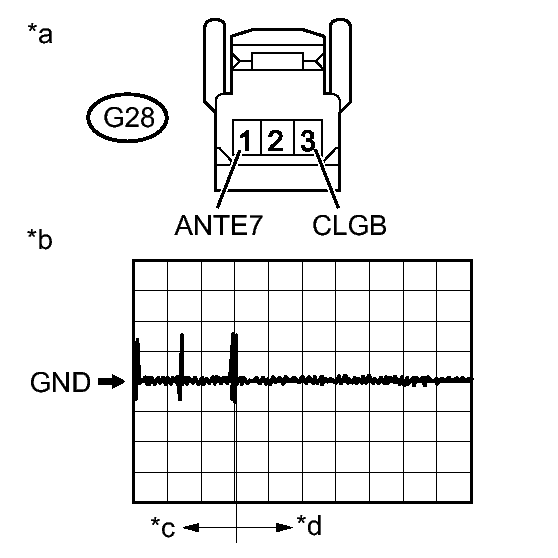

   Fig 6: Identifying Indoor Electrical Key Oscillator (Rear Floor) Connector Terminals With Waveform

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using an oscilloscope, check the waveform.

   OK

   Tester Connection	Condition	Tool Setting	Specified Condition
   G28-1 (ANTE7) - G28-3 (CLGB)	Procedure: Power switch off Electrical key transmitter sub-assembly not inside vehicle Door is open Door is closed Within 30 seconds	2 V/DIV., 500 ms/DIV.	Pulse generation (See waveform)

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Indoor Electrical Key Oscillator - Rear Floor)
   *b	Waveform
   *c	Door open
   *d	After approximately 30 seconds from when the door is closed

NG → See step   18

OK: Go to next step

1. Temporarily replace the indoor electrical key oscillator (rear floor) with a new or normally functioning one. Refer to REMOVAL .

NEXT: Go to next step

1. Check the following antenna in the key diagnostic mode. Refer to OPERATION CHECK .
   1. Check the indoor electrical key oscillator (rear floor).
      Fig 7: Identifying Indoor Electrical Key Oscillator (Rear Floor) Inspection Points

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *a	Inspection point

      When the electrical key transmitter sub-assembly is at the inspection point, check that the wireless door lock buzzer sounds.

      OK

      Wireless door lock buzzer sounds.

NG → See step   19

OK → END (INDOOR ELECTRICAL KEY OSCILLATOR (REAR FLOOR) WAS DEFECTIVE)
