Driver Side Door Entry Lock and Unlock Functions do not Operate: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

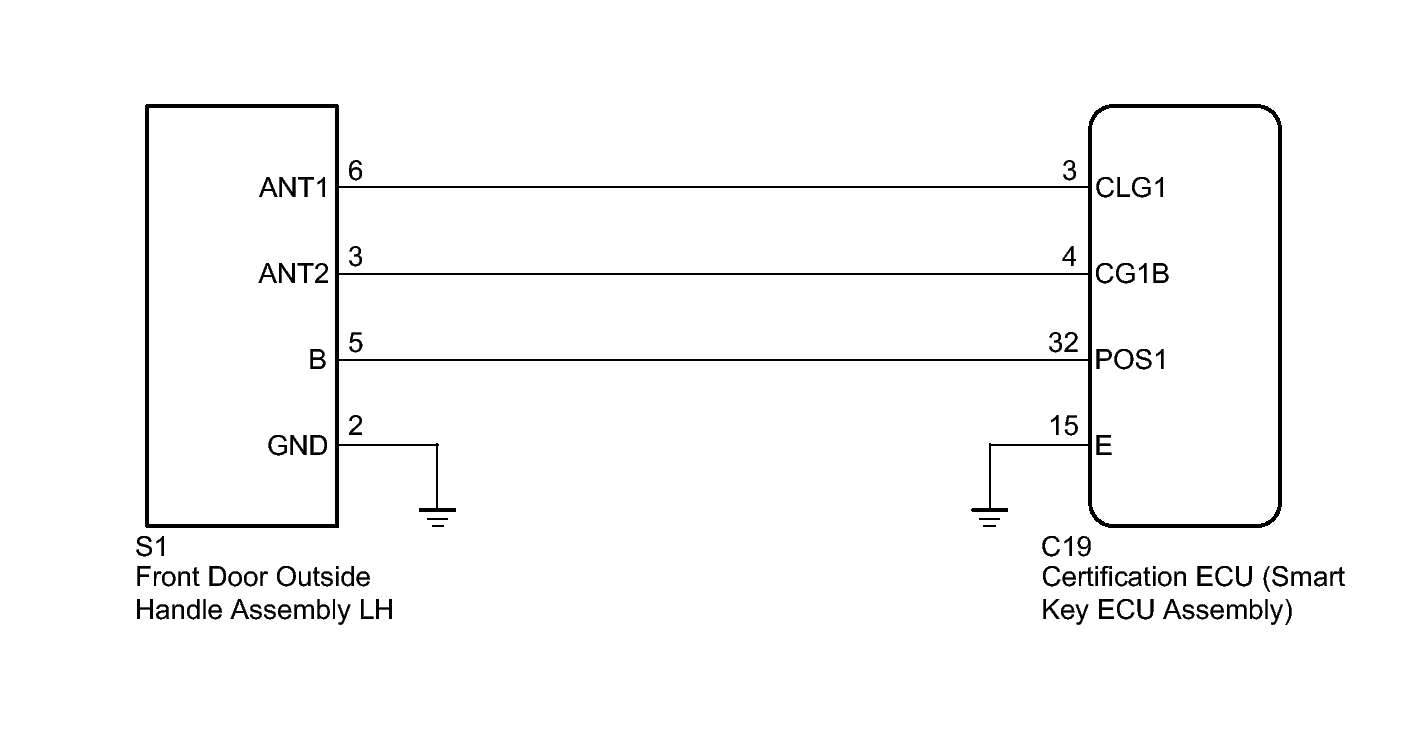

Fig 1: Driver Side Door Wiring Diagram
GTY388147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
