Back Door Entry Unlock Function does not Operate: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

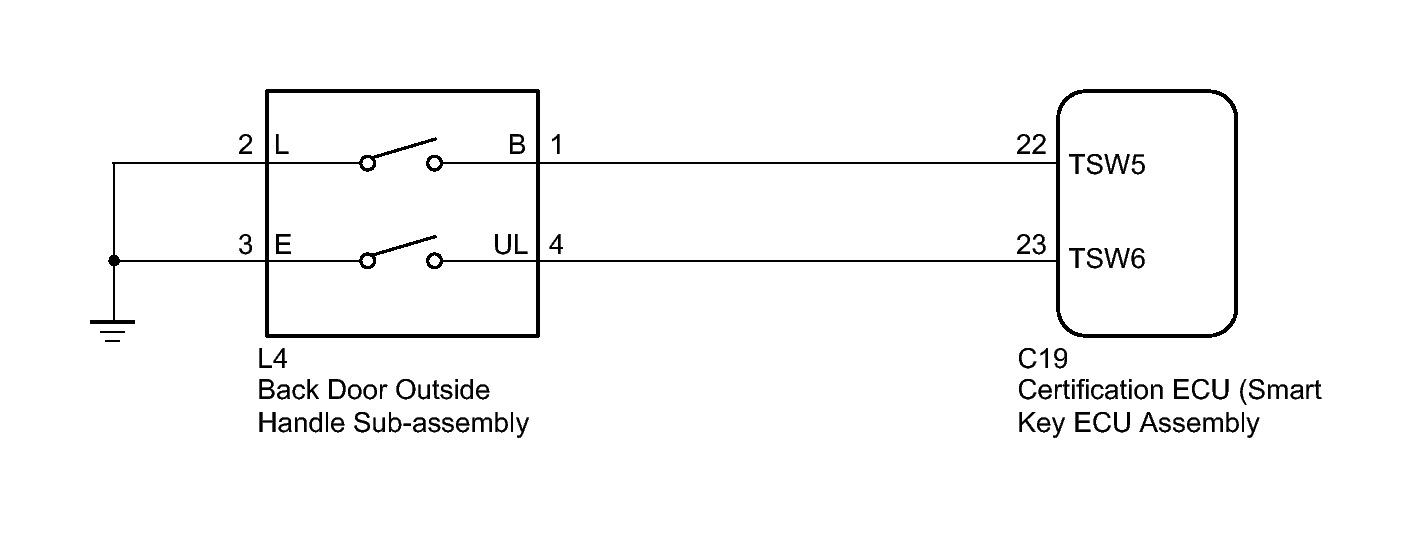

Fig 1: Back Door Wiring Diagram
GTY388529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
