Throttle Body: Installation: Installation

INSTALL THROTTLE WITH MOTOR BODY ASSEMBLY
1. Install a new gasket onto the upper intake manifold sub-assembly.
2. Temporarily install the throttle with motor body assembly onto the upper intake manifold sub-assembly with the 4 bolts.

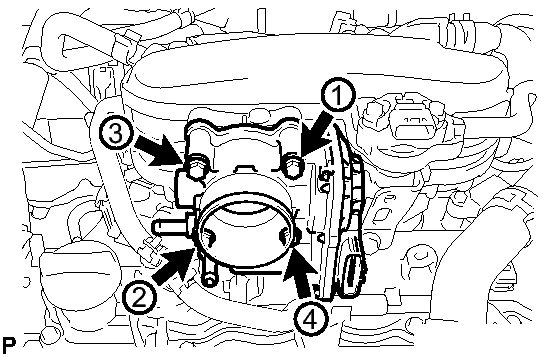

  Fig 1: Identifying Throttle Body Assembly Bolt Tightening Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  If a component has been dropped or subjected to a strong impact, replace it.
3. Tighten the 4 bolts in the order shown in the illustration.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
4. Connect the connector of the throttle with motor body assembly.

CONNECT WATER BY-PASS HOSE ASSEMBLY

Connect the water by-pass hose assembly to the throttle with motor body assembly with the hose clamp.

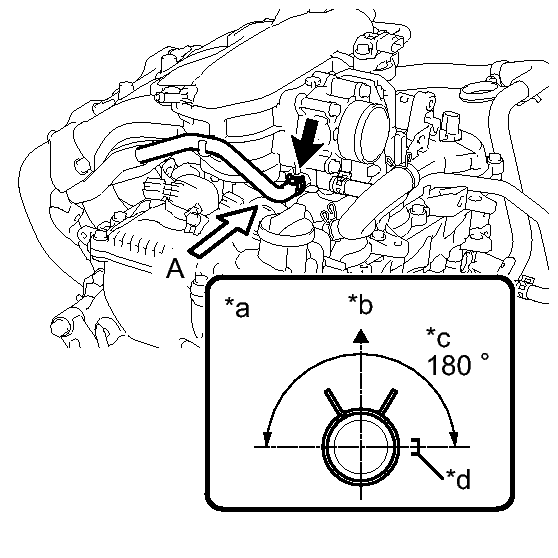

Fig 2: Connecting Water By-Pass Hose Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	View A
*b	Upper
*c	Clip center installation range
*d	Paint mark of the hose

HINT:

Line up the rib of the throttle with motor body assembly with the center of the paint mark.
Perform the installation with the hose clamp and mark at the correct angle.

CONNECT NO. 2 WATER BY-PASS HOSE

Connect the No. 2 water by-pass hose to the throttle with motor body assembly with the hose clamp.

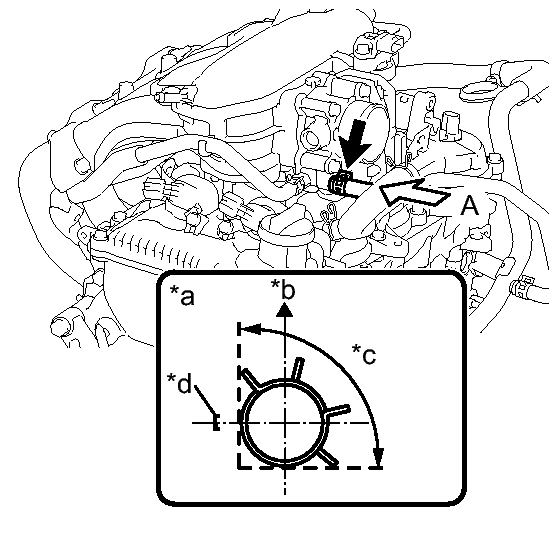

Fig 3: Connecting Water By-Pass Hose

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	View A
*b	Upper
*c	Clip installation range
*d	Paint mark of the hose

HINT:

Line up the rib of the throttle with motor body assembly with the center of the paint mark.
Perform the installation with the hose clamp and mark at the correct angle.

CONNECT NO. 1 AIR CLEANER HOSE

Connect the No. 1 air cleaner hose to the throttle with motor body assembly with the hose clamp.

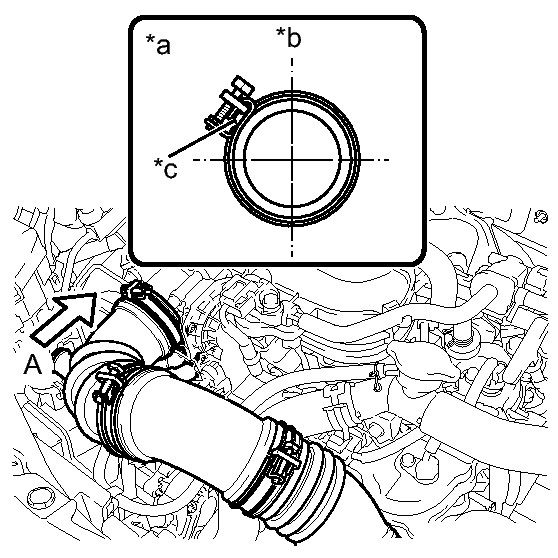

Fig 4: Connecting Air Cleaner Hose

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	View A
*b	Upper
*c	Tab

Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)

HINT:

Install the clamp positioned against the air cleaner hose assembly tab as shown in the illustration.

Connect the No. 2 ventilation hose to the cylinder head cover sub-assembly with the hose clamp.
HINT:

The protrusion of the cylinder head cover sub-assembly should overlap the paint mark of the hose.

ADD ENGINE COOLANT . Refer to REPLACEMENT - Step 2
INSPECT FOR COOLANT LEAK . Refer to ON-VEHICLE INSPECTION - Step 1

PERFORM INITIALIZATION

NOTE:

Perform the following procedure after replacing the throttle with motor body assembly or any throttle with motor body assembly components. The following procedure should also be performed if the throttle with motor body assembly is cleaned.

Turn the ignition switch to ON without operating the accelerator pedal.
NOTE:
If the accelerator pedal is operated, perform the above step again.
Connect the Techstream to the DLC3 and clear the DTCs. Refer to DTC CHECK / CLEAR .
Perform the "Inspection After Repairs". Refer to INITIALIZATION .

Start the engine and check that the MIL is not illuminated and that the idle speed is within the specified range when the A/C is switched off after the engine is warmed up.

Standard

Condition	Engine Idle Speed
A/C switched off	650 to 750 RPM

HINT:

Be sure to perform this step with all accessories off.
Make sure that the shift lever is in neutral.
Following a warm start (engine coolant temperature is 95°C or higher, and intake air temperature is 75°C or higher), the engine speed will be 1000 RPM for 4 to 5 minutes. When 4 to 5 minutes have elapsed after engine start, the engine speed will decrease from 1000 RPM to the standard idling speed over a period of about 3 minutes.

Enter the following menus: Powertrain / Engine and ECT / Data List / Throttle Sensor Position.
Fully depress the accelerator pedal and check that the value is 60% or more.
Perform a road test and confirm that there are no abnormalities.
