DTC B1794: Open in Occupant Classification ECU Battery Positive Line: Wiring Diagram

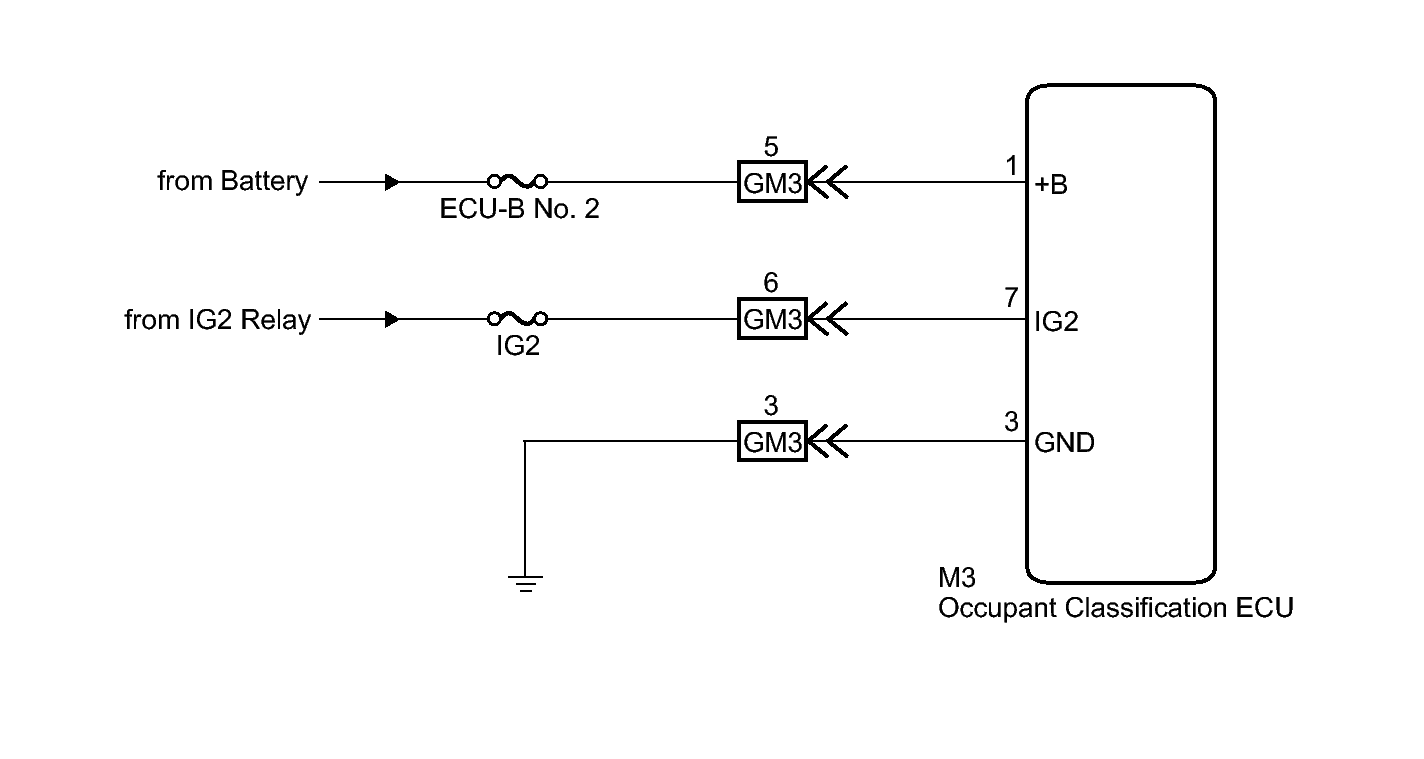

Fig 1: Occupant Classification ECU Power Source - Wiring Diagram

GTY390486

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
