DTC B1793: Occupant Classification Sensor Power Supply Circuit Malfunction: Wiring Diagram

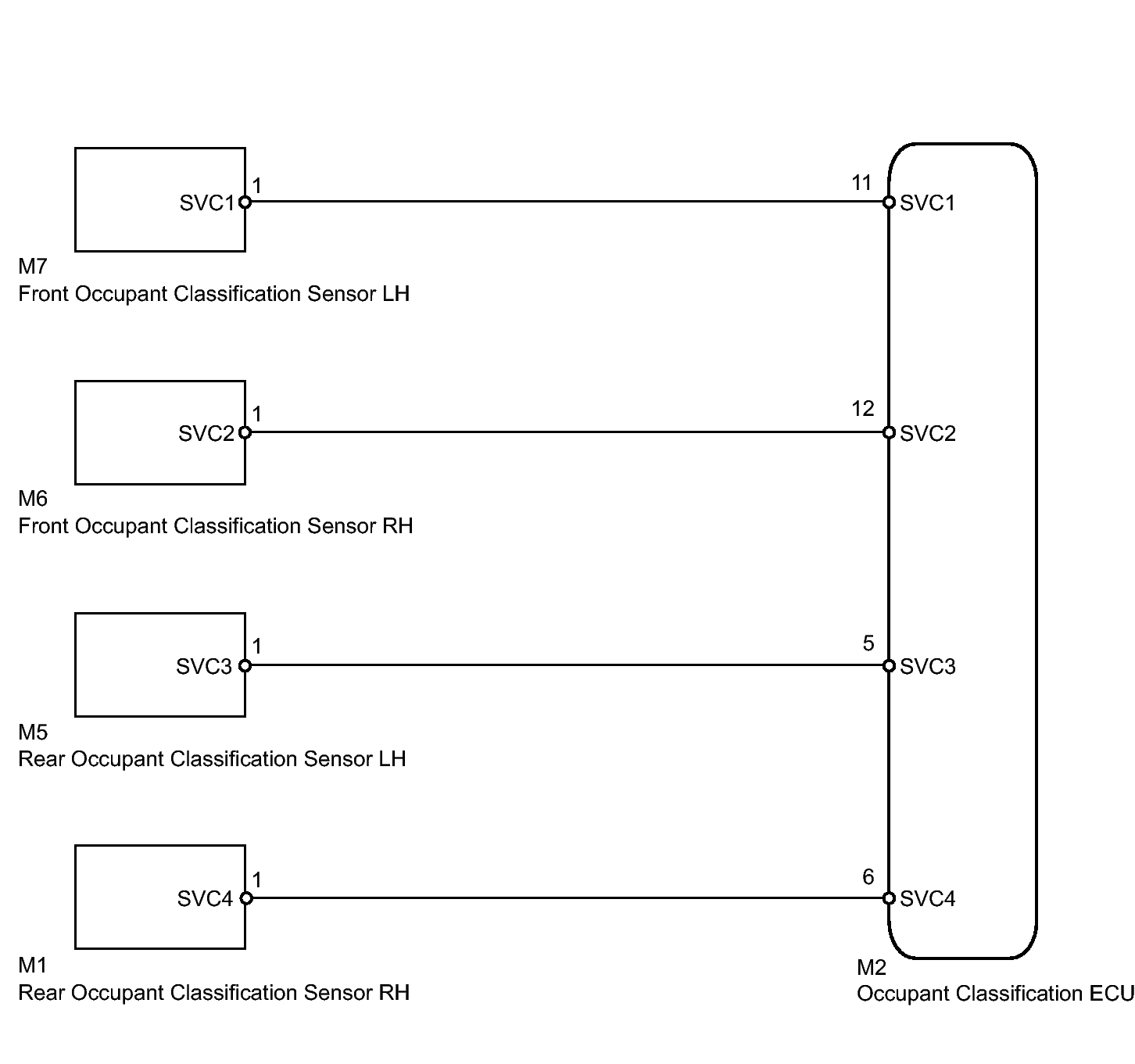

Fig 1: Rear Occupant Classification Sensor - Wiring Diagram

GTY344562

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
