VC Output Circuit: Wiring Diagram

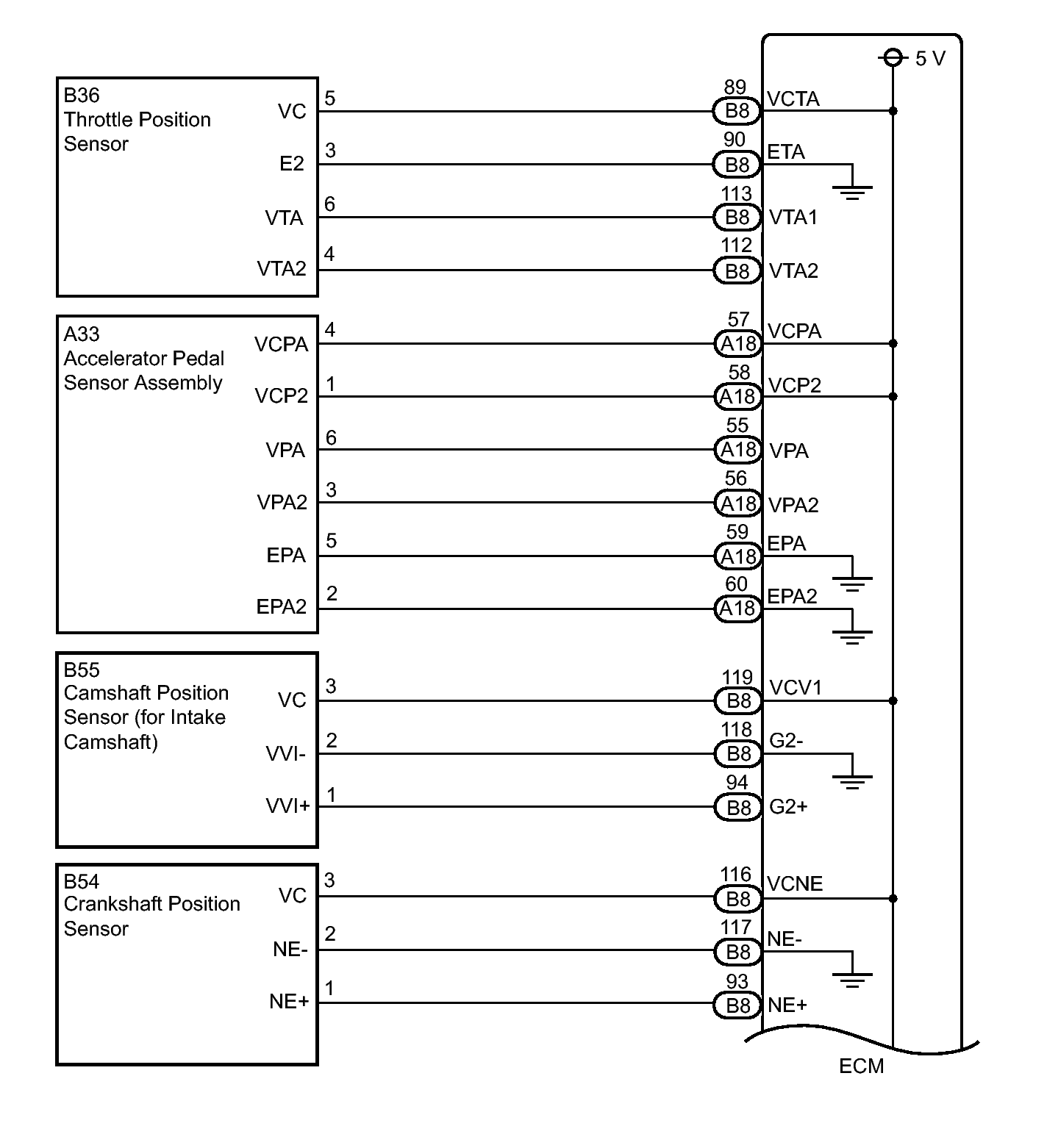

Fig 1: VC Output Wiring Diagram (1 Of 2)
GTY345263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

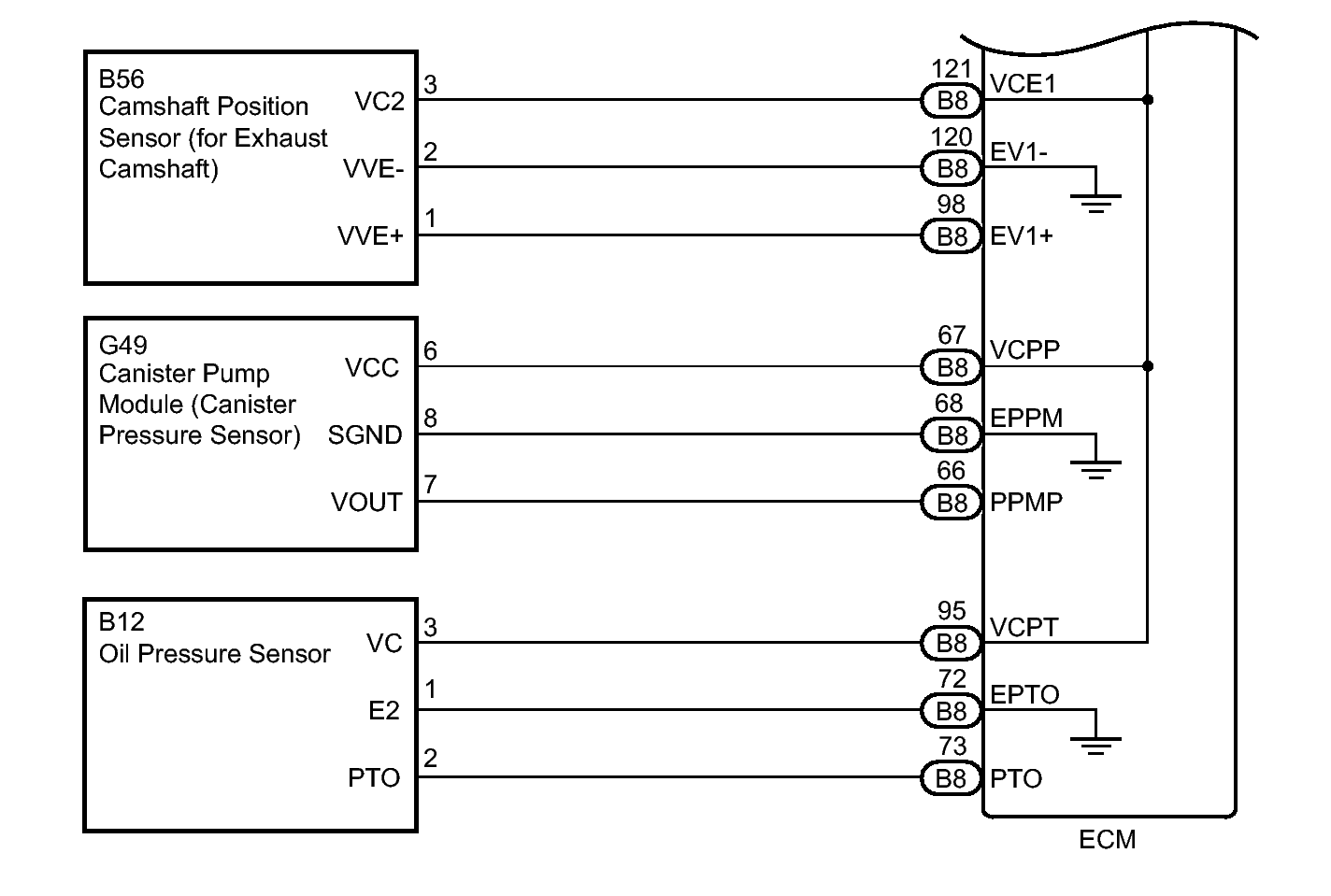

Fig 2: VC Output Wiring Diagram (2 Of 2)
GTY346967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
