Data Link Connector 3: Notes

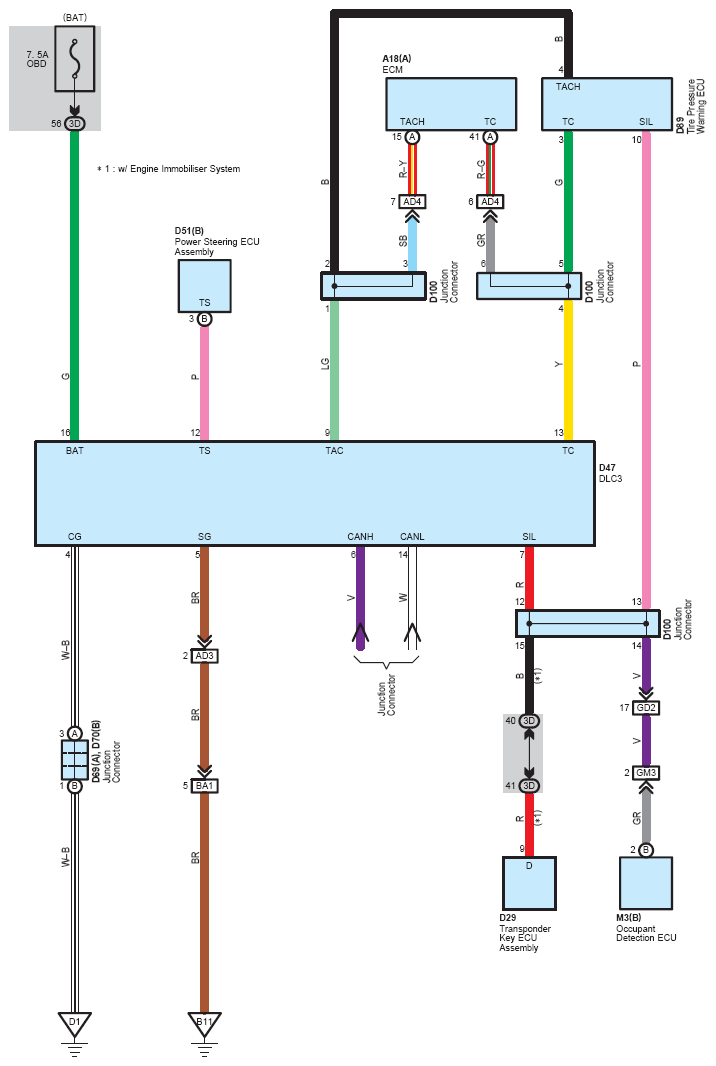

Fig 1: Data Link Connector 3 - Wiring Diagram

G08774656

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
