Components [05/2013 - ]: Illustration

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (5 Of 9)
GTY386049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

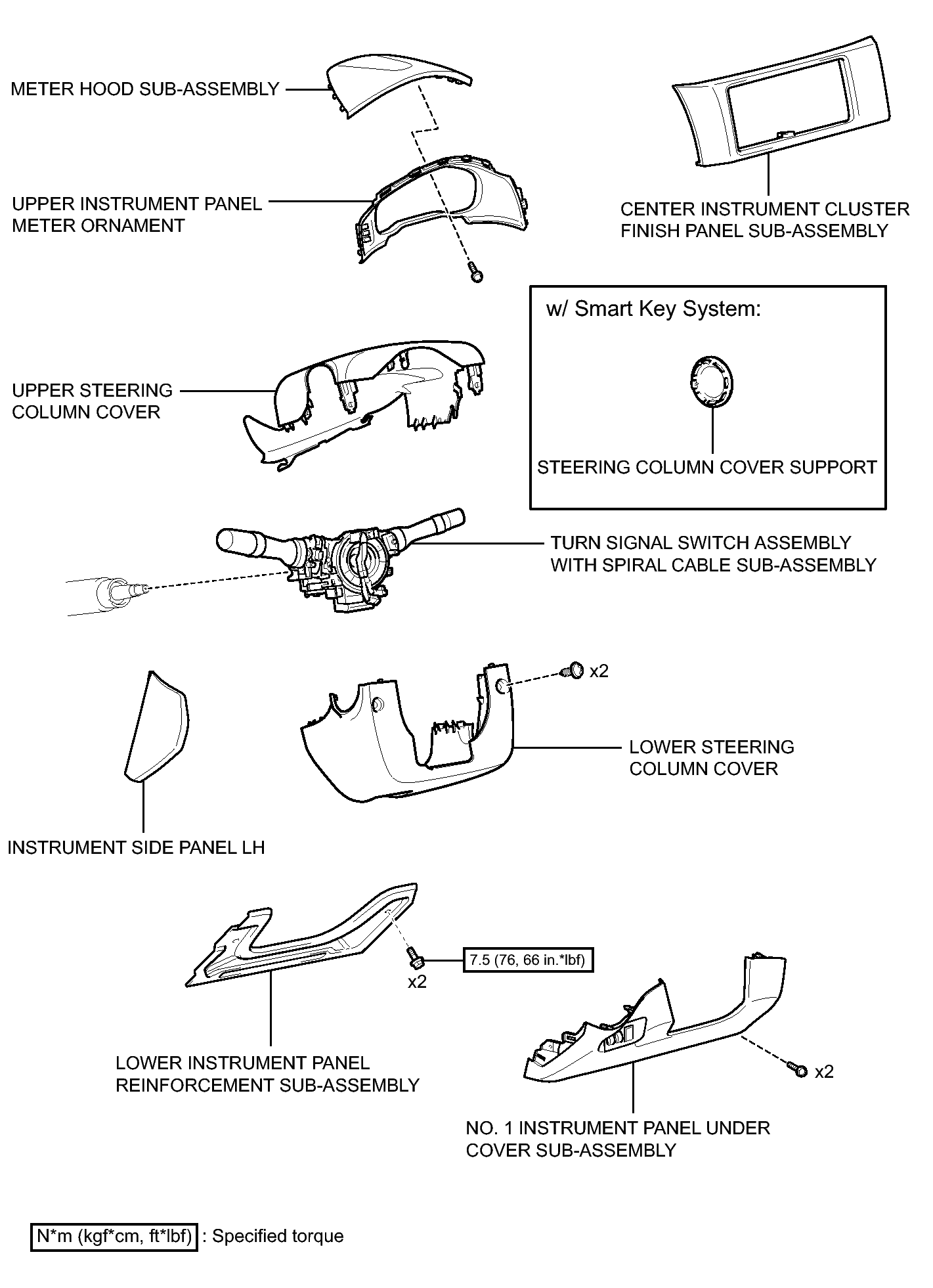

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (6 Of 9)
GTY389511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

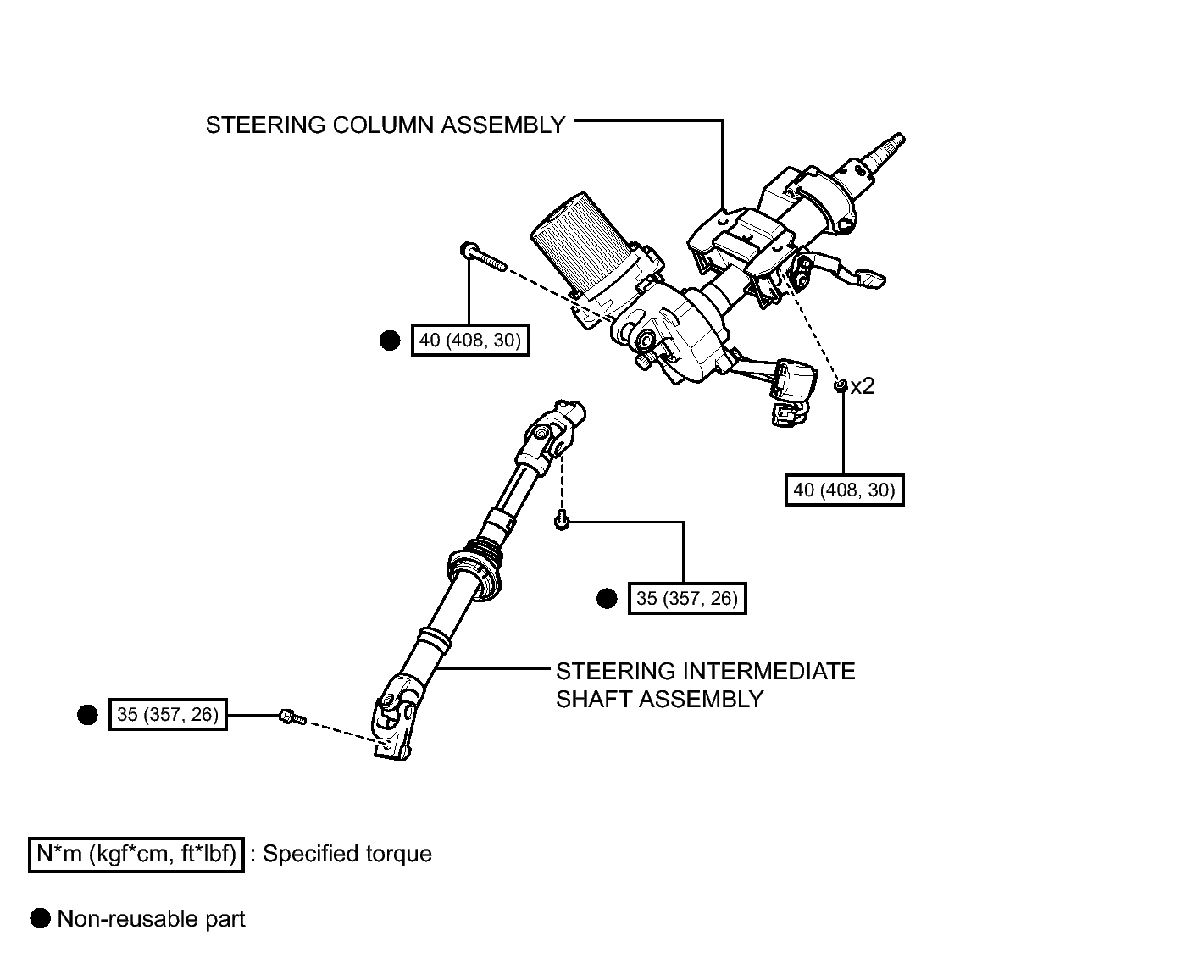

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (7 Of 9)
GTY391910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

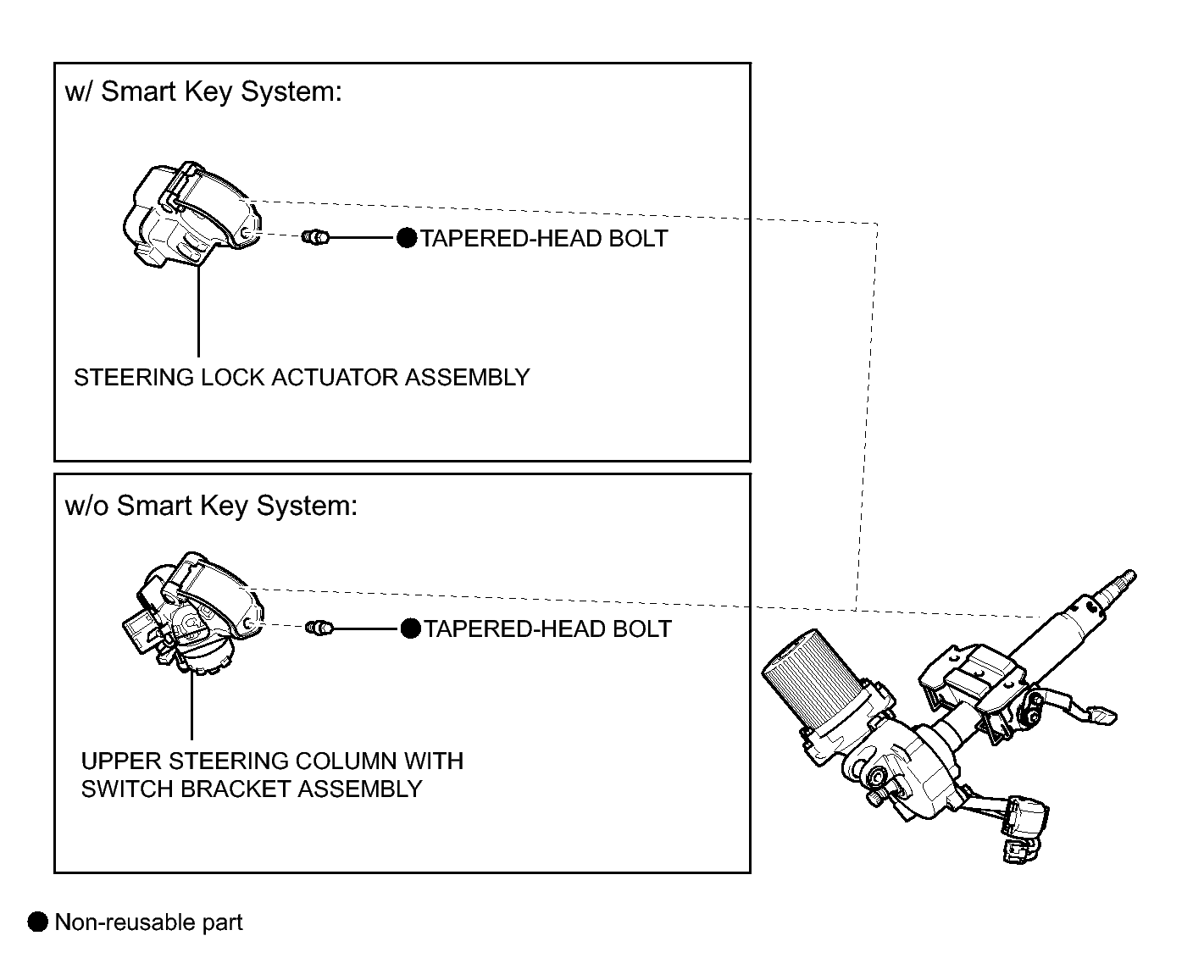

Fig 1: Identifying Steering Column Assembly Replacement Components (8 Of 9)
GTY391647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

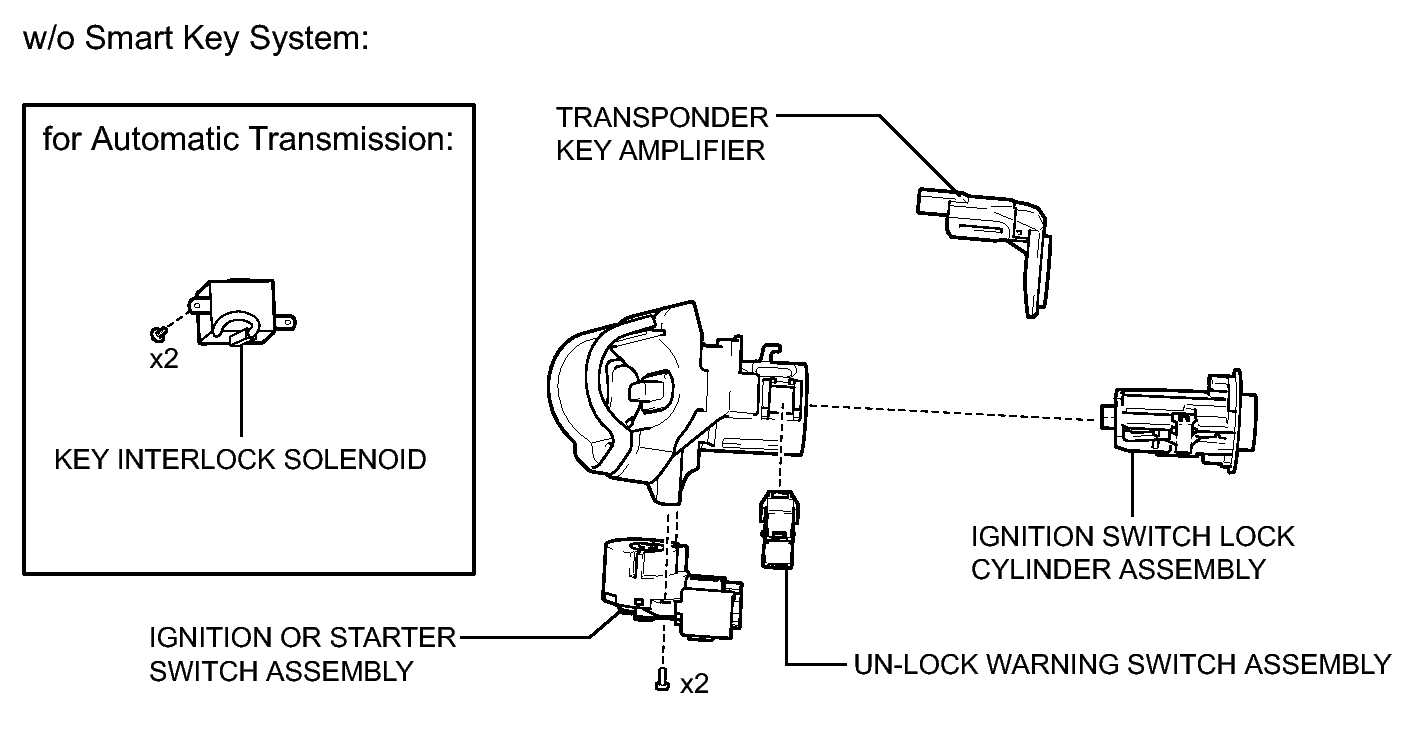

Fig 1: Identifying Steering Column Assembly Replacement Components (9 Of 9)
GTY389874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
