Components [03/2012 - 05/2013]: Illustration

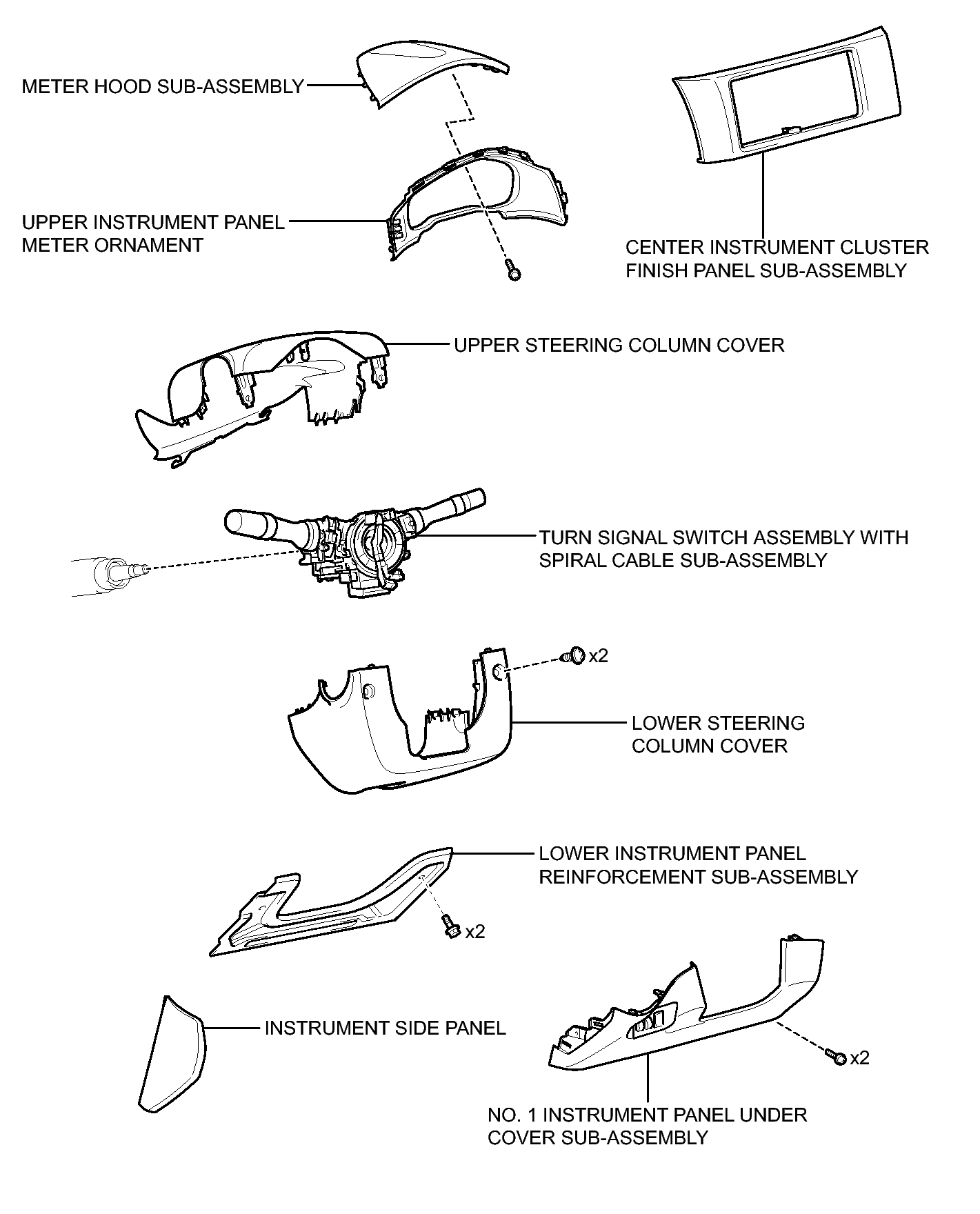

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

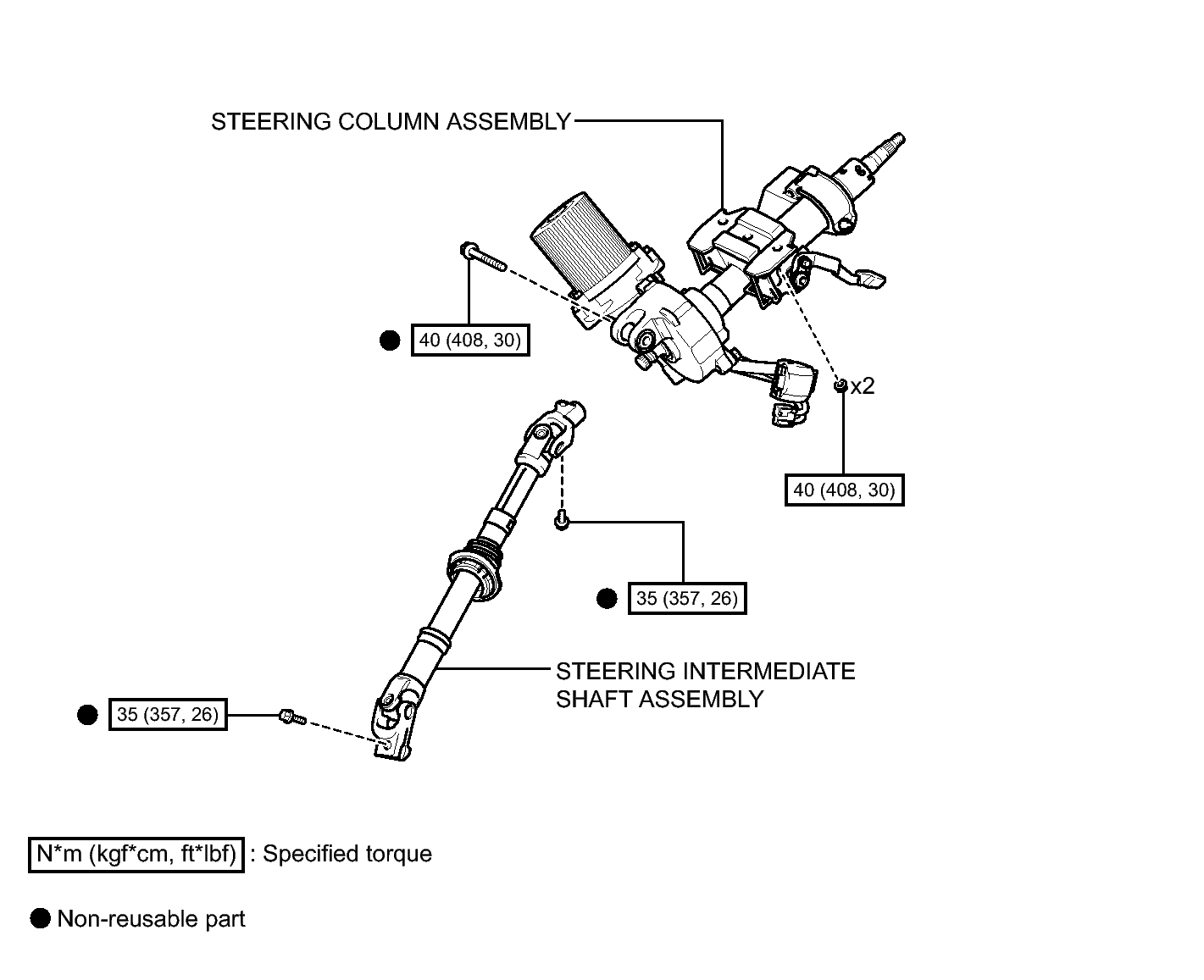

Fig 1: Identifying Steering Column Assembly Replacement Components (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

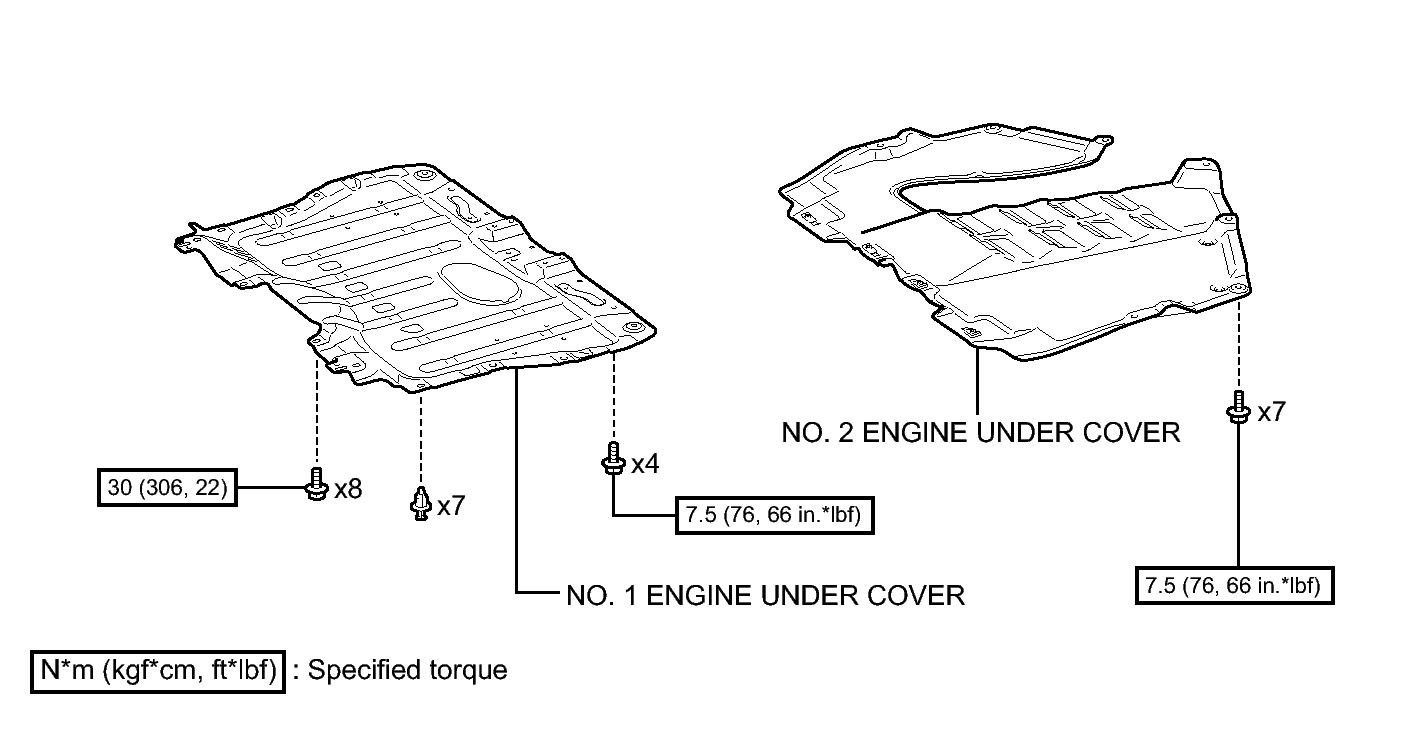

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

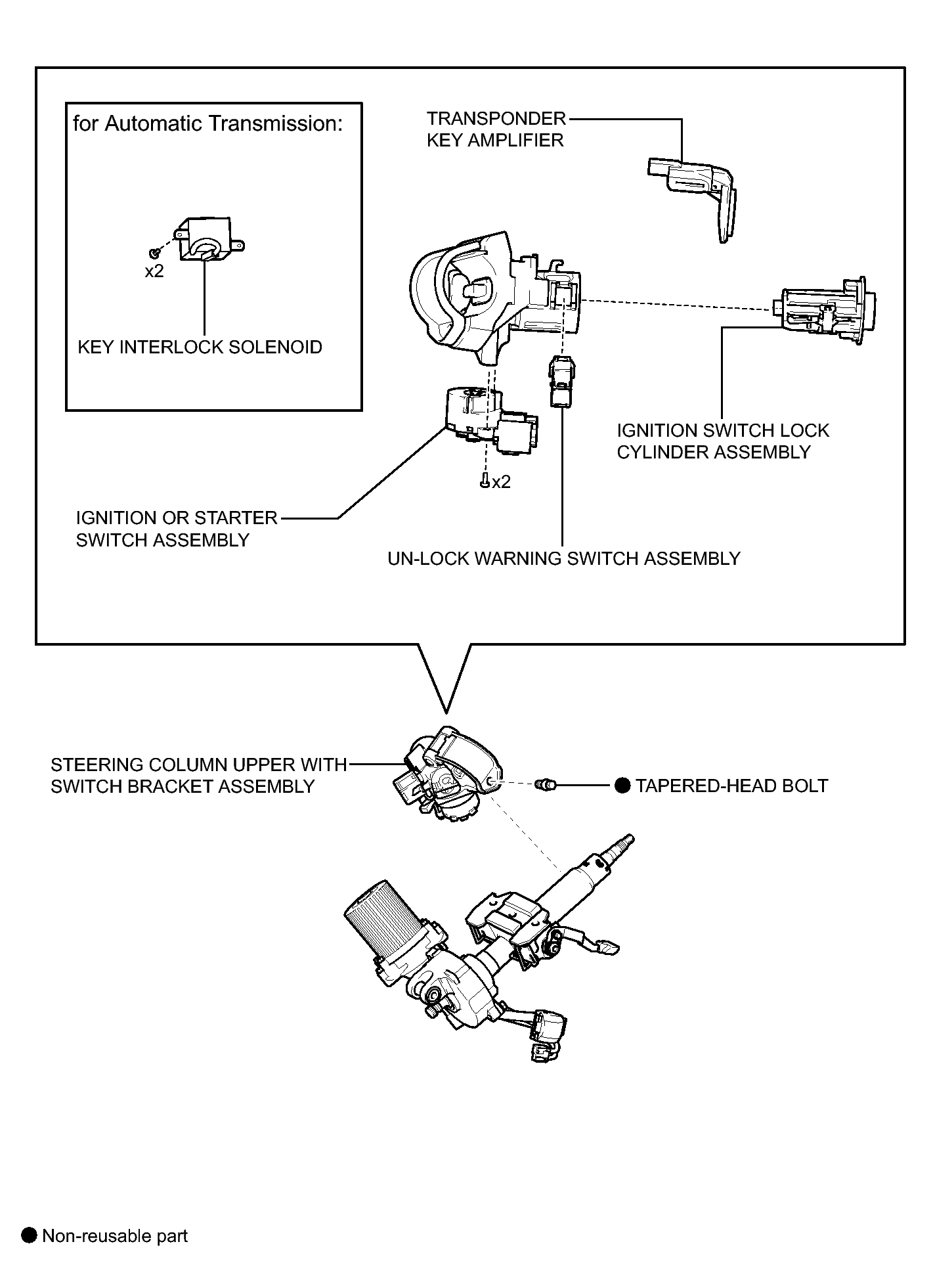

Fig 1: Identifying Steering Column Assembly Replacement Components (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
