Luggage Compartment Door Opener: Notes

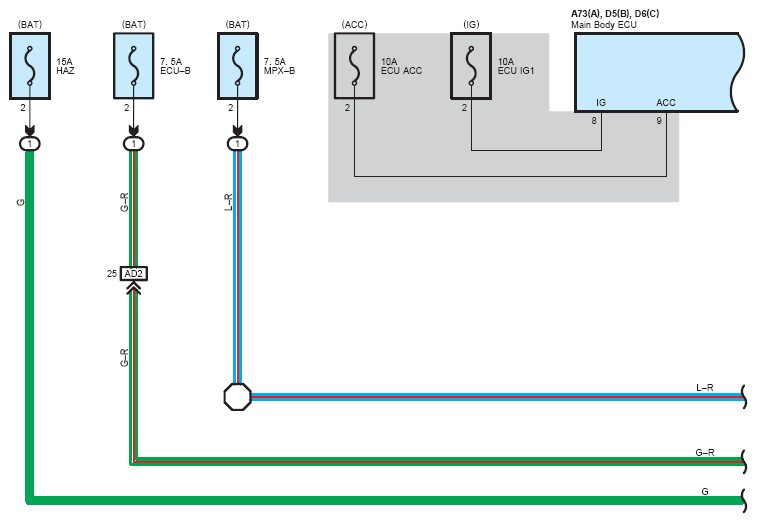

Fig 1: Luggage Compartment Door Opener - Wiring Diagram (1 Of 7)
G08774199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

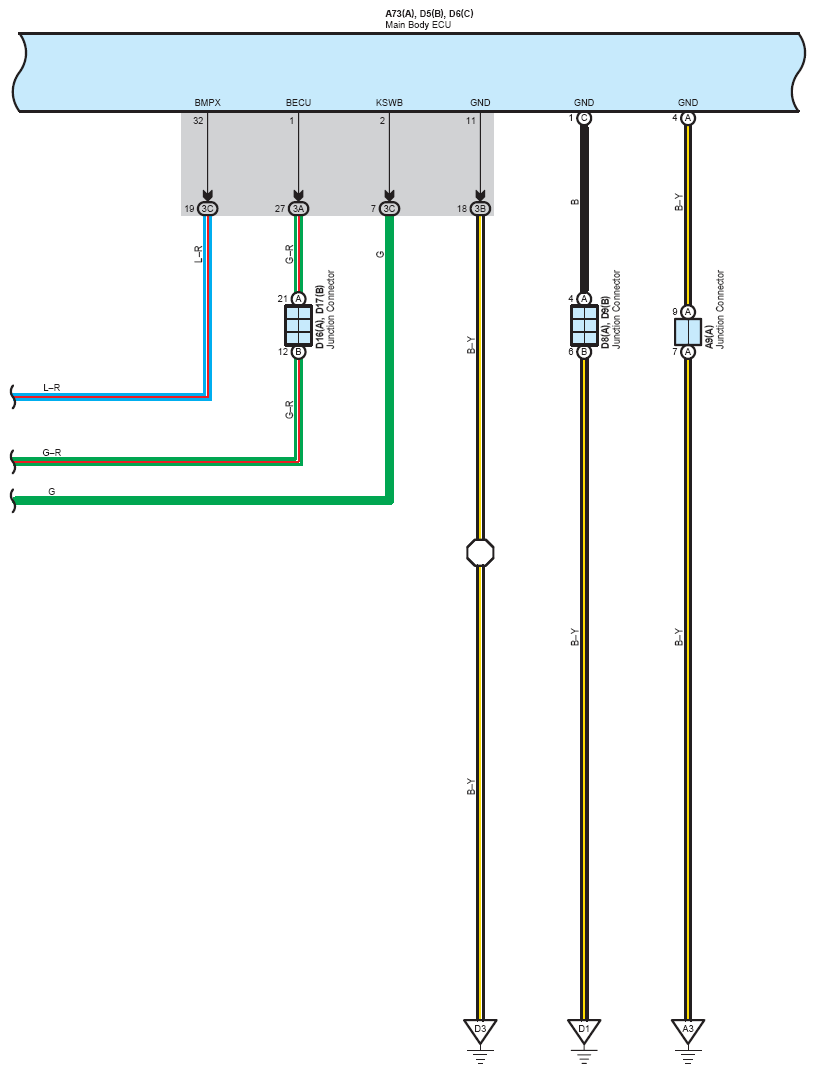

Fig 2: Luggage Compartment Door Opener - Wiring Diagram (2 Of 7)
G08774200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

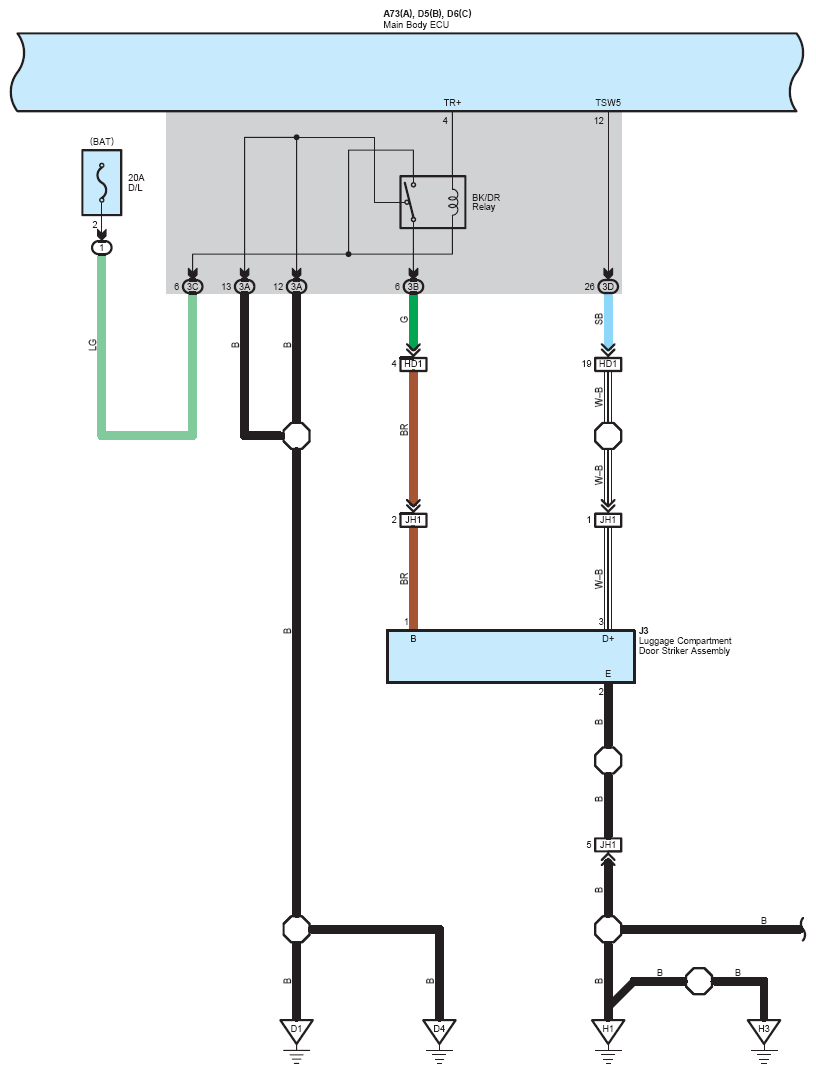

Fig 3: Luggage Compartment Door Opener - Wiring Diagram (3 Of 7)
G08774201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

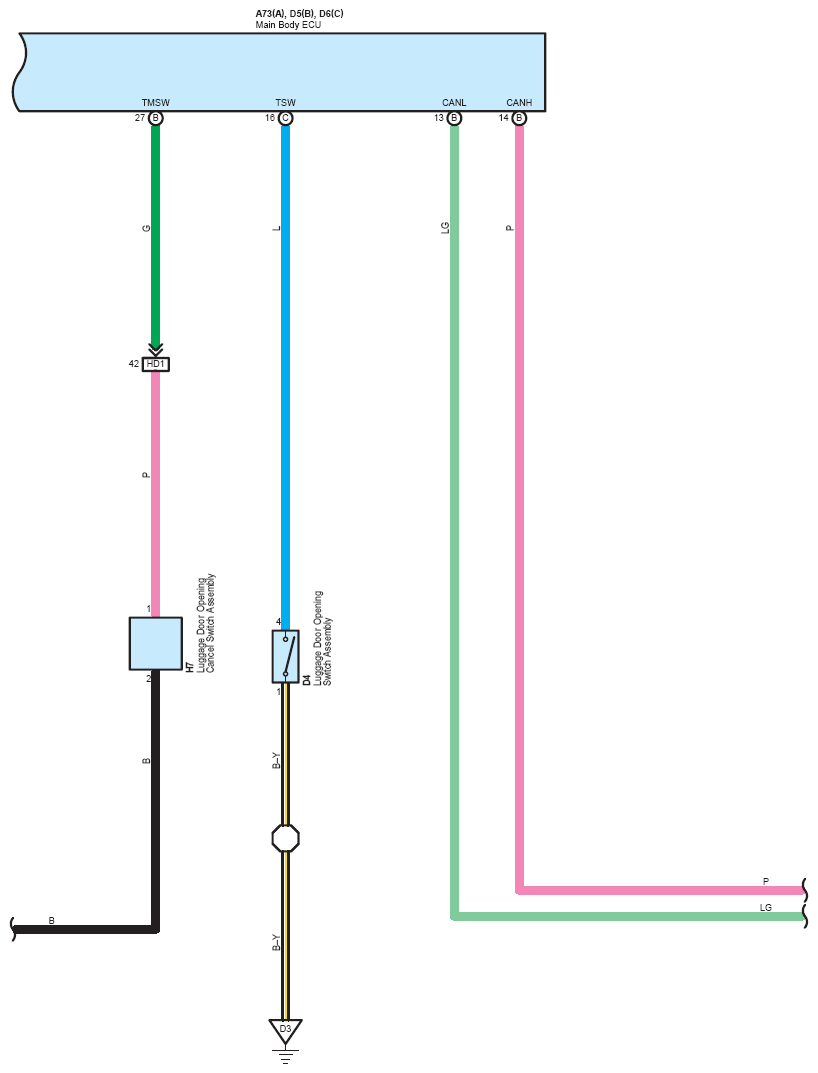

Fig 4: Luggage Compartment Door Opener - Wiring Diagram (4 Of 7)
G08774202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

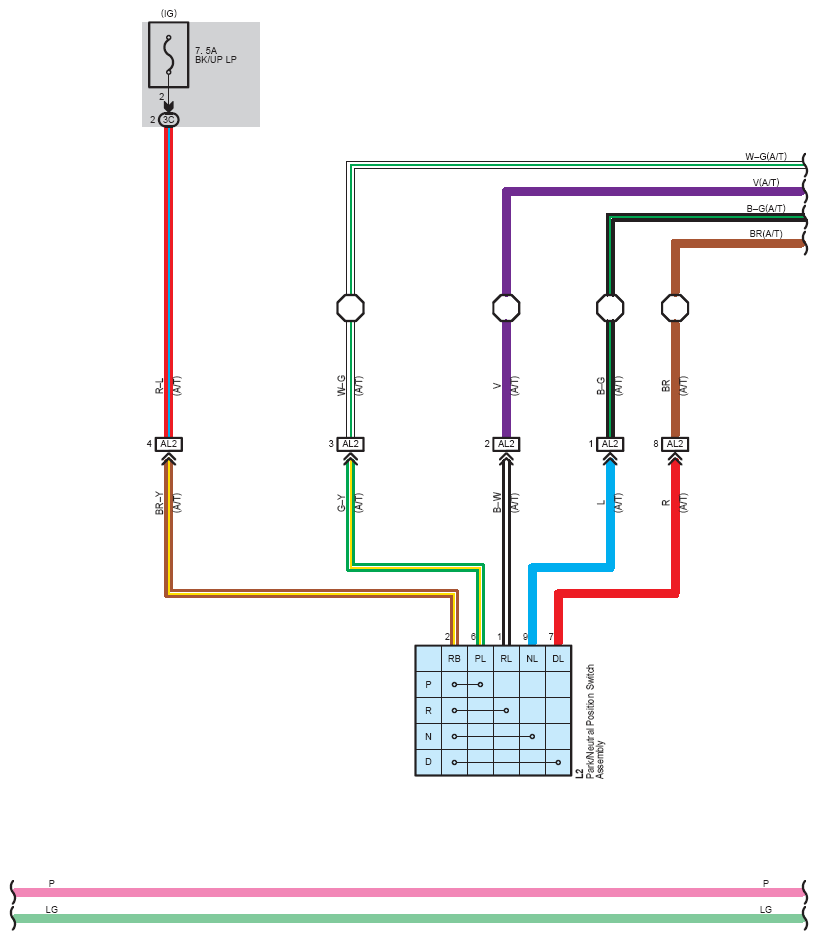

Fig 5: Luggage Compartment Door Opener - Wiring Diagram (5 Of 7)
G08774203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

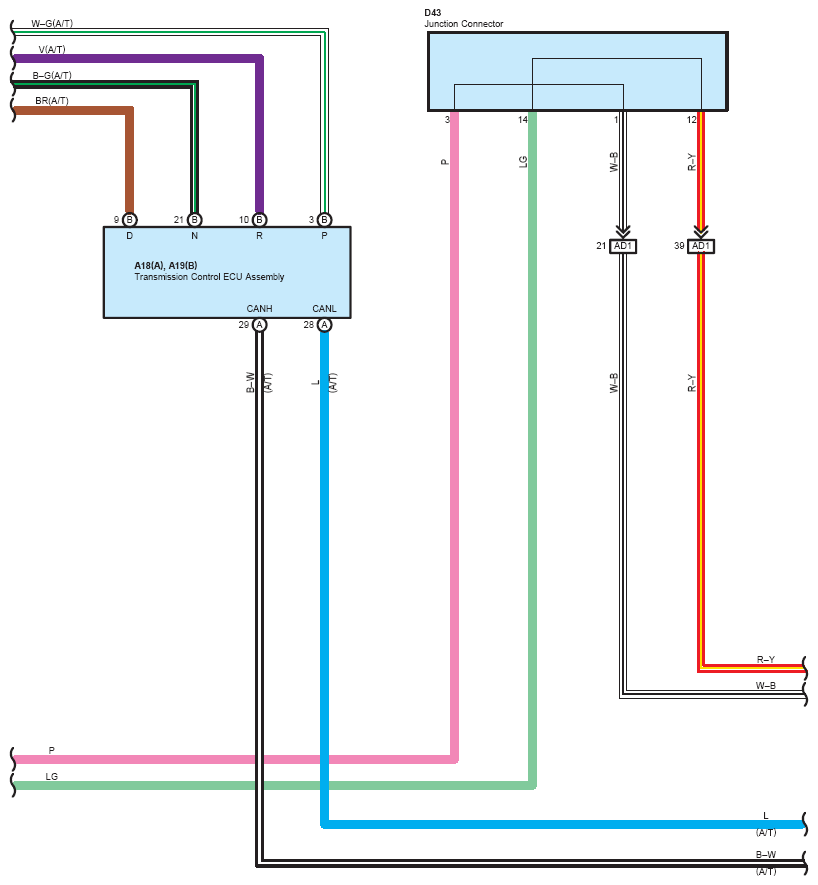

Fig 6: Luggage Compartment Door Opener - Wiring Diagram (6 Of 7)
G08774204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

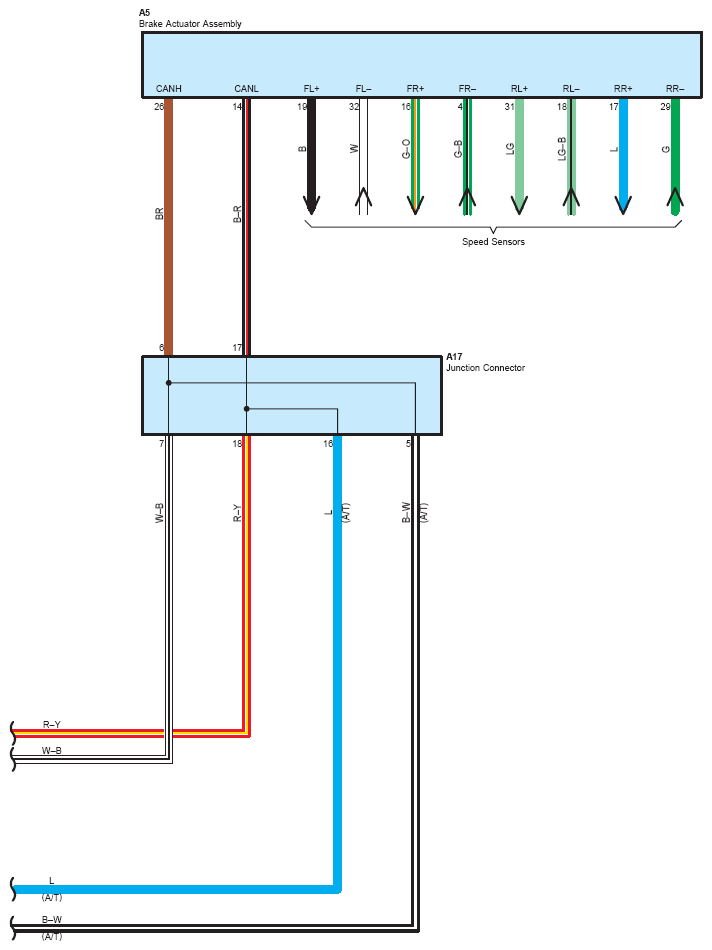

Fig 7: Luggage Compartment Door Opener - Wiring Diagram (7 Of 7)
G08774205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
