Parts Location [05/2013 - ]: Illustration

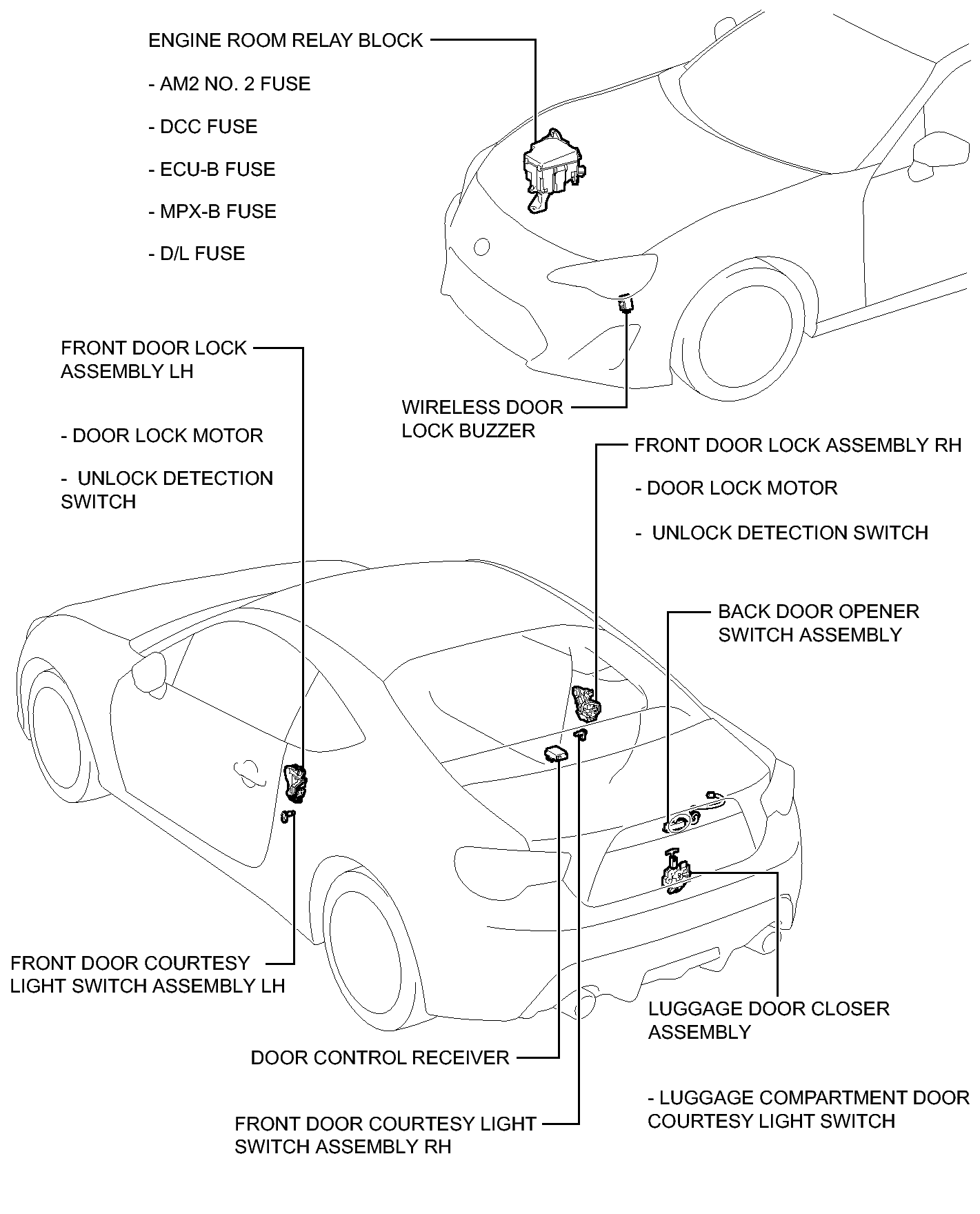

Fig 1: Identifying Smart Key System Components Location (For Entry Function) (1 Of 4)
GTY386368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

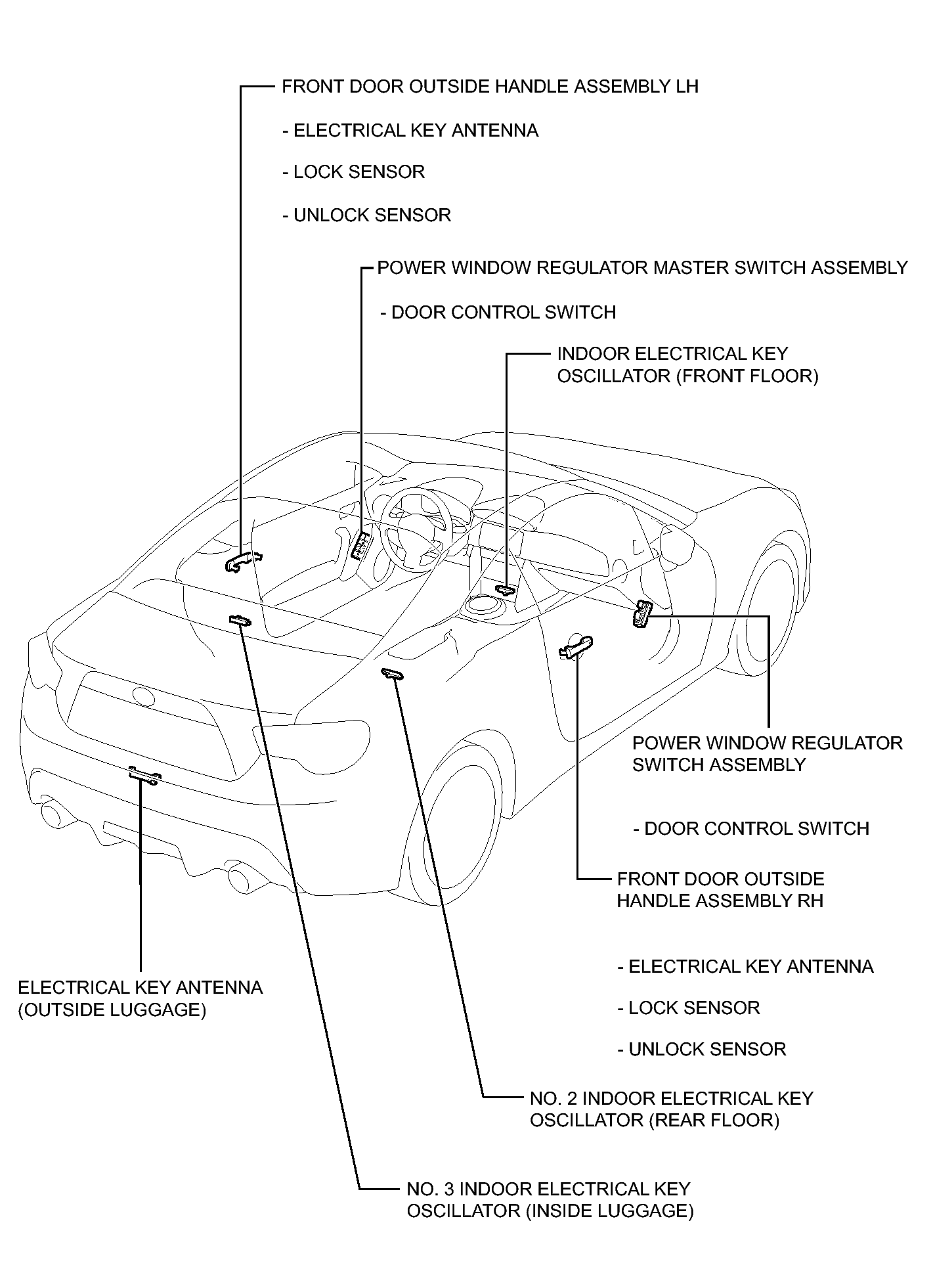

Fig 1: Identifying Smart Key System Components Location (For Entry Function) (2 Of 4)
GTY388602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

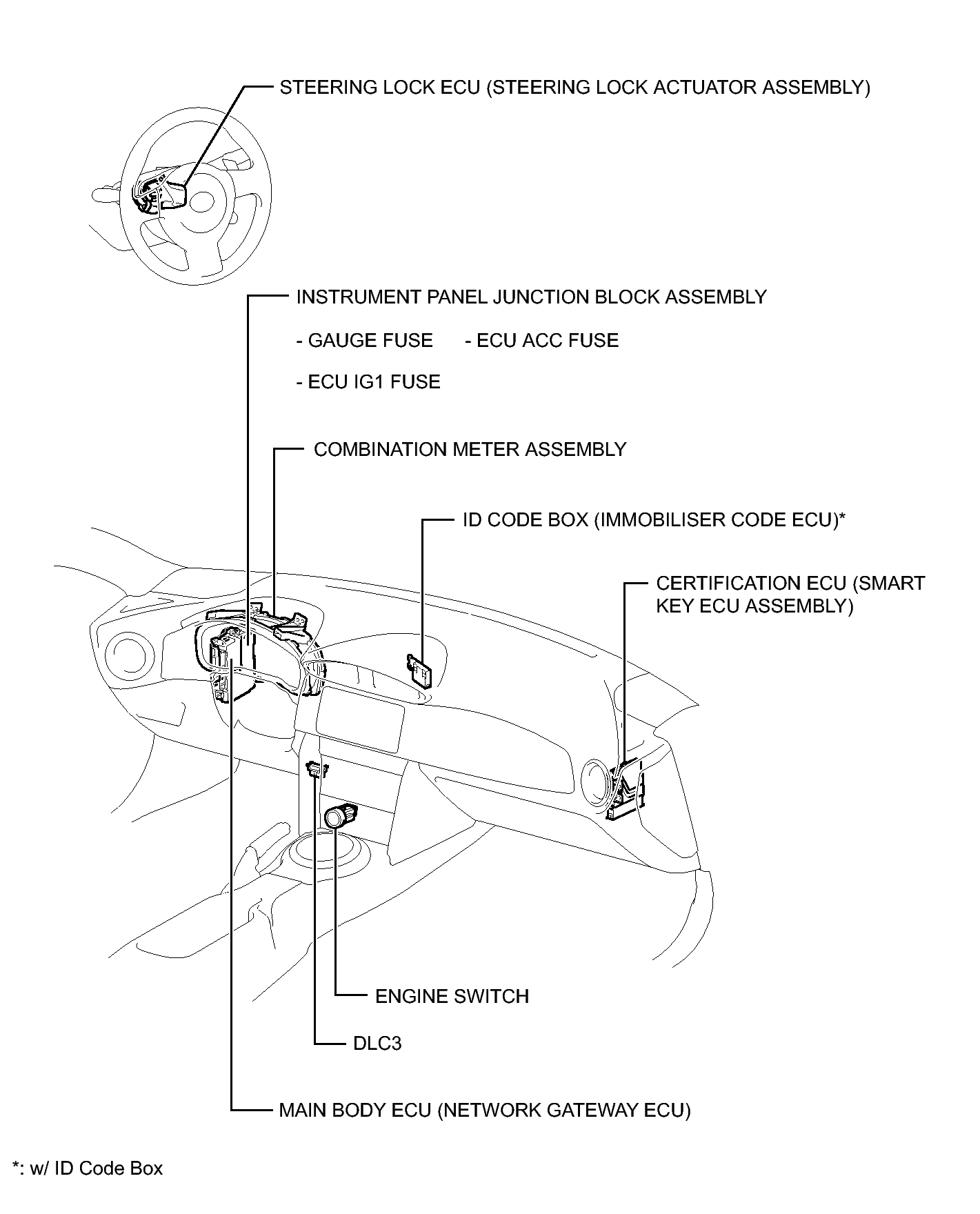

Fig 1: Identifying Smart Key System Components Location (For Entry Function) (3 Of 4)
GTY385621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Smart Key System Components Location (For Entry Function) (4 Of 4)
GTY386981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
