Power Windows do not Operate at All: Wiring Diagram

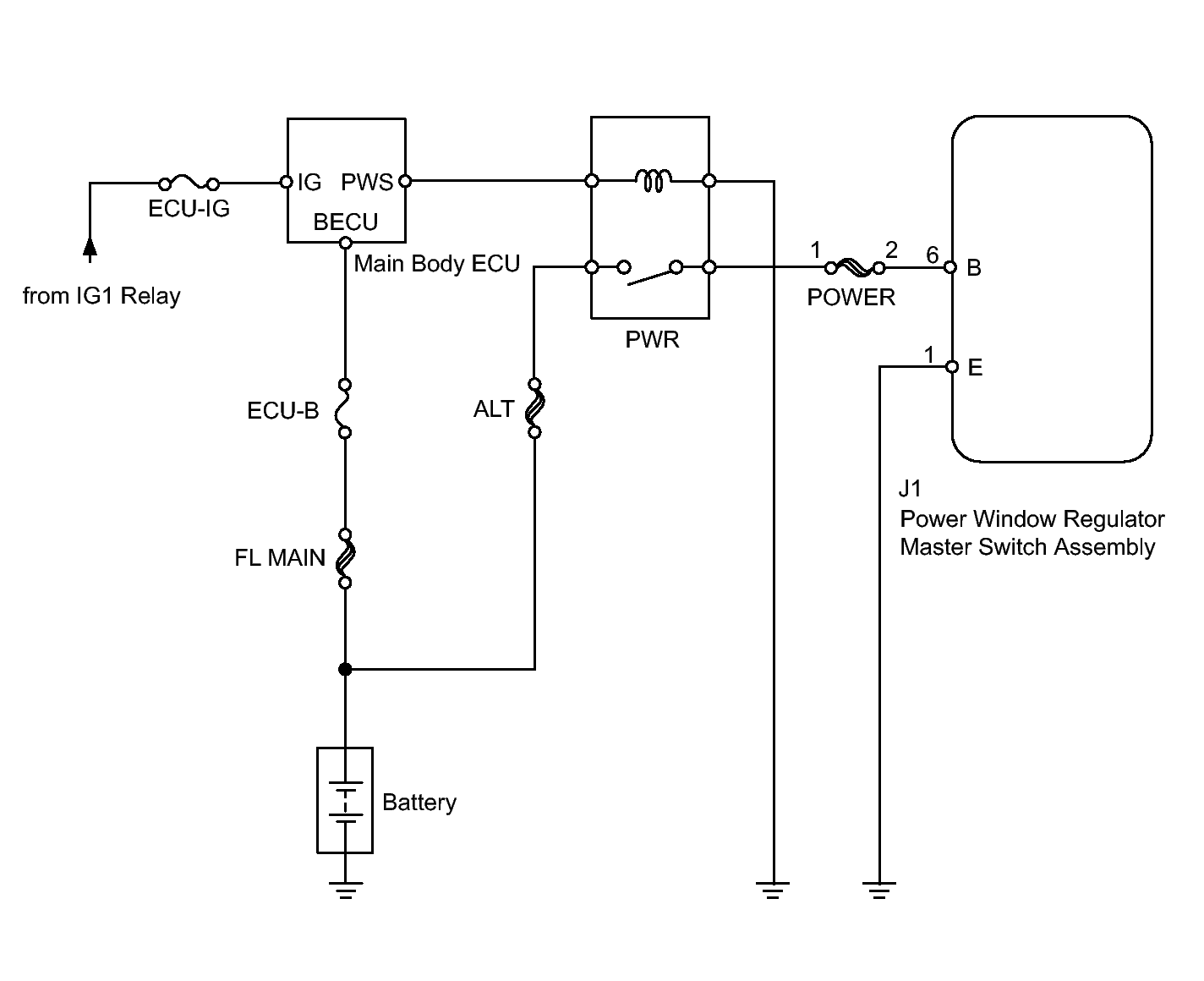

Fig 1: Power Window Wiring Diagram

GTY345043

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
