Valve Body Assembly: Components: Illustration

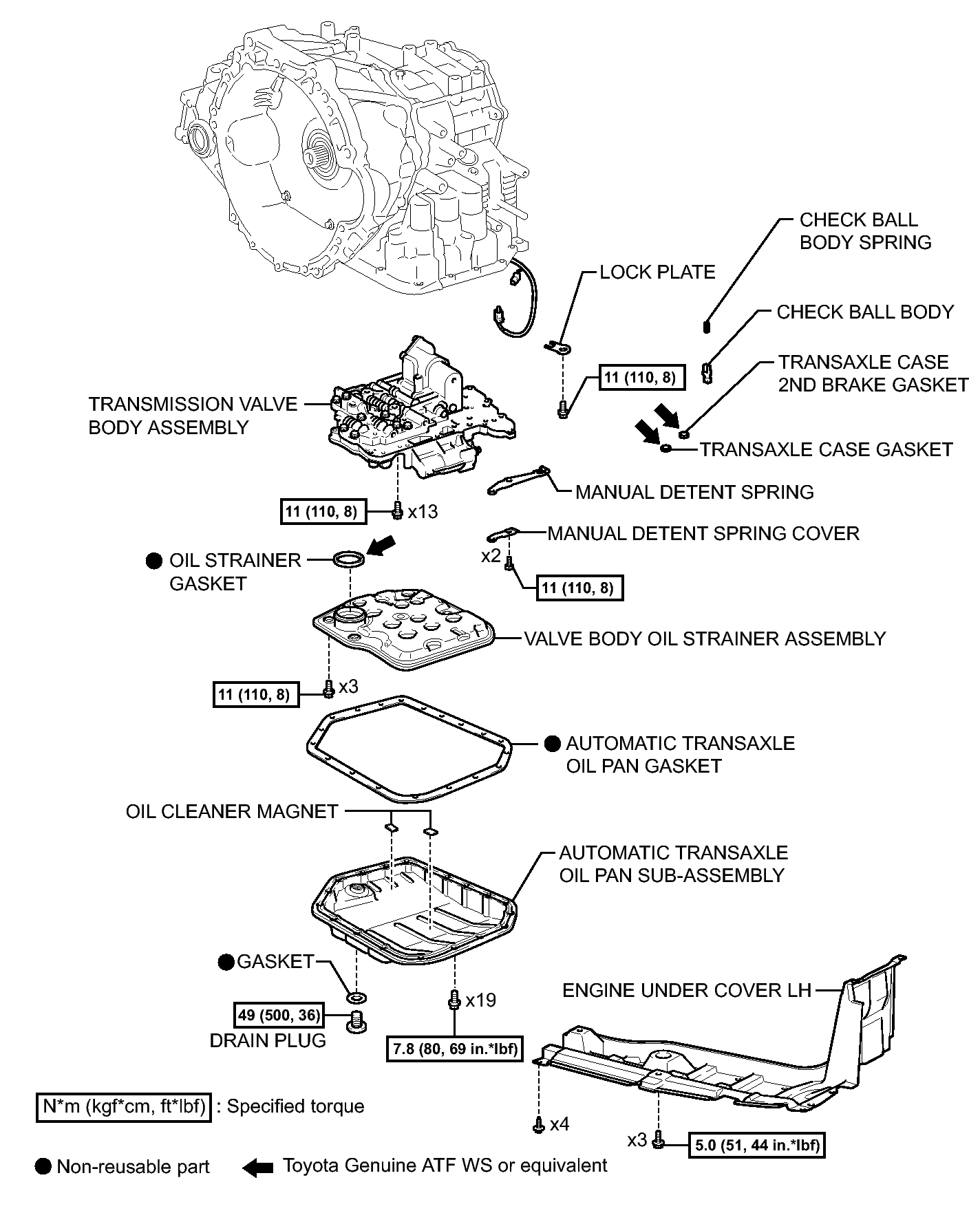

Fig 1: Identifying Valve Body Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY166122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

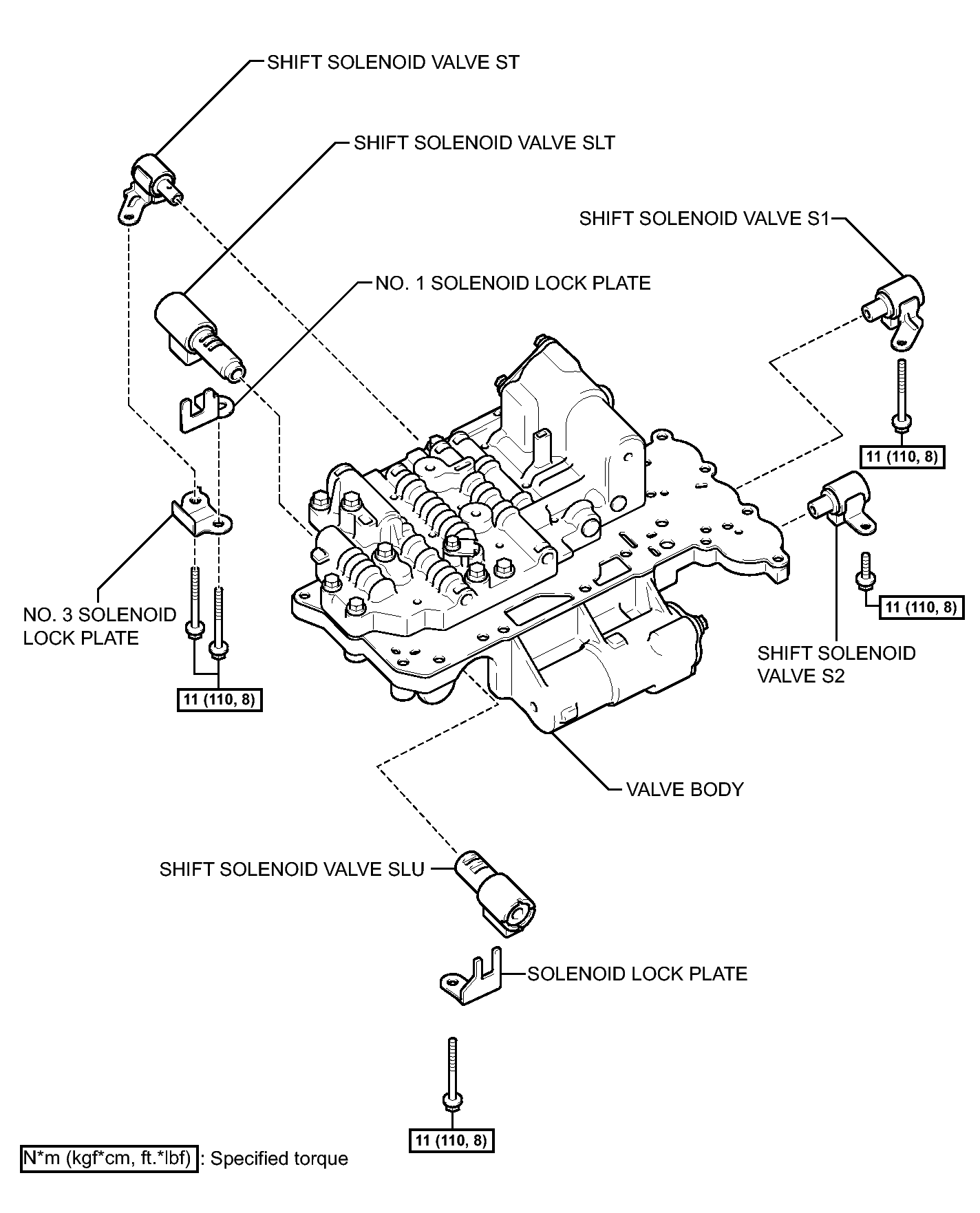

Fig 1: Identifying Valve Body Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY346691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
