Differential Case: Components: Illustration

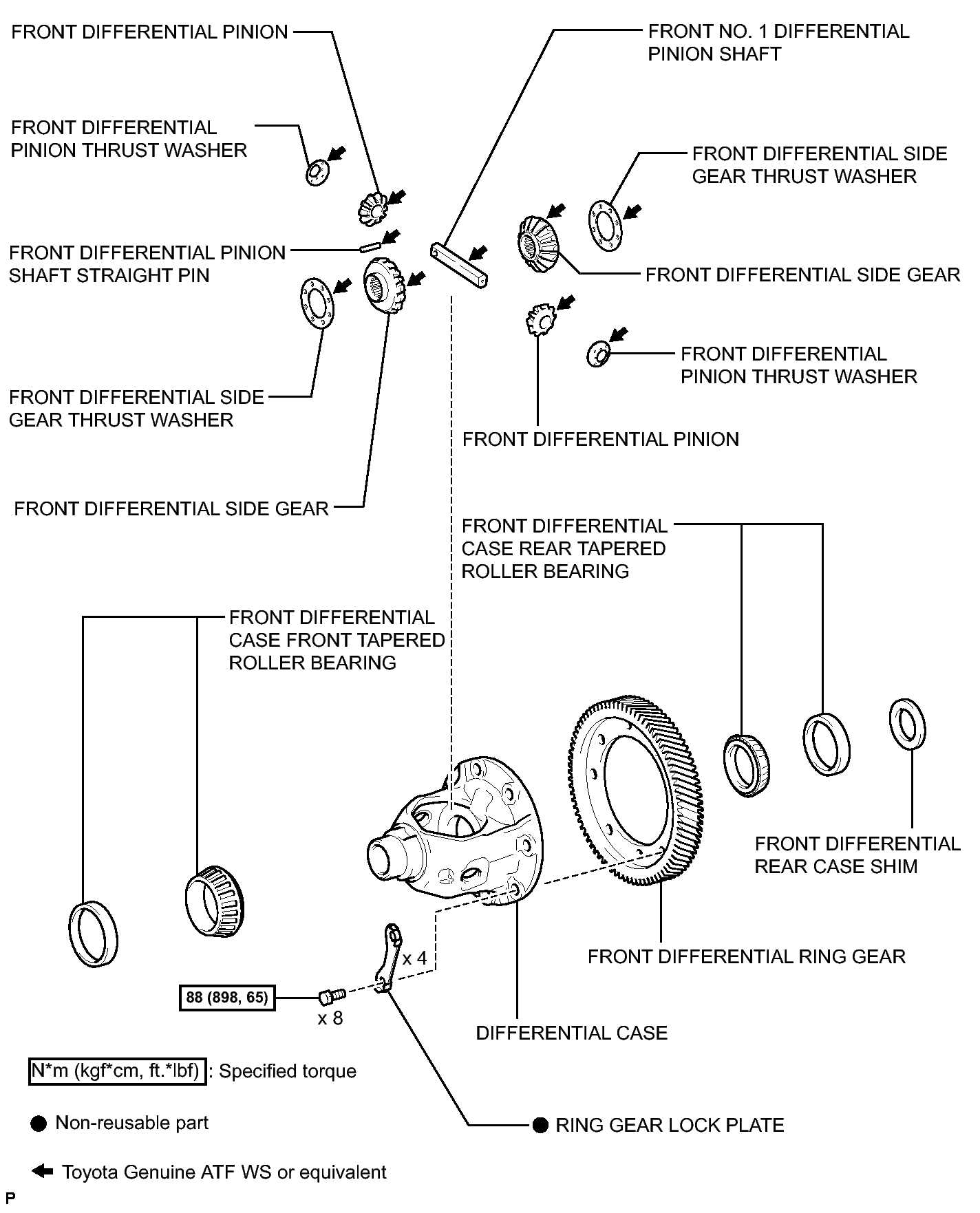

Fig 1: Exploded View Of Differential Case Replacement Components With Torque Specifications

GTY166180

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
