DTC P0102: Mass or Volume Air Flow Circuit Low Input; DTC P0103: Mass or Volume Air Flow Circuit High Input: Wiring Diagram

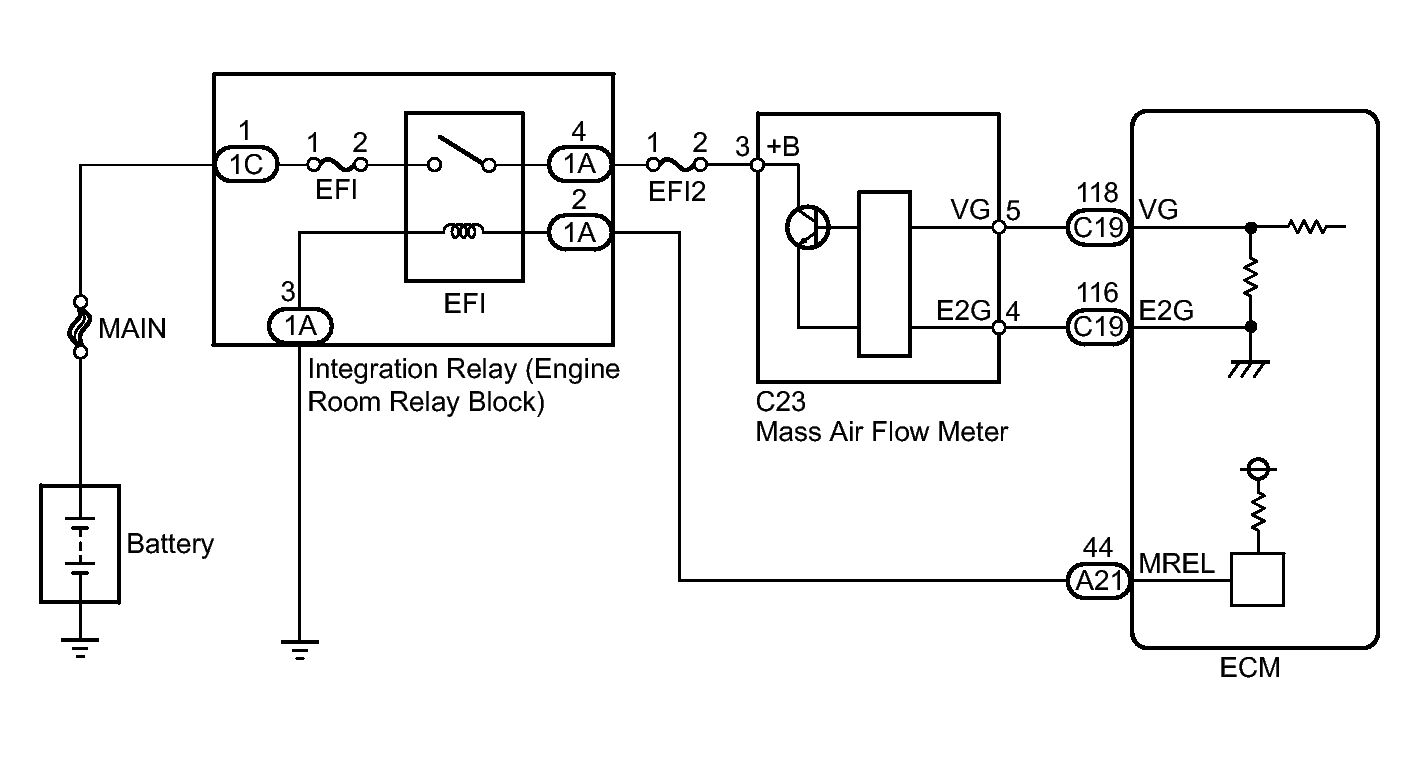

Fig 1: Mass Air Flow Meter -- Wiring Diagram
GTY311329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
