Engine Unit: Replacement: Replacement

REPLACE RING PIN
1. Remove the 2 ring pins.
2. Using a plastic-faced hammer, tap in 2 new ring pins to the crankcase.

  Fig 1: Locating Ring Pins
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard protrusion

  3 mm (0.1181 in.)
REPLACE STUD BOLT
1. for Crankcase:
  1. Remove the 2 stud bolts.
  2. Using "TORX" socket wrench E5, install the 2 stud bolts as shown in the illustration.

    Fig 2: Locating Stud Bolts
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
2. for water inlet housing:

  Fig 3: Identifying Stud Bolts Dimension
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Remove the 2 stud bolts.
  2. Using a "TORX" socket E5, install the 2 stud bolts as shown in the illustration.
    Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
REPLACE SPARK PLUG TUBE GASKET

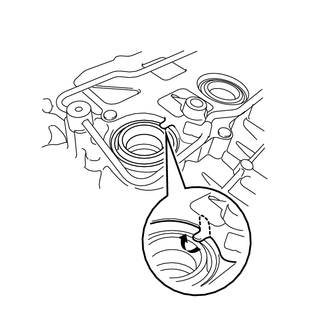

1. Pry up the claws of the ventilation baffle plate.

  Fig 4: Identifying Claws Of Baffle Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not deform the claws of the baffle plate more than necessary.
2. Remove the 4 gaskets from the cylinder head covers.
  NOTE:
  - Try not to deform the plug tube gaskets. The removed gaskets will be used when reinstalling the gaskets.
  - Do not damage the connection of the cylinder head cover.
3. Using a cutter, cut off the sealing part of the removed plug tube gasket.

  Fig 5: Identifying Area To Be Cut Off
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

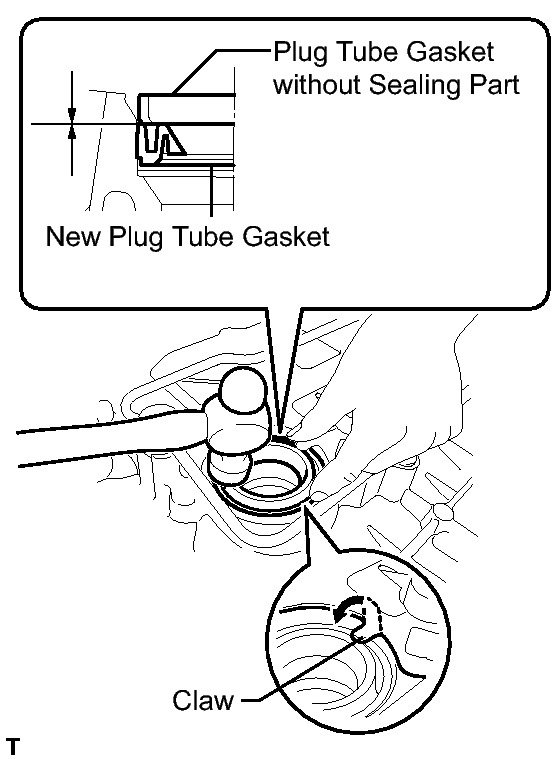

4. Using a plug tube gasket which has had the sealing part cut off, uniformly tap in a plug tube gasket all the way.

  Fig 6: Installing Plug Tube Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Keep the lip free of foreign matter.
  - Do not tap on the oil seal at an angle.
  HINT:

  If a plug tube gasket that will be used to install a new gasket is deformed, and cannot be positioned on a new gasket, correct the deformation using pliers.
5. Return the claws of the ventilation baffle plate to their original positions.
REPLACE TIMING CHAIN OR BELT COVER OIL SEAL
1. Using a screwdriver and hammer, remove the oil seal.

  Fig 7: Removing Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Be careful not to damage the timing chain cover sub-assembly.

  HINT:

  Tape the screwdriver tip before use.
2. Using SST, tap in a new oil seal until its surface is flush with the timing gear case edge.

  Fig 8: Tapping Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09223-22010
3. Apply a light coat of MP grease to the lip of the oil seal.
  NOTE:
  - Keep the lip free of foreign matter.
  - Do not tap on the oil seal at an angle.
  - Make sure that the oil seal edge does not stick out of the timing chain cover.
REPLACE ENGINE REAR OIL SEAL
1. Using a knife, cut off the oil seal lip.

  Fig 9: Prying Out Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver with its tip taped, pry out the oil seal.
  NOTE:
  After removing the oil seal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
3. Apply MP grease to the new oil seal lip.
4. Using SST and a hammer, evenly tap in a new oil seal until its surface is flush with the rear oil seal retainer edge.

  Fig 10: Installing Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09223-15030
  - SST: 09950-70010
    - 09951-07100
  NOTE:
  - Keep the lip free from foreign materials.
  - Do not tap on the oil seal at an angle.
  - Wipe off any grease that is on the crankshaft.
