PCV Valve: Components: Illustration

Fig 1: Identifying PCV Valve Replacement Components With Torque Specifications (1 of 5)
GTY160791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying PCV Valve Replacement Components With Torque Specifications (2 of 5)
GTY160996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

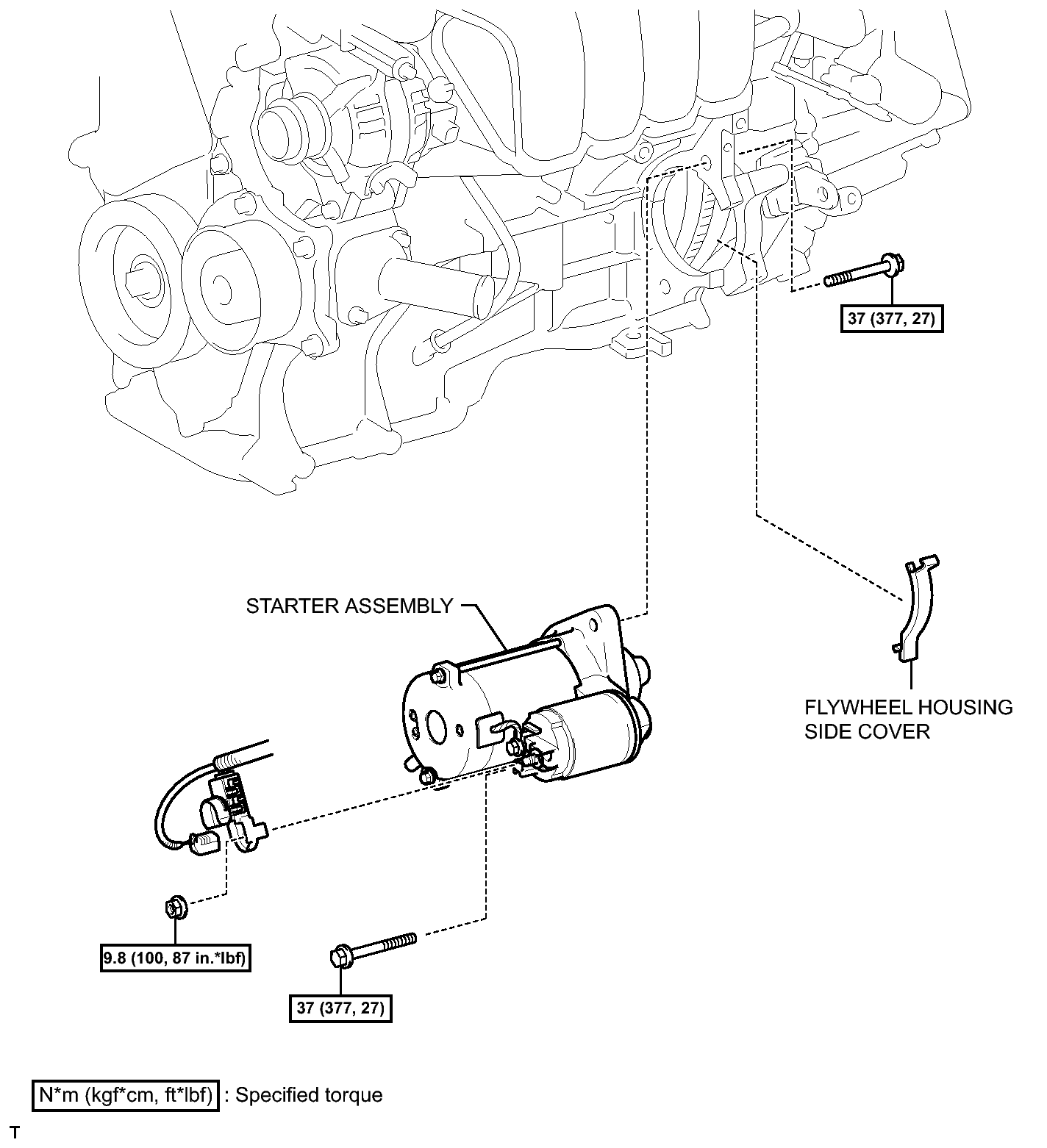

Fig 1: Identifying PCV Valve Replacement Components With Torque Specifications (3 of 5)
GTY162495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying PCV Valve Replacement Components With Torque Specifications (4 of 5)
GTY160787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

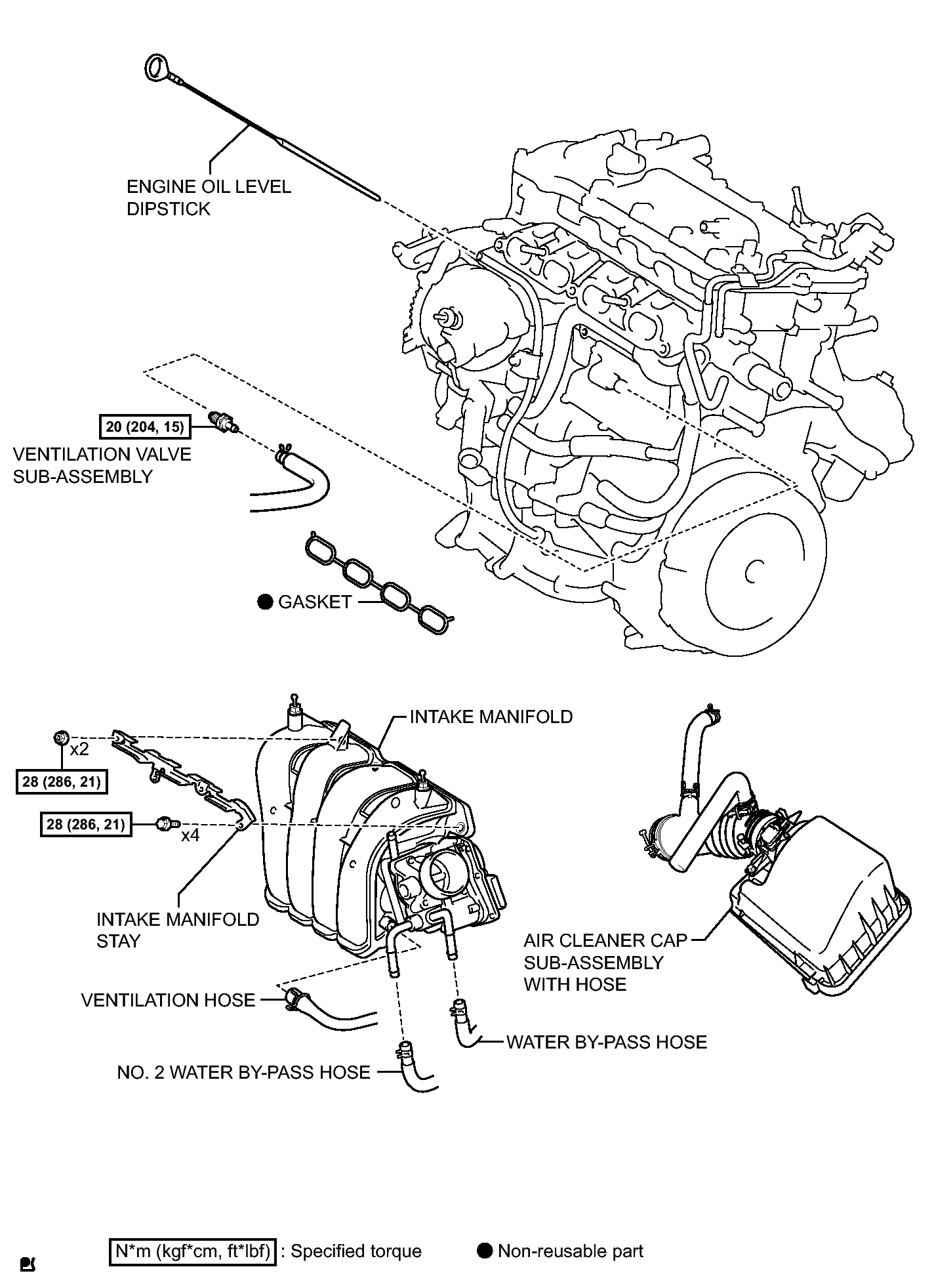

Fig 1: Identifying PCV Valve Replacement Components With Torque Specifications (5 of 5)
GTY160785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
