Parts Location: Illustration

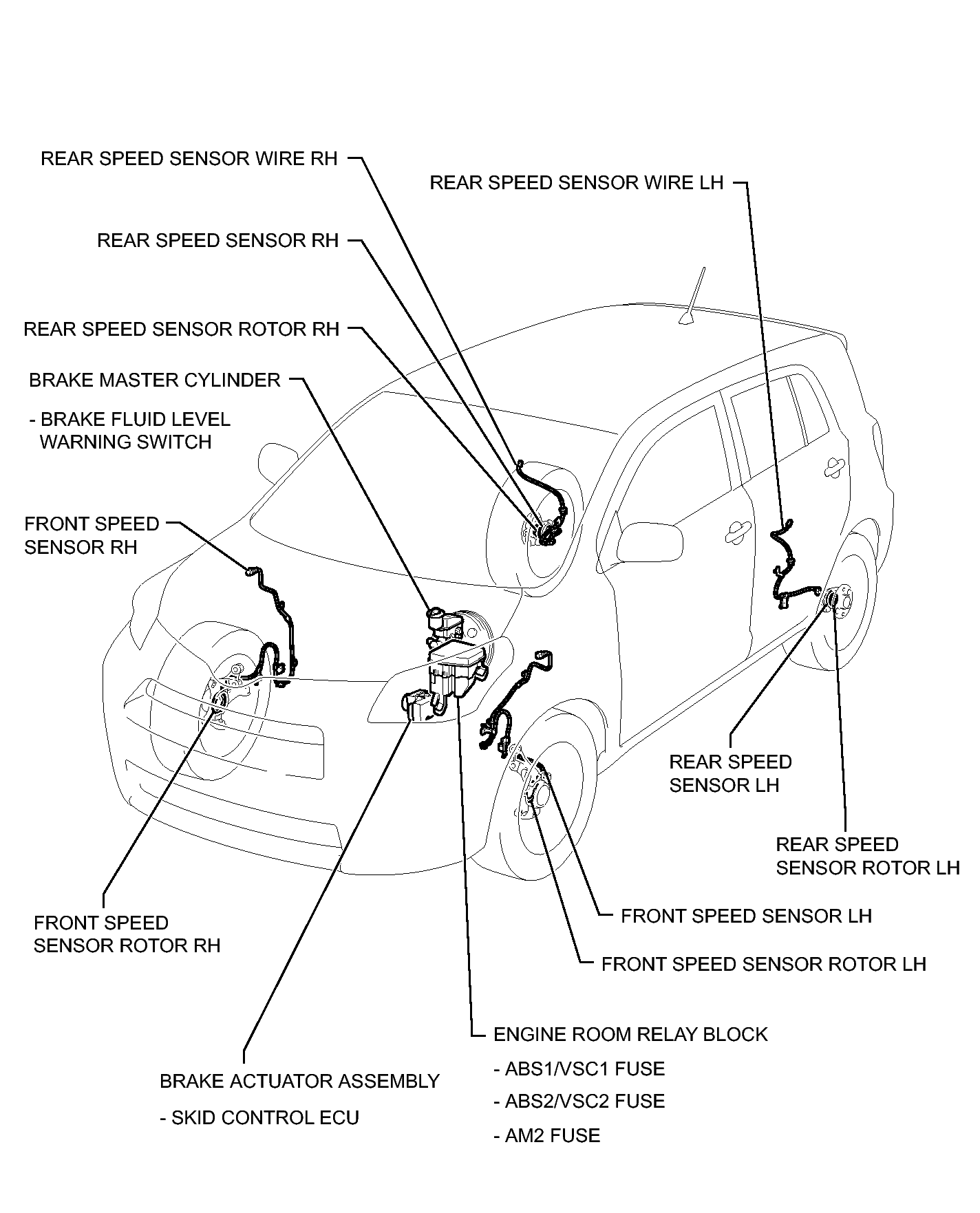

Fig 1: Identifying Vehicle Stability Control System Components Location (1 Of 2)
GTY311550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

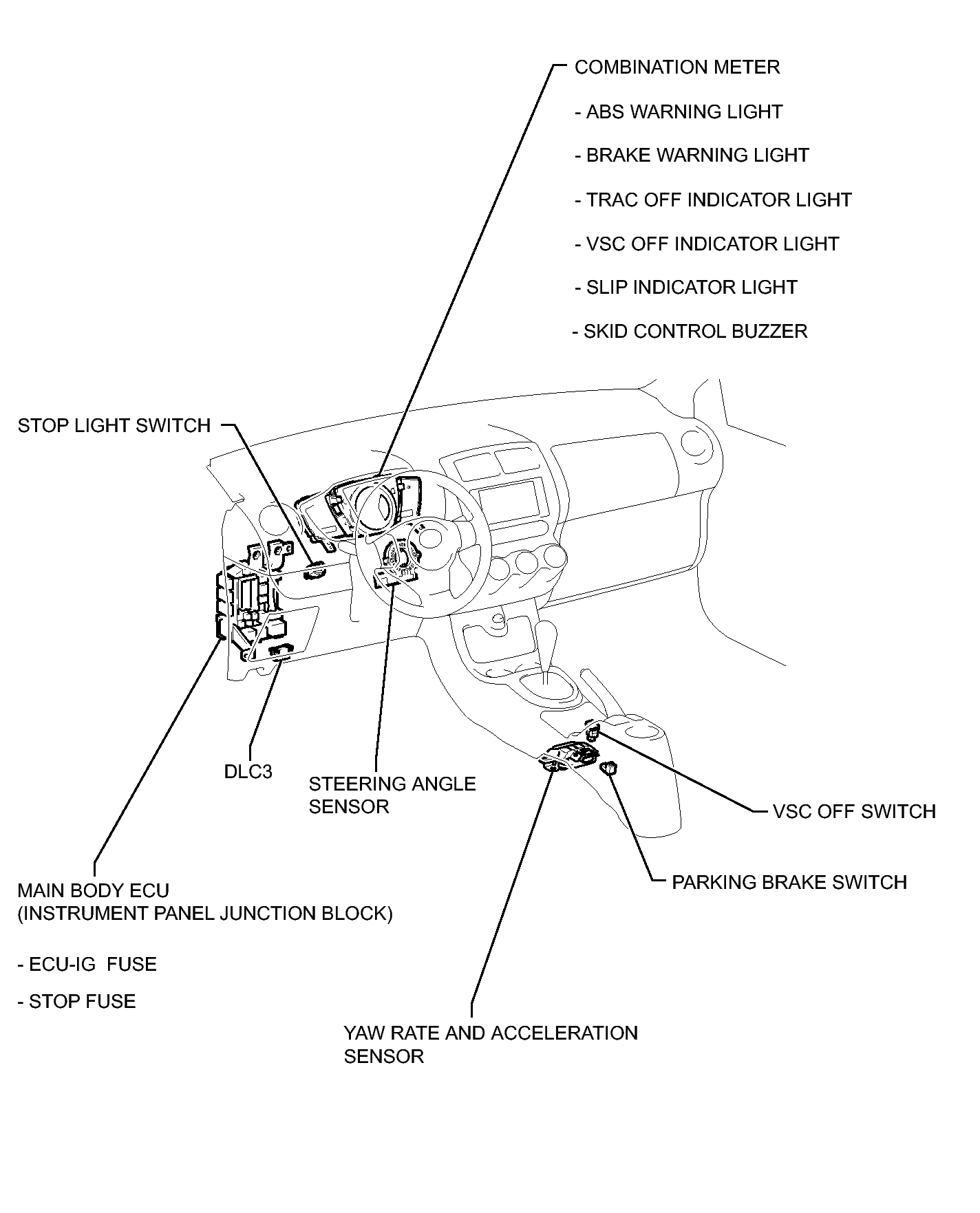

Fig 1: Identifying Vehicle Stability Control System Components Location (2 Of 2)
GTY313725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
