DTC B1793: Occupant Classification Sensor Power Supply Circuit Malfunction: Wiring Diagram

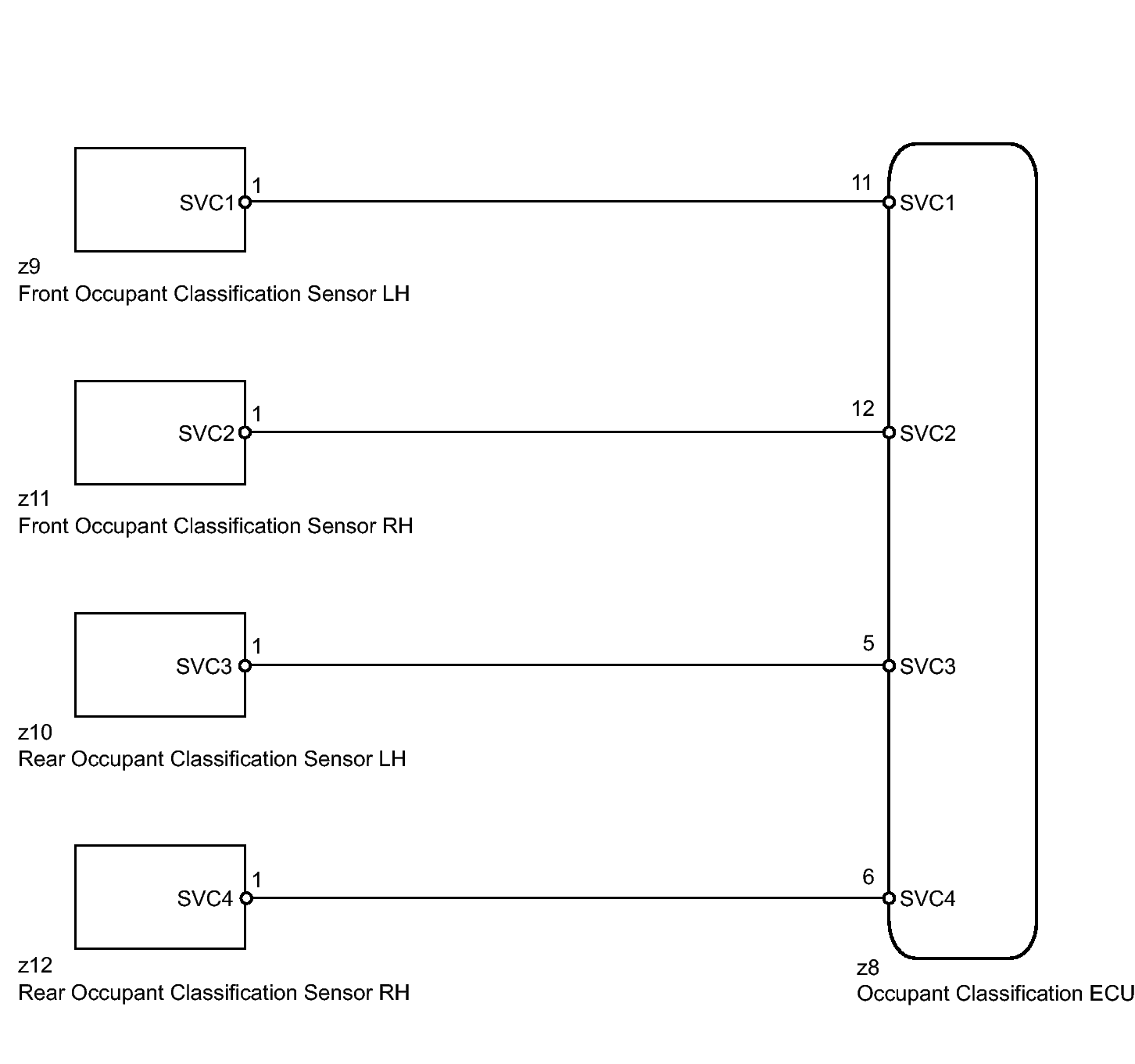

Fig 1: Rear Occupant Classification Sensor And ECU - Wiring Diagram
GTY157472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
