Transmission Control Cable: Components: Illustration

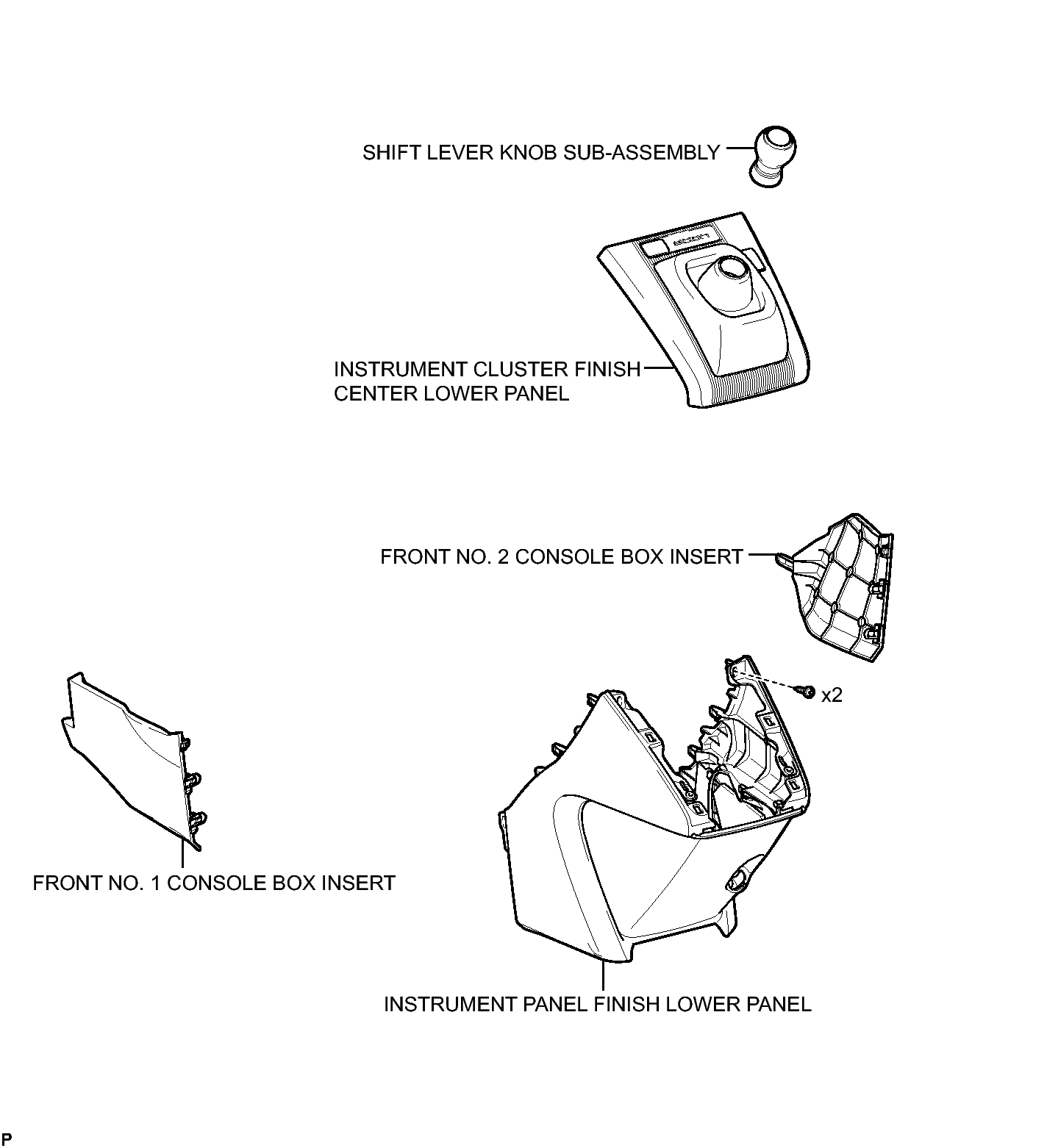

Fig 1: Identifying Transmission Control Cable Replacement Components (1 Of 4)
GTY164173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Transmission Control Cable Replacement Components With Torque Specifications (2 Of 4)
GTY310428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Transmission Control Cable Replacement Components With Torque Specification (3 Of 4)
GTY158188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

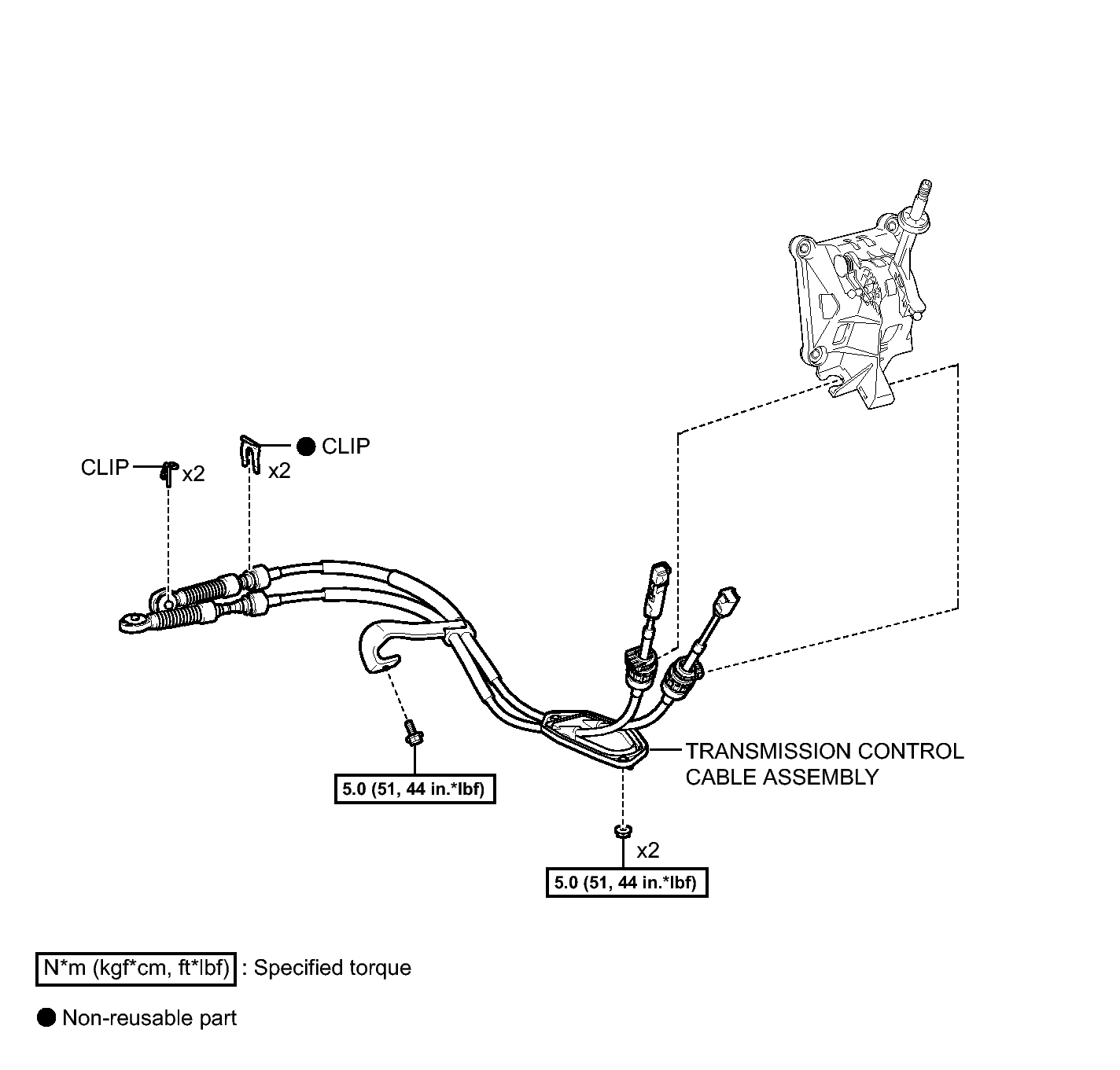

Fig 1: Identifying Transmission Control Cable Replacement Components With Torque Specification (4 Of 4)
GTY158187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
