Fuel Tank: Removal: Removal

REMOVE FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY
Refer to REMOVAL
DRAIN FUEL
DISCONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY
Refer to REMOVAL .
REMOVE NO. 2 CENTER EXHAUST PIPE ASSEMBLY
1. Remove the 4 bolts and 2 compression springs and remove the No. 2 center exhaust pipe assembly.

  Fig 1: Locating Center Exhaust Pipe Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR FLOOR SIDE MEMBER COVER RH
1. Remove the nut, grommet and 2 bolts, then remove the rear floor side member cover RH.

  Fig 2: Locating Rear Floor Side Member Cover RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR FLOOR SIDE MEMBER COVER LH
1. Remove the nut, grommet and 2 bolts, then remove the rear floor side member cover LH.

  Fig 3: Identifying Rear Floor Side Member Cover LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR FLOOR SIDE MEMBER BRACE SUB-ASSEMBLY . Refer to REMOVAL - Step 7
REMOVE NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY
1. Remove the 3 bolts, the nut, and then remove the No. 1 fuel tank protector sub-assembly.

  Fig 4: Locating Fuel Tank Protector Sub-Assembly And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
1. Release the lock as shown in the illustration, then pull and remove the fuel tank main tube.

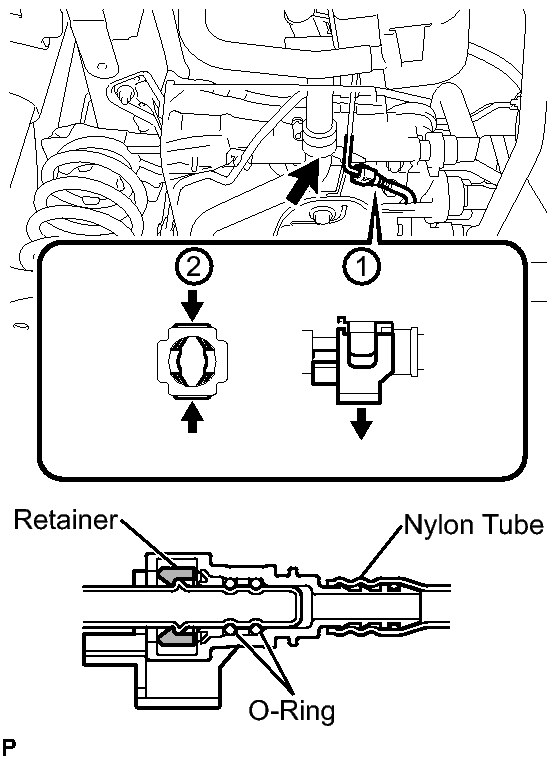

  Fig 5: Identifying Fuel Tank Main Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Remove any dirt and foreign matter from the clip before performing this work.
  - Avoid getting any scratches or foreign matter on the parts when disconnecting, as the quick connector has an O-ring that seals the plug.
  - Perform this work by hand. Do not use any tools.
  - Do not forcibly bend, twist or turn the nylon tube.
  - Protect the disconnected parts by covering them with a plastic bag.
  - If the connector and pipe are stuck, disconnect the nylon tube by turning it by hand to release it.
DISCONNECT FUEL TANK TO FILLER PIPE HOSE
1. Disconnect the fuel tank to filler pipe hose.

  Fig 6: Locating Clamp Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT NO. 6 FUEL TANK BREATHER TUBE
1. Release the lock as shown in the illustration, then pull and remove the No. 6 fuel tank breather tube.

  Fig 7: Identifying Fuel Tank Breather Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Remove any dirt and foreign matter from the clip before performing this work.
  - Avoid getting any scratches or foreign matter on the parts when disconnecting, as the quick connector has an O-ring that seals the plug.
  - Perform this work by hand. Do not use any tools.
  - Do not forcibly bend, twist or turn the nylon tube.
  - Protect the disconnected parts by covering them with a plastic bag.
  - If the connector and pipe are stuck, disconnect the nylon tube by turning it by hand to release it.
REMOVE FUEL TANK ASSEMBLY
1. Remove the 2 bolts and separate the parking brake cable assembly.

  Fig 8: Identifying Parking Brake Cable Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Set the mission jack under the fuel tank.

  Fig 9: Identifying Fuel Tank Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 4 bolts and remove the fuel tank assembly.
REMOVE FUEL TANK CUSHION
1. Remove the No. 1 fuel tank cushion and 3 No. 2 fuel tank cushions.

  Fig 10: Identifying & Installing No. 1 & 3 No. 2 Fuel Tank Cushion
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL TANK MAIN TUBE SUB-ASSEMBLY
1. Remove the fuel tank main tube sub-assembly from the fuel tank.

  Fig 11: Identifying & Installing Fuel Tank Main Tube Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
