Engine Unit: Removal: Removal

HINT:

Check whether the engine is TMC made or not by referring to the following illustration.

Fig 1: Identifying Whether The Engine Is TMC Made
GTY314451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION

*A for TMC Made Engine *B except TMC Made Engine
*1 Engine Oil Level Dipstick Guide *2 Water Inlet Housing
*3 Water Inlet Housing Drain Cock Assembly - -
  1. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY  . Refer to REMOVAL - Step 6
  2. REMOVE FUEL INJECTOR ASSEMBLY  . Refer to REMOVAL - Step 7
  3. DISCONNECT NO. 2 VENTILATION HOSE  . Refer to REMOVAL - Step 5

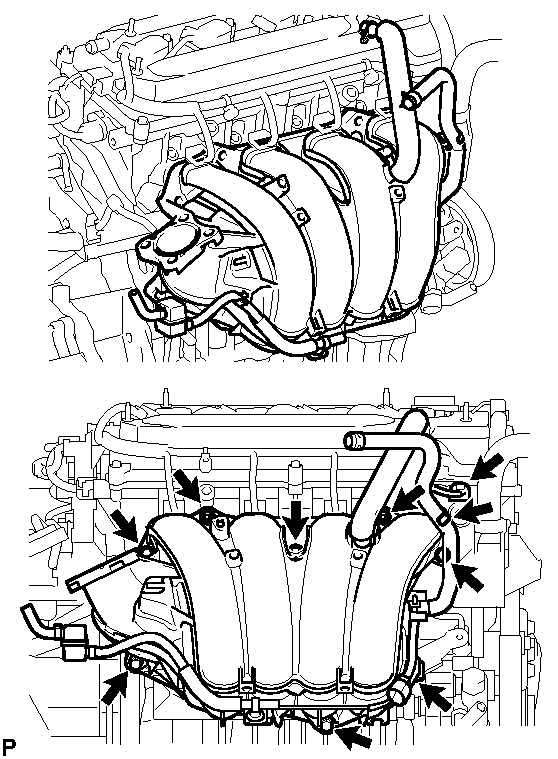

  4. REMOVE INTAKE MANIFOLD
    Fig 2: Location of Intake Manifold Components
    GTY313140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the camshaft timing oil control valve connector.
    2. Remove the wire harness clamp.
    3. Remove the 5 bolts, 2 nuts and intake manifold.
    4. Remove the gasket from the intake manifold.
      Fig 3: Location of Intake Manifold Gasket
      GTY161847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 1 INTAKE MANIFOLD INSULATOR  . Refer to REMOVAL - Step 17
  6. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    1. Remove the 4 bolts and No. 1 exhaust manifold heat insulator.
      Fig 4: Location of No. 1 Exhaust Manifold Heat Insulator Bolts
      GTY161620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE MANIFOLD STAY
    Fig 5: Location of Stay With Bolt And Nut
    GTY162759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt and nut, then remove the manifold stay.
  8. REMOVE NO. 2 MANIFOLD STAY
    Fig 6: Location of Manifold Stay Bolt And Nut
    GTY162559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt and nut, then remove the No. 2 manifold stay.

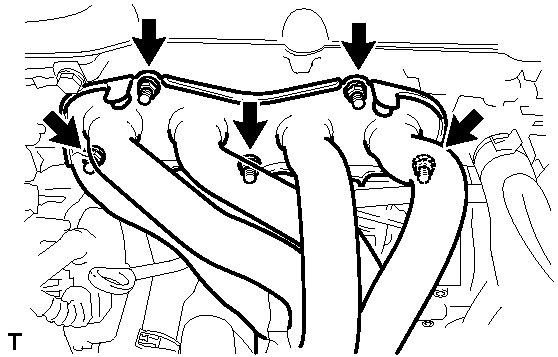

  9. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY
    1. Remove the 5 nuts and exhaust manifold converter.
      Fig 7: Removing Nuts Manifold Converter And Gasket
      GTY162550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket.
  10. REMOVE IDLER PULLEY SUB-ASSEMBLY  See step  42
  11. REMOVE INLET WATER  . Refer to REMOVAL - Step 4
  12. REMOVE THERMOSTAT
  13. REMOVE TRANSVERSE ENGINE MOUNTING BRACKET  See step  47
  14. REMOVE OIL DIPSTICK

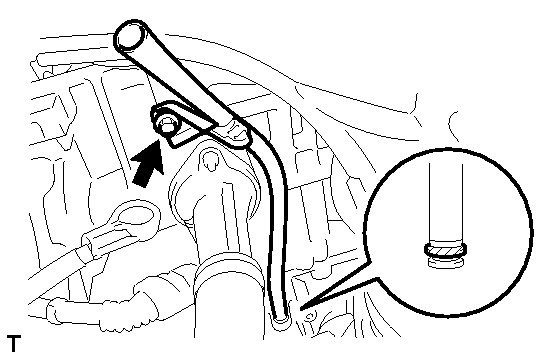

  15. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE (for TMC Made Engine)
    Fig 8: Location of Oil Level Gauge Guide
    GTY162296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt and engine oil level dipstick guide.
    2. Remove the O-ring from the engine oil level dipstick guide.

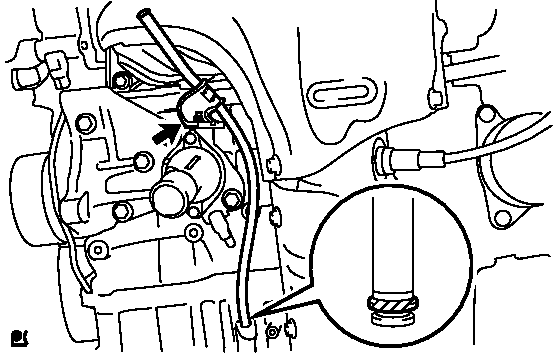

  16. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE (except TMC Made Engine)
    Fig 9: Identifying Engine Oil Dipstick Guide (Except TMC Made Engine)
    GTY313680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt and engine oil level dipstick guide.
    2. Remove the O-ring from the engine oil level dipstick guide.

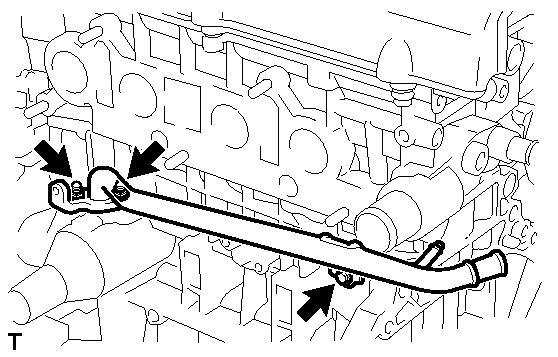

  17. REMOVE NO. 1 WATER BY-PASS PIPE (for TMC Made Engine)
    1. Remove the bolt and 2 nuts, then remove the No. 1 water by-pass pipe.
      Fig 10: Location of No. 1 Water By-Pass Pipe Bolt And Nuts
      GTY287967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket.

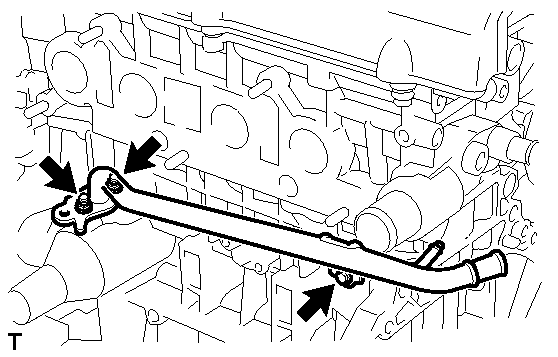

  18. REMOVE NO. 1 WATER BY-PASS PIPE (except TMC Made Engine)
    1. Remove the bolt and 2 nuts, then remove the No. 1 water by-pass pipe.
      Fig 11: Location of No. 1 Water By-Pass Pipe Bolts And Nuts
      GTY314619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket.
  19. REMOVE IGNITION COIL ASSEMBLY  . Refer to REMOVAL - Step 2
  20. REMOVE KNOCK SENSOR  . Refer to REMOVAL - Step 18
  21. REMOVE OIL PRESSURE SWITCH  . Refer to REMOVAL - Step 1
  22. REMOVE ENGINE COOLANT TEMPERATURE SENSOR  . Refer to REMOVAL - Step 3
  23. REMOVE RADIO SETTING CONDENSER

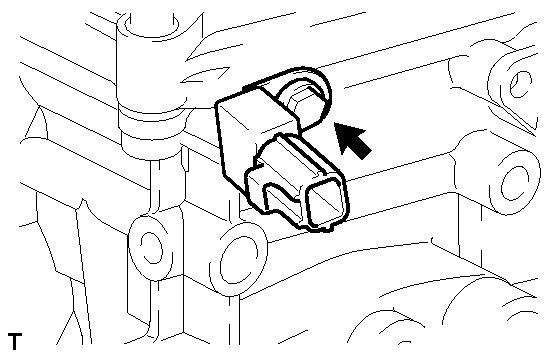

    1. Remove the bolt and radio setting condenser.
      Fig 12: Location of Radio Setting Condenser Bolt
      GTY161630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
