Drive Belt: Installation: Installation

  1. INSTALL FAN AND GENERATOR V BELT

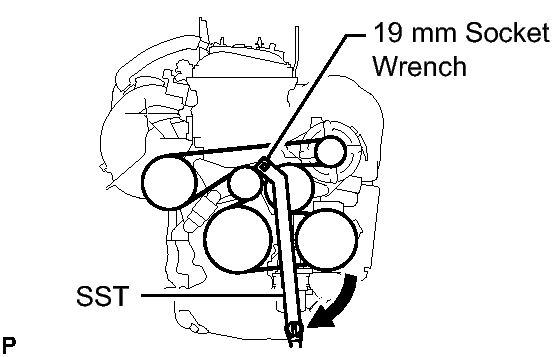

    Fig 1: Fan And Generator V Belt Routing
    GTY165859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using SST and 19 mm socket wrench, loosen the V-ribbed belt tensioner arm clockwise, then install the fan and generator V belt.
      • SST: 09216-42010
        1. 09216-04010
      NOTE:
      • Be sure to connect SST and the tools so that they are in line during use.
      • When retracting the tensioner, turn it clockwise slowly for 3 seconds or more. Do not apply force rapidly.
      • After the tensioner is fully retracted, do not apply any more force than is necessary.
  2. INSTALL REAR ENGINE UNDER COVER RH
