Cylinder Block: Components: Illustration

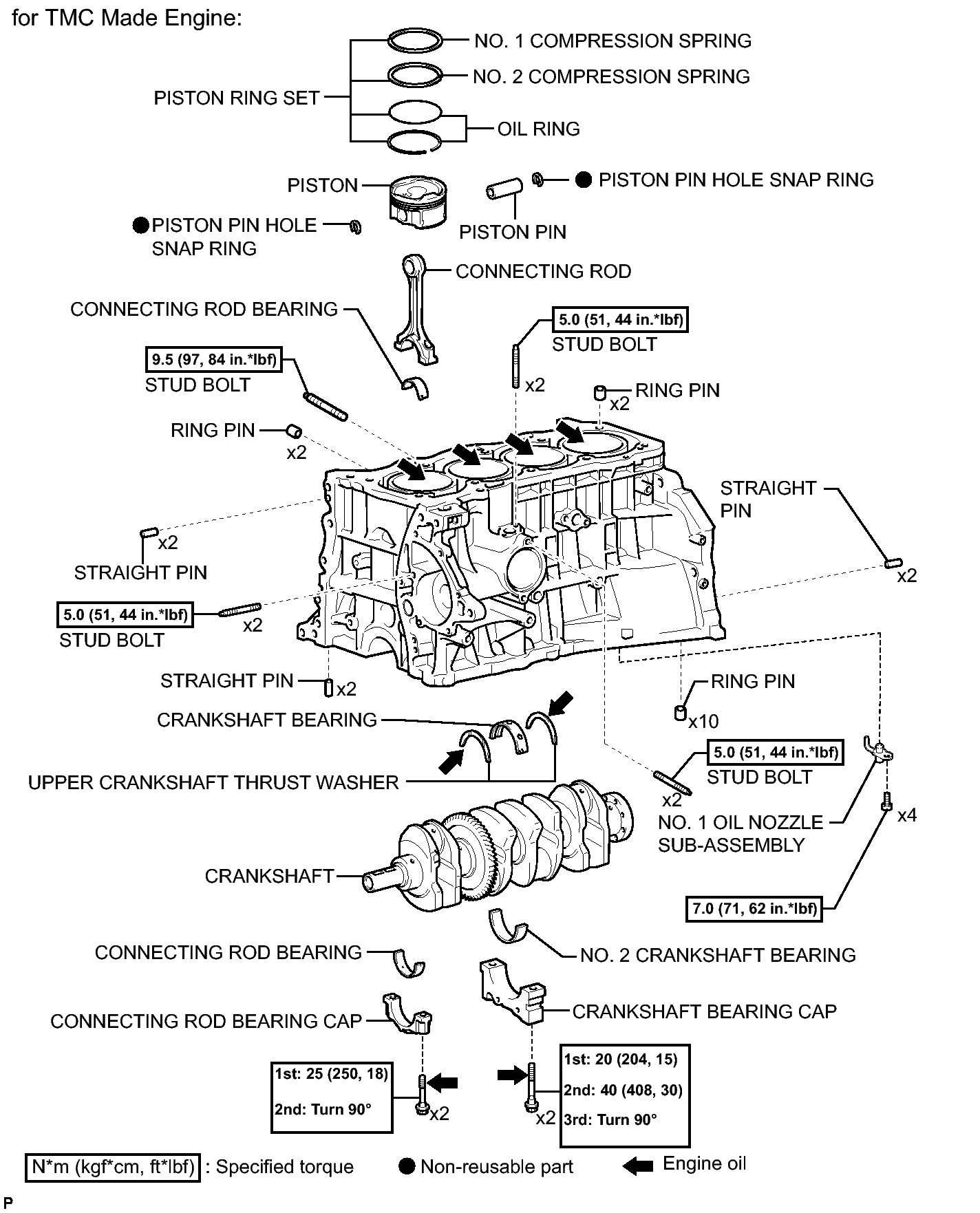

Fig 1: Identifying Cylinder Block Replacement Components With Torque Specifications (1 Of 2)
GTY312103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

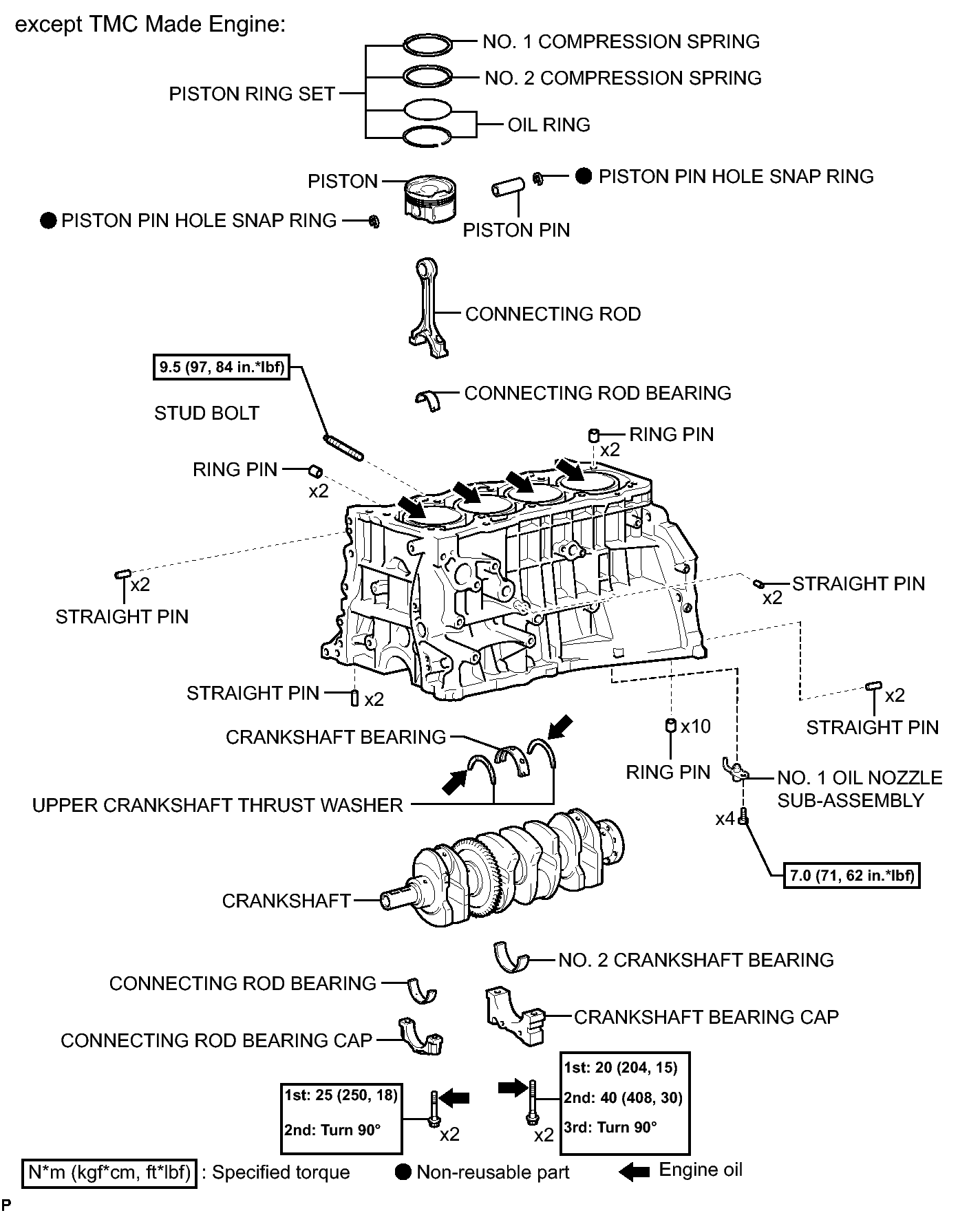

Fig 1: Identifying Cylinder Block Replacement Components With Torque Specifications (2 Of 2)
GTY312946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
