UNDERDRIVE Planetary Gear: Components: Illustration

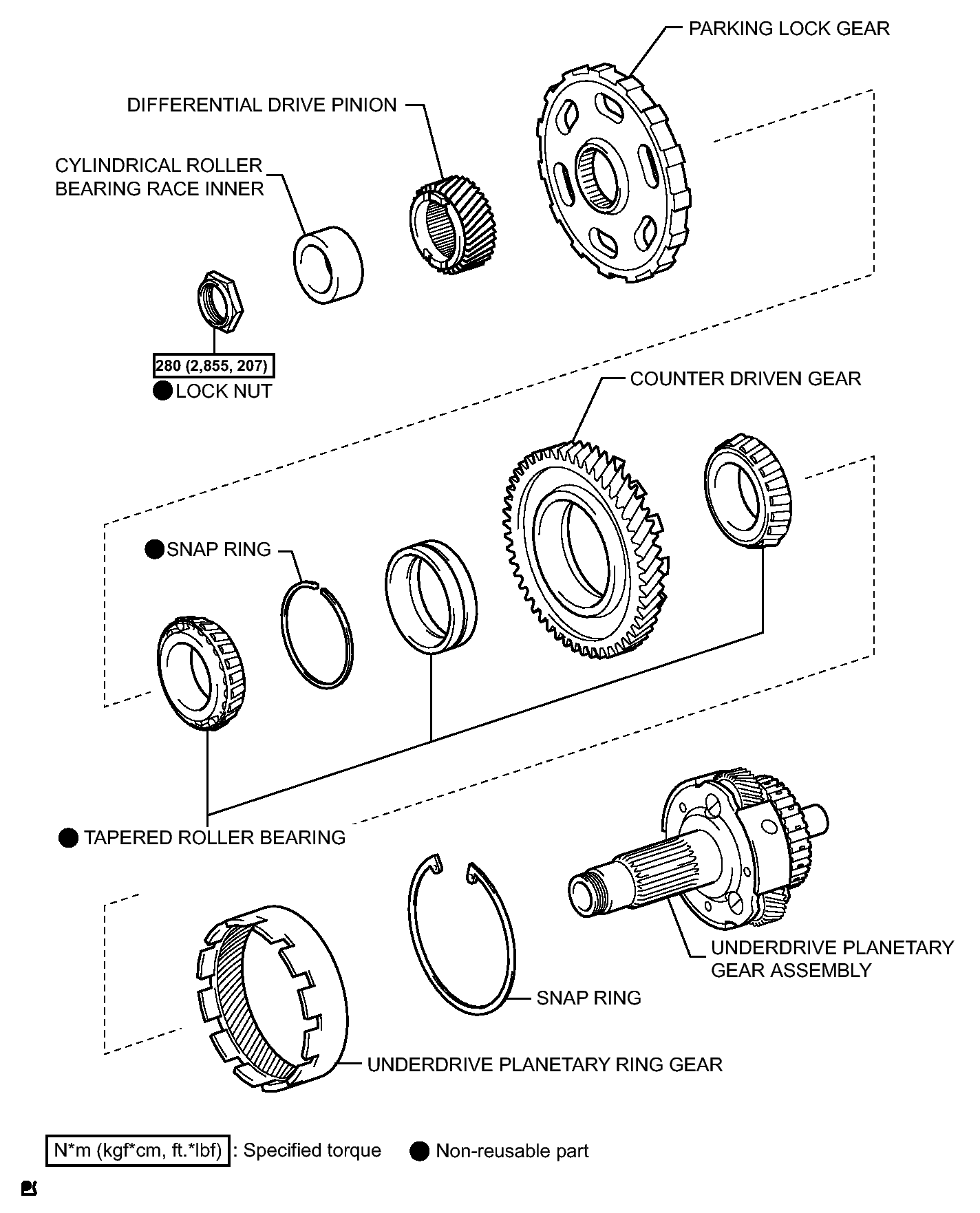

Fig 1: Identifying Underdrive Planetary Gear Replacement Components And Torque Specification

GTY158738

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
