Transmission Wire: Components: Illustration

Fig 1: Identifying Transmission Wire Replacement Components (1 of 2)
GTY311490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

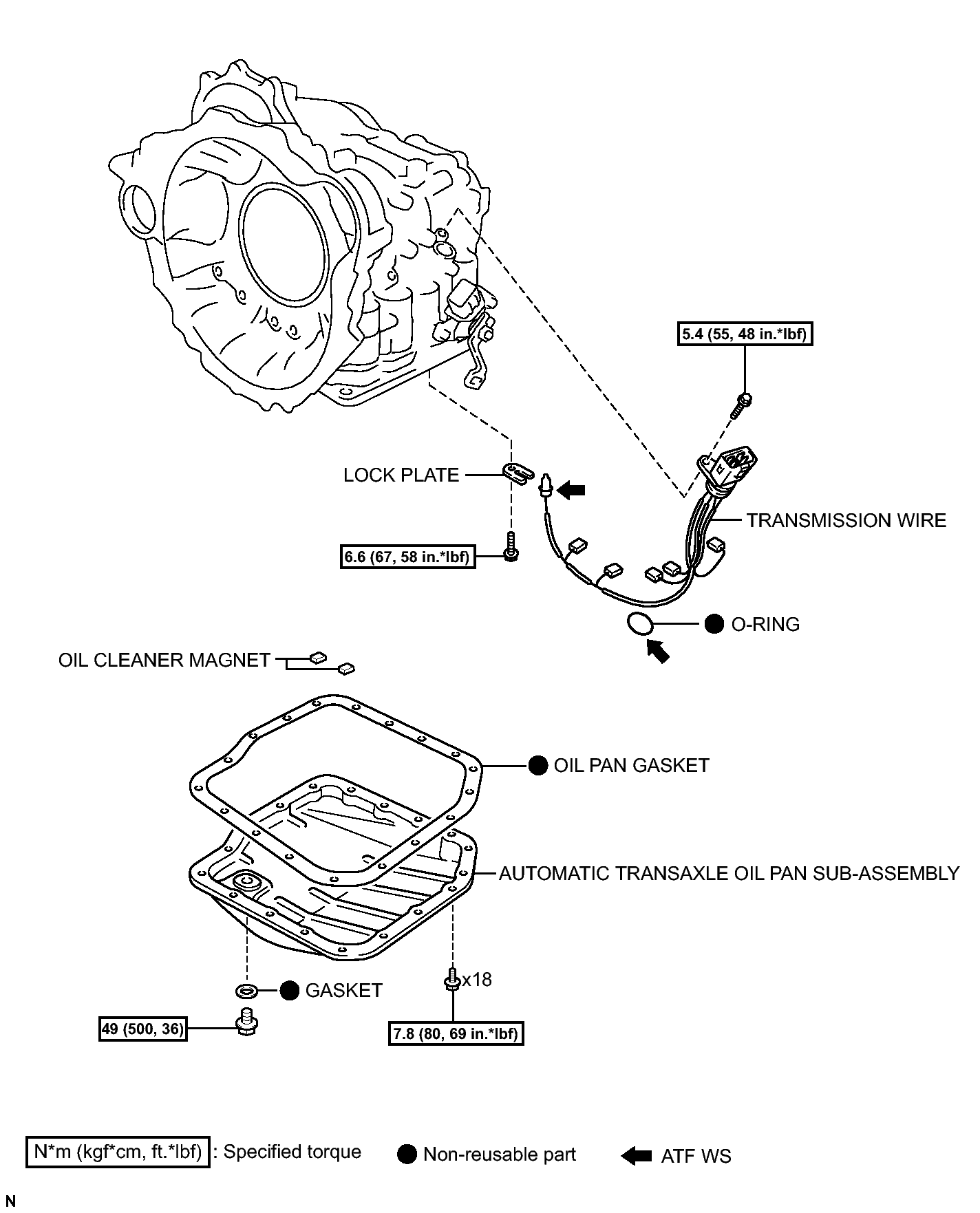

Fig 1: Identifying Transmission Wire Replacement Components With Torque Specifications (2 of 2)
GTY312021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
