Park / Neutral Position Switch: Components: Illustration

Fig 1: Identifying Park / Neutral Position Switch Replacement Components With Torque Specifications (1 of 2)
GTY310553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

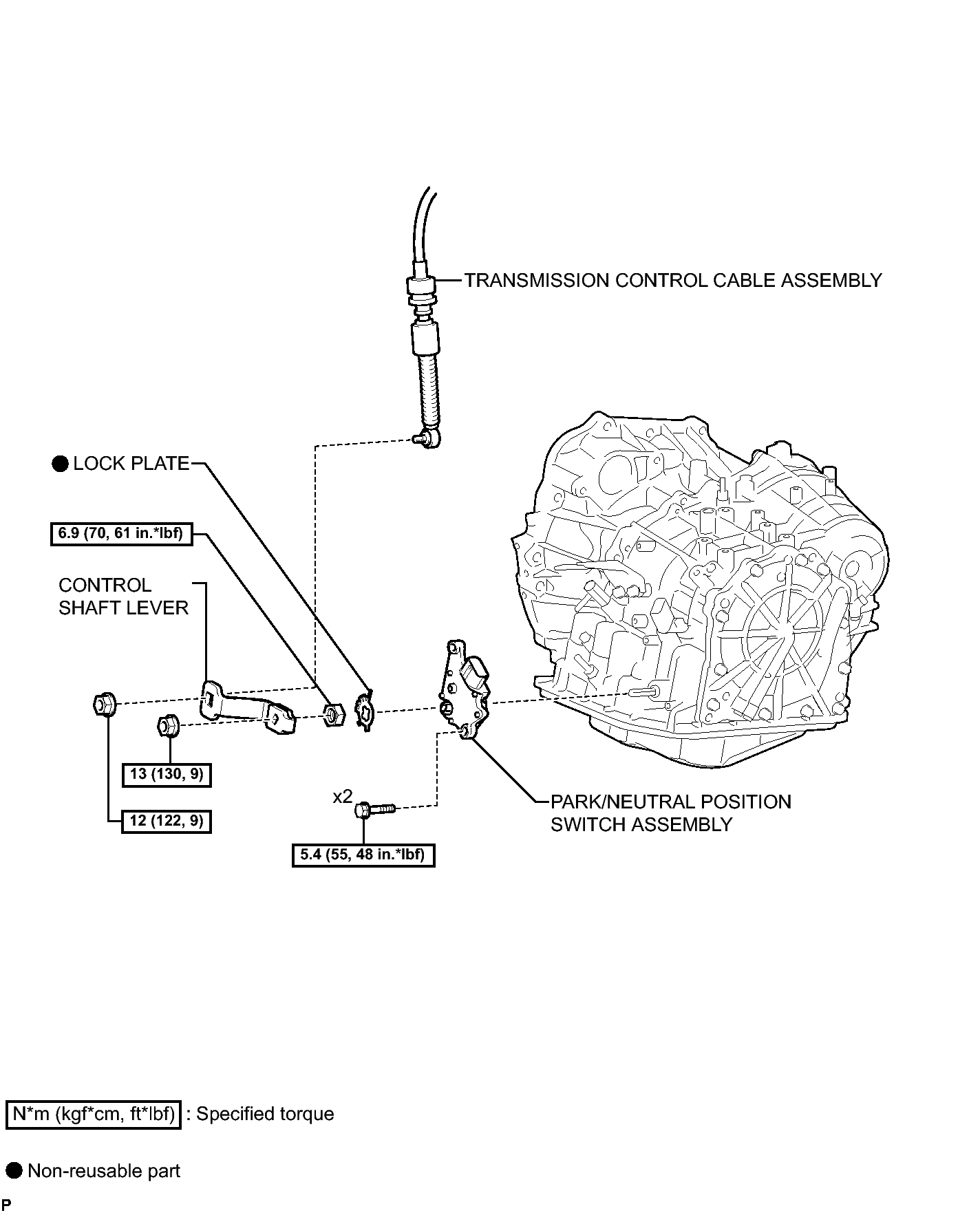

Fig 1: Identifying Park / Neutral Position Switch Replacement Components With Torque Specifications (2 of 2)
GTY312143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
