Forward Clutch: Components: Illustration

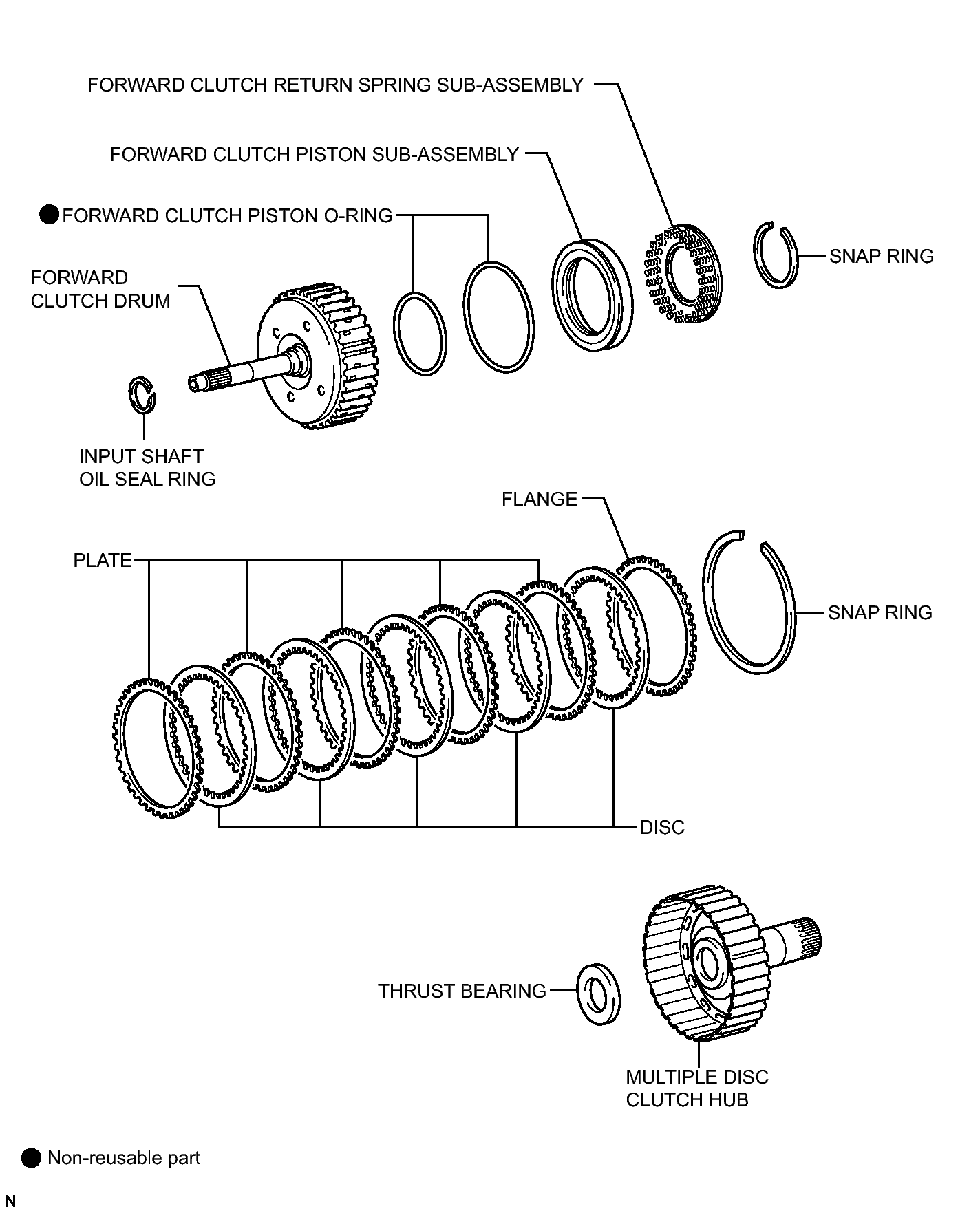

Fig 1: Identifying Forward Clutch Replacement Components

GTY158736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
