Differential Case: Components: Illustration

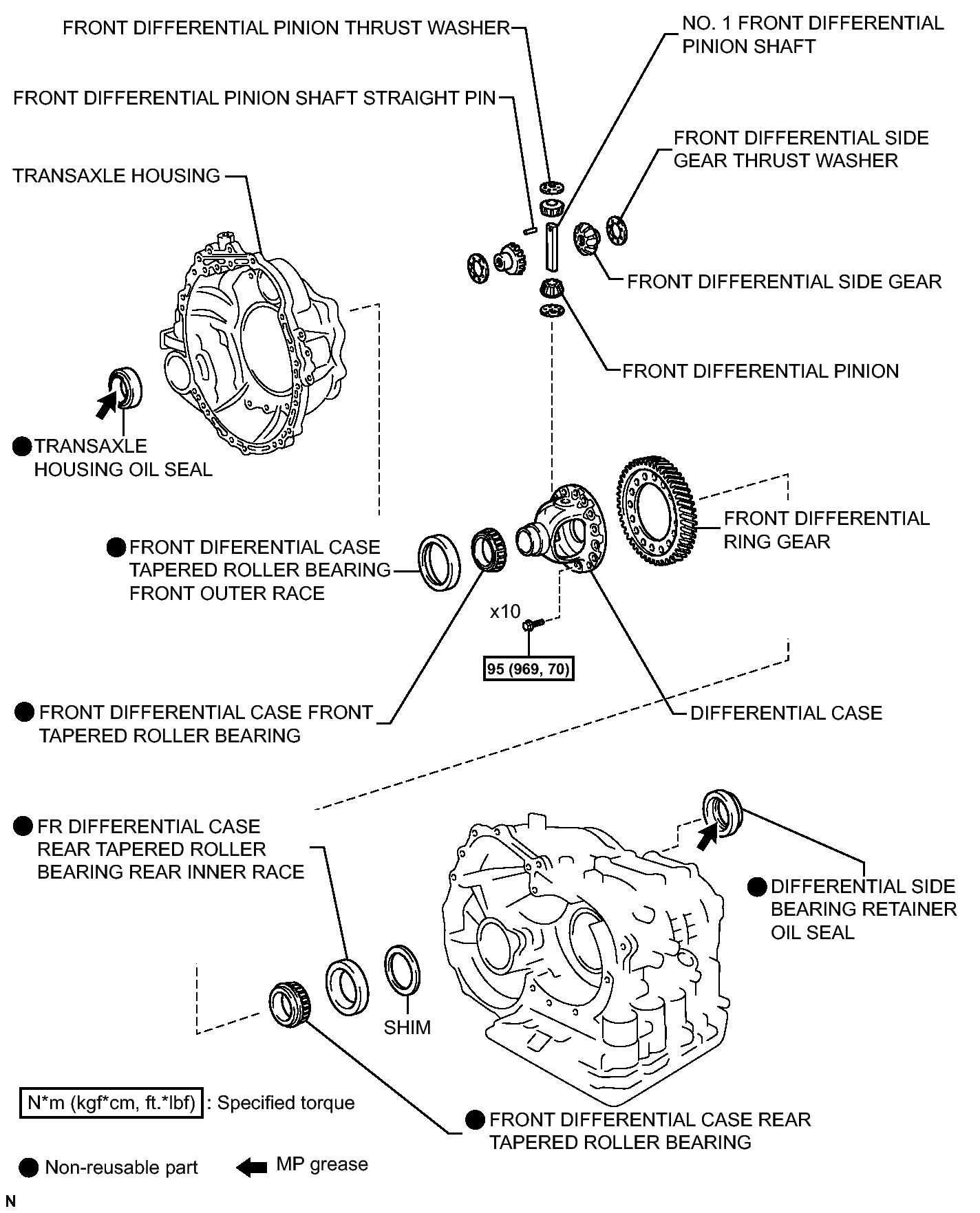

Fig 1: Identifying Differential Case Replacement Components With Torque Specifications

GTY312267

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
