Fuel Pressure Pulsation Damper: Components: Illustration

Fig 1: Identifying Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications (1 Of 2)
GTY311556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

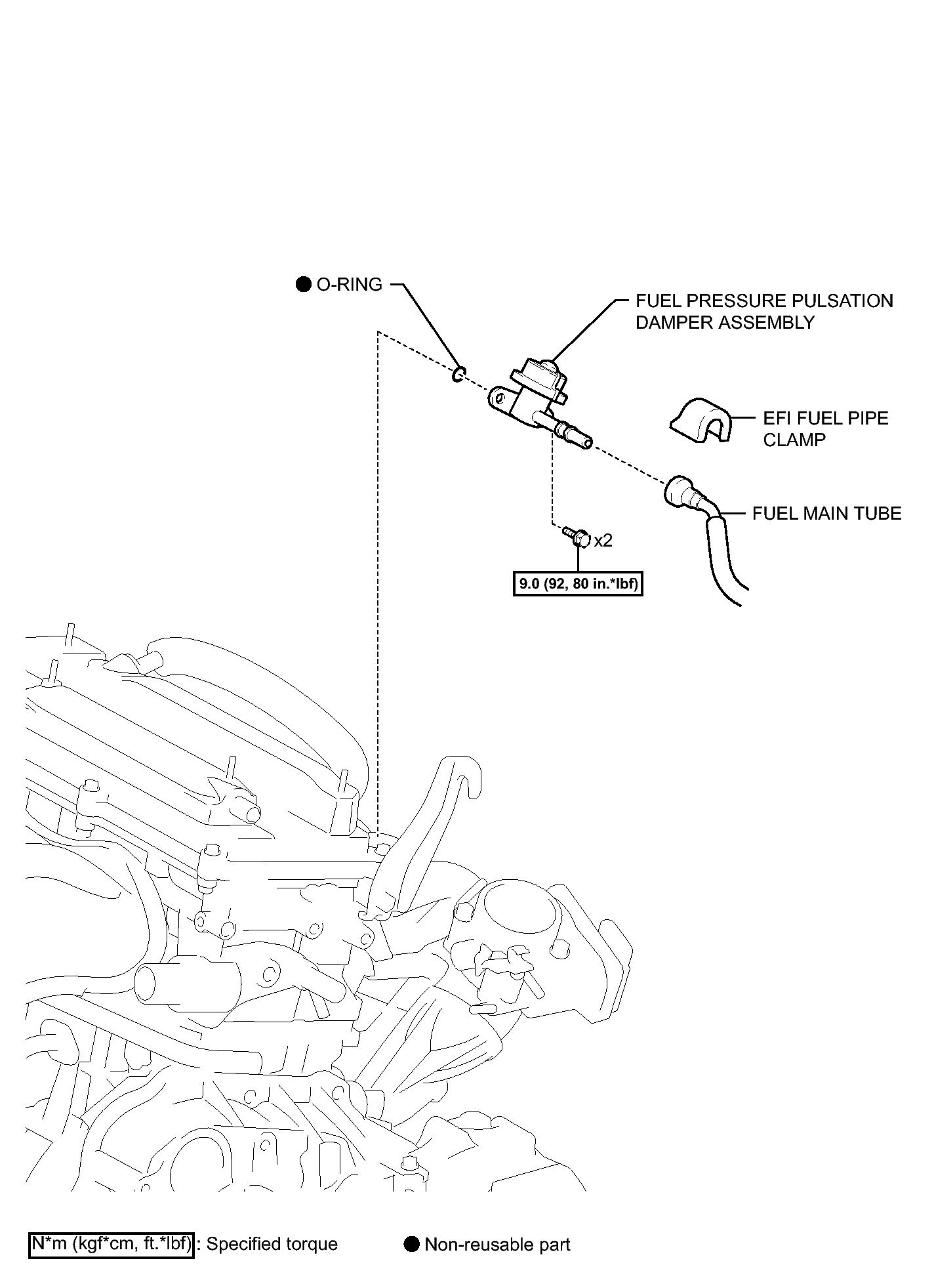

Fig 2: Identifying Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications (2 Of 2)
GTY311597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
