Transmission Control Cable: Components: Illustration

Fig 1: Identifying Transmission Control Cable Replacement Components With Torque Specifications (1 Of 2)
GTY312166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

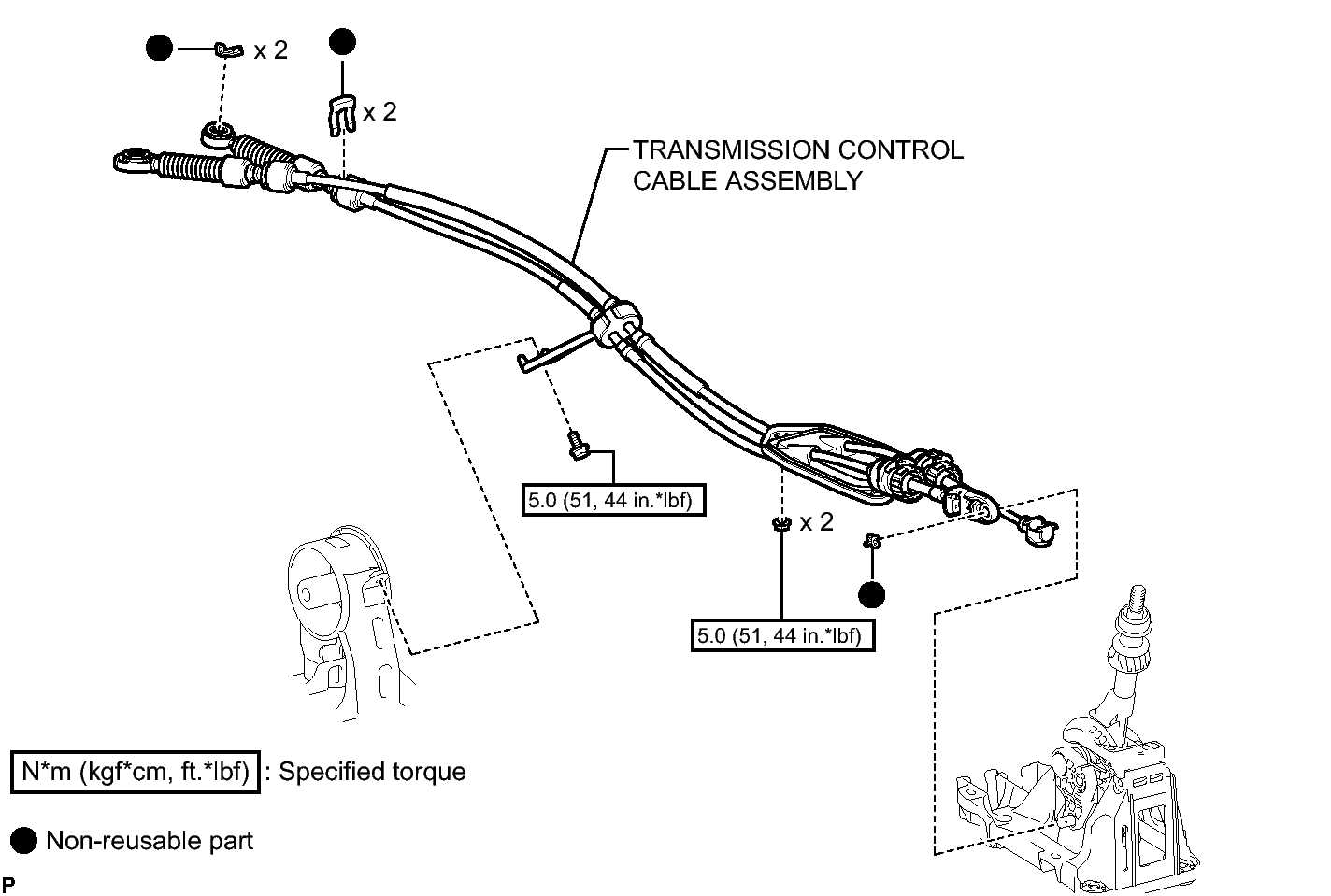

Fig 1: Identifying Transmission Control Cable Replacement Components With Torque Specifications (2 Of 2)
GTY313691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
